Lexmark MX911dte - Sensor (ADF Scan Shaft Home) Removal

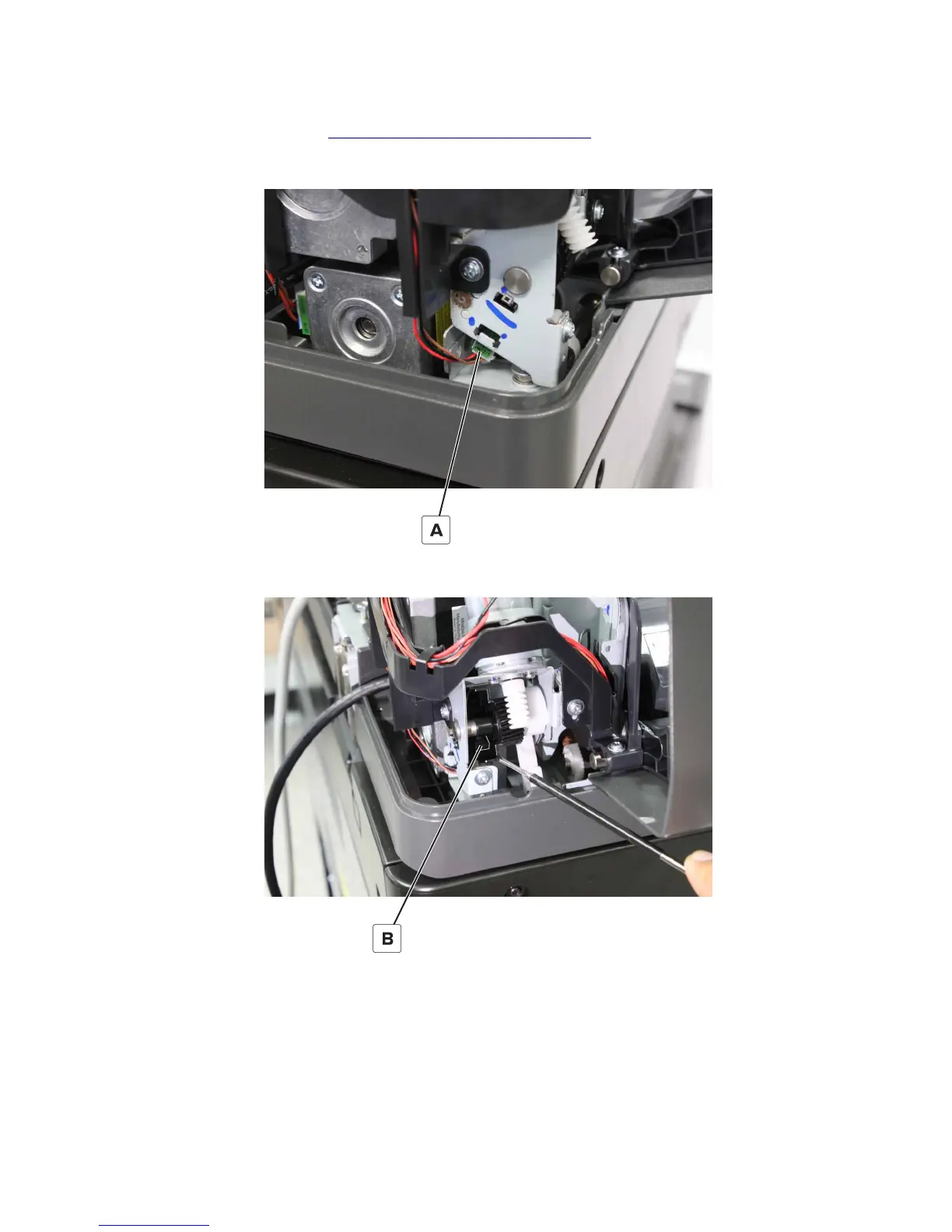

Sensor (ADF scan shaft home) removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 410.
2 Disconnect the cable (A).
3 Rotate the gear until the sensor (B) is unblocked, and then remove the sensor.
7421
Repair information
417
