Motor (duplex transport) removal
1 Remove the duplex transport assembly. See “Duplex transport assembly removal” on page 285.

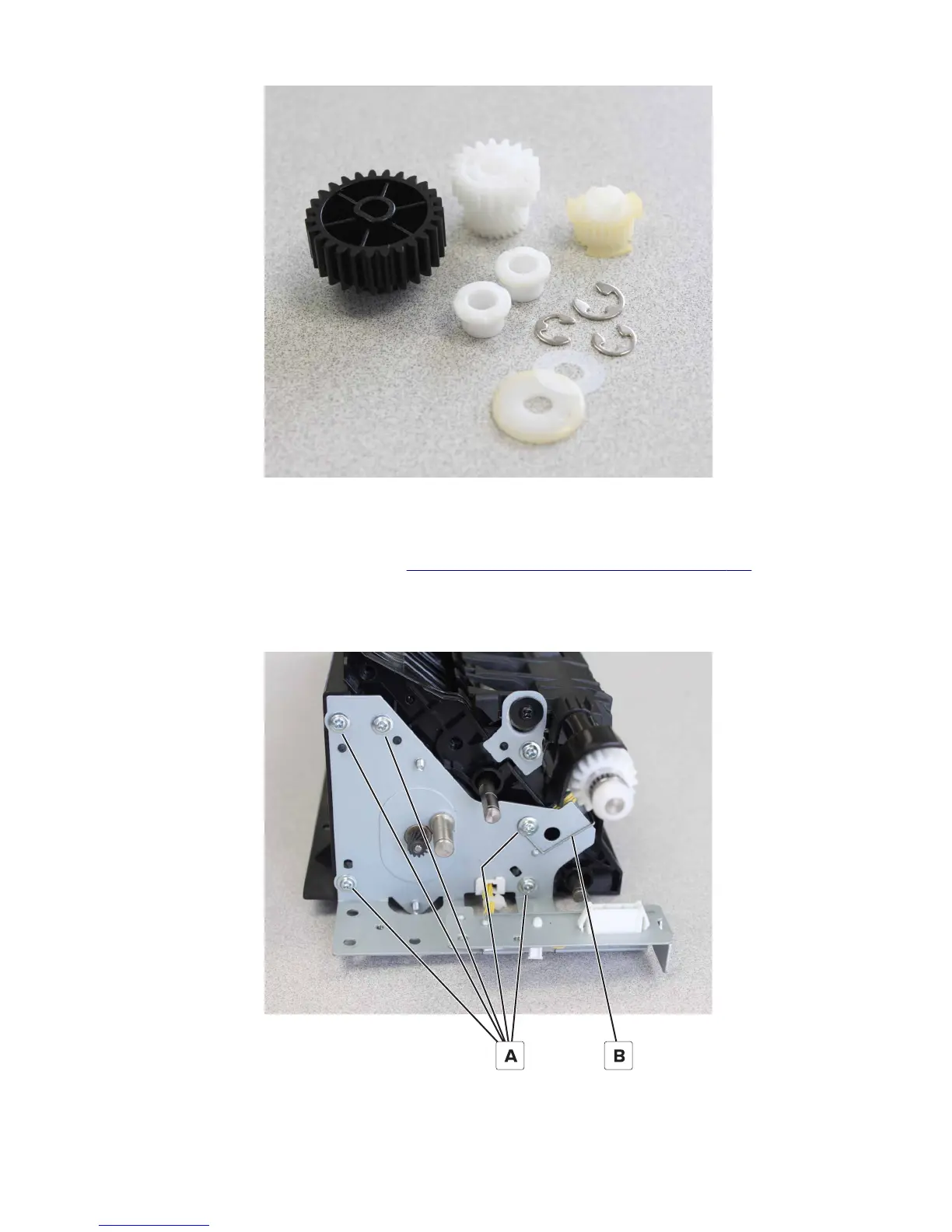

2 Remove the five screws (A).
Note: Take note of the original position of the retainer (B).
7421
Repair information
293
