Lexmark MX911dte - 2500-Sheet Tray Rear Right Cover Removal; 2500-Sheet Tray Division Board Removal

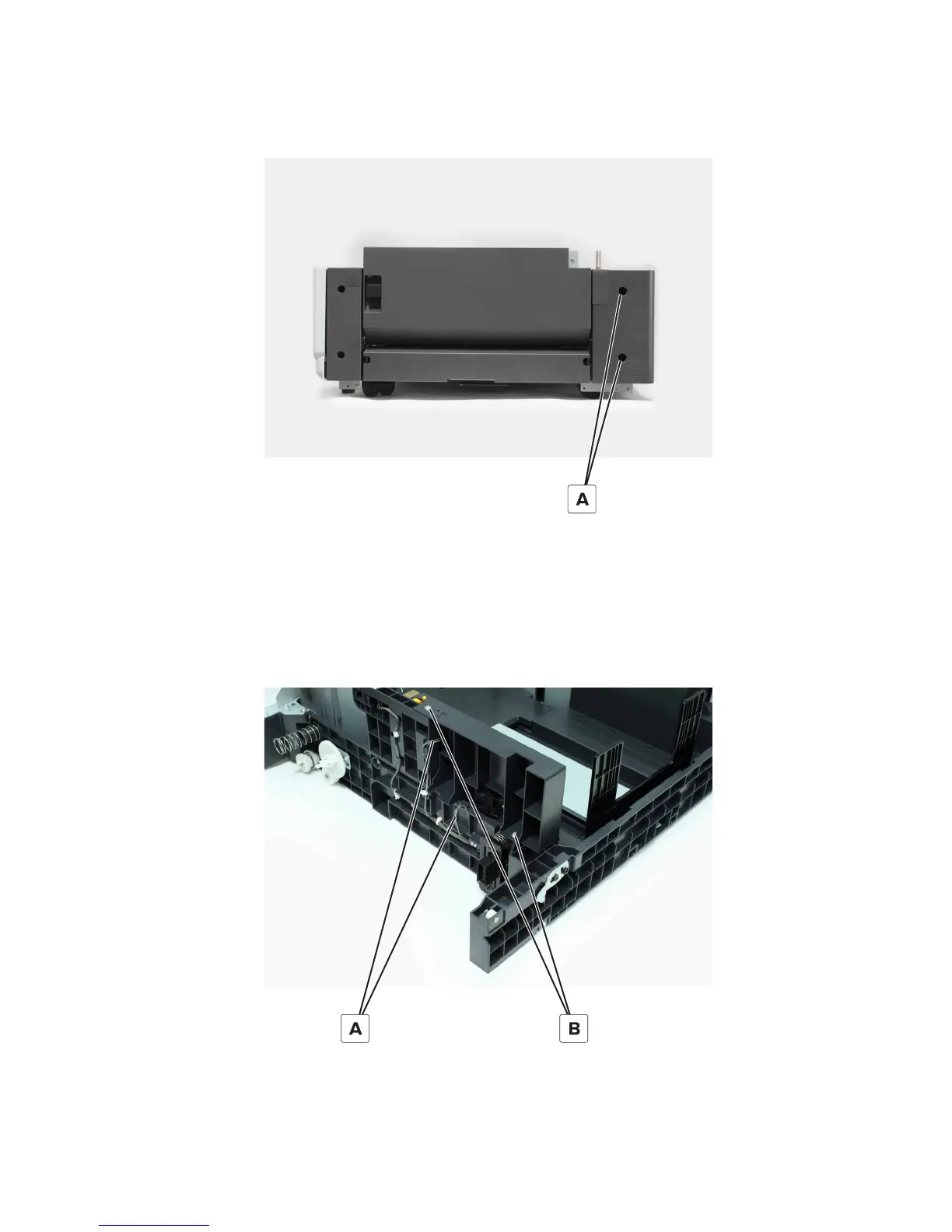

2500-sheet tray rear right cover removal
1 Remove the two screws (A).
2 Remove the cover.
2500‑sheet tray division board removal
1 Remove the tray insert.
2 Disconnect the two cables (A), and then remove the two screws (B).
