Sensor (2500‑sheet tray elevator home) removal
1 Remove the tray insert.
2 Remove the 2500-sheet tray elevator home sensor actuator. See “2500‑sheet tray elevator home sensor actuator
removal” on page 449.

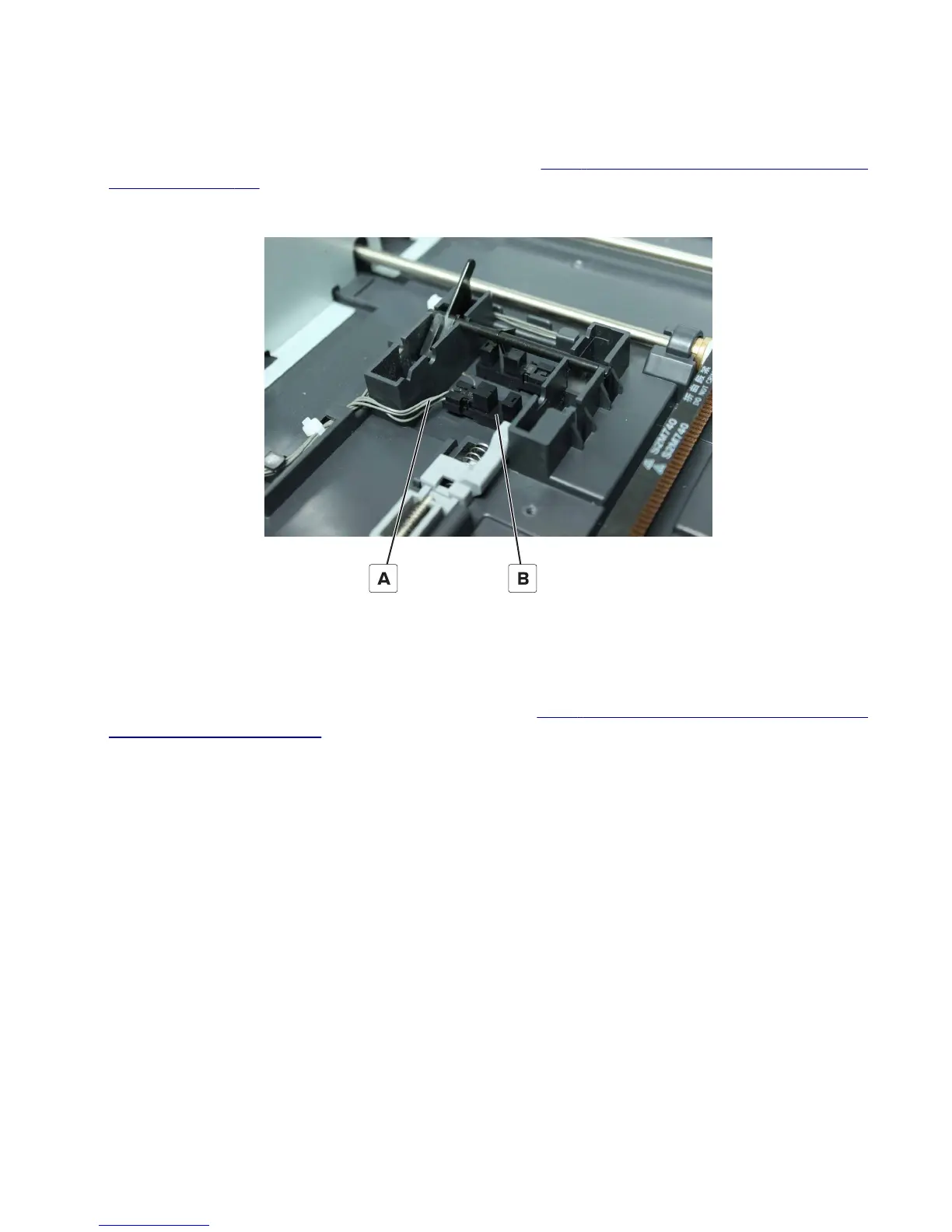

3 Disconnect the cable (A), and then remove the sensor (B).
Sensor (2500‑sheet tray main tray empty, bottom) removal
1 Remove the tray insert.
2 Remove the 2500‑sheet tray empty sensor bottom actuator. See “2500‑sheet tray main tray empty sensor bottom
actuator removal” on page 448.
7421
Repair information
465
