MPF feed/separator assembly
1 Remove the tray 2 transport guide. See “Tray 2 transport guide” on page 296.
2 Remove the MPF. See “MPF removal” on page 297.

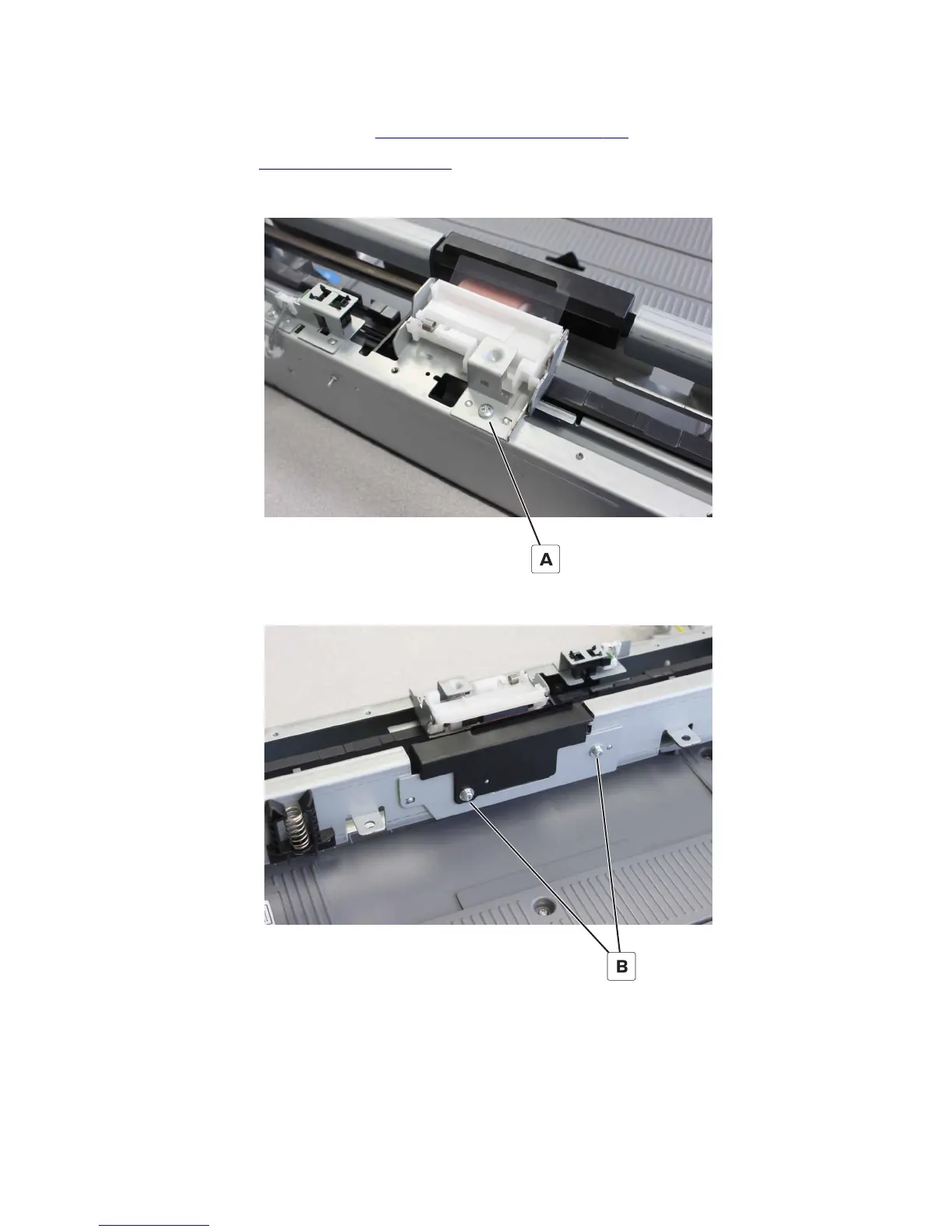

3 Remove the screw (A), remove the bracket, and then remove the separator spring.
4 Remove the two screws (B), and then remove the cover and bracket.
5 Remove the separator roller.
Note: The MPF feed/separator assembly includes the pick roller, separator roller, spring, and bushing.
7421
Repair information
306
