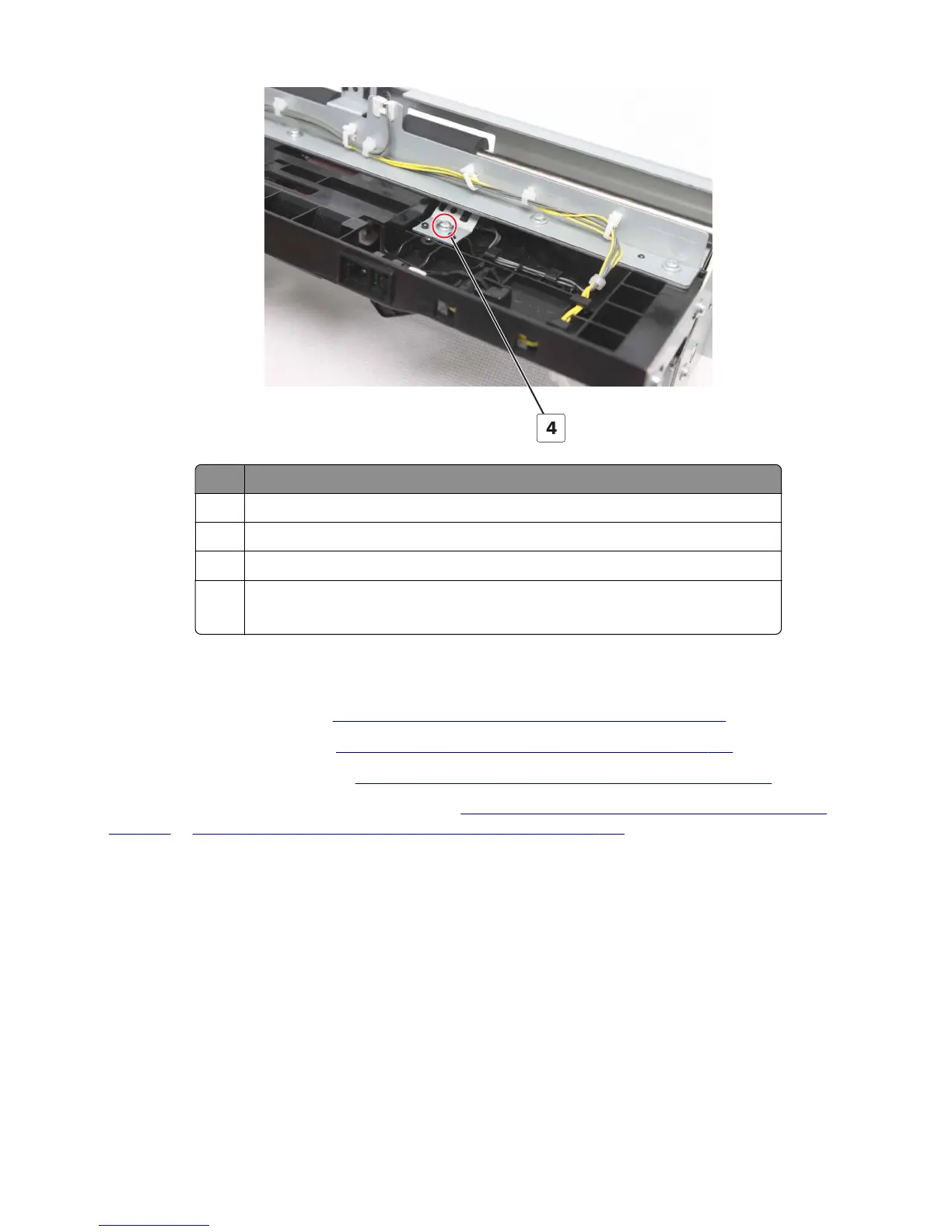

# Part
1 2 x 500-sheet tray empty sensor actuator
2 Sensor (2 x 500-sheet tray empty)
3 Sensor (2 x 500-sheet tray lift plate level)
4 Sensor (2 x 500-sheet tray feed)
Note: Remove the screw, remove the sensor bracket, and then remove the sensor.
2 x 500‑sheet tray tray set actuator removal
1 Remove the rear right cover. See “2 x 500-sheet tray rear right cover removal” on page 489.
2 Remove the jam access door. See “2 x 500-sheet tray jam access door removal” on page 488.
3 Remove the bottom right cover. See “2 x 500-sheet tray bottom right cover removal” on page 490.
4 Remove the tray 3 or tray 4 transport assembly. See “2 x 500-sheet tray 3 transport assembly removal” on
page 490 or “2 x 500-sheet tray 4 transport assembly removal” on page 491.
5 Release the spring (A).
7421
Repair information
493
