ADF left hinge removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 391.

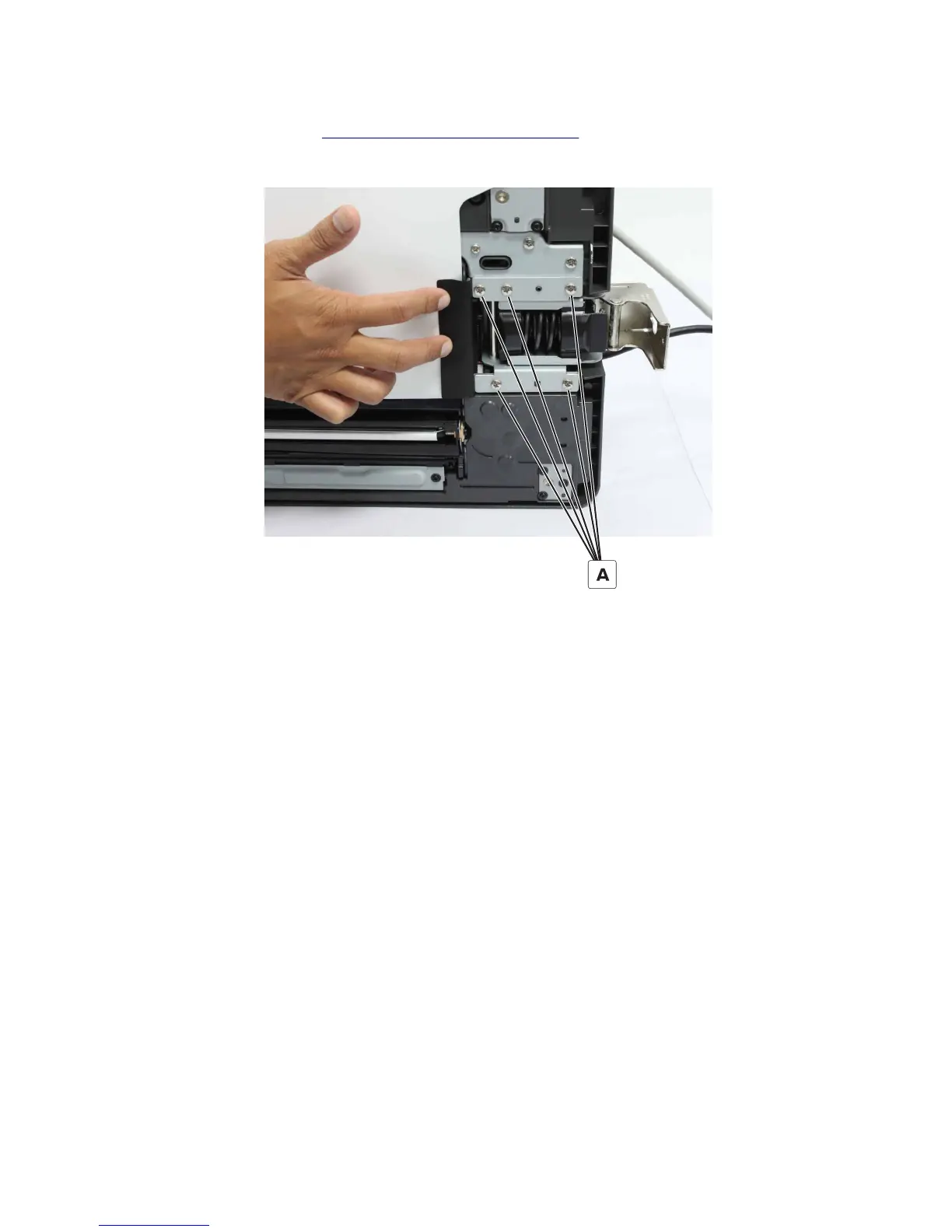

2 Remove the five screws (A) securing the left hinge.
3 Remove the hinge.
7421
Repair information
406
