Lexmark MX911dte - Scanner Controller Board Removal; Scanner Glass Removal

7 Remove the scanner CCD lens assembly.
Scanner controller board removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 391.
2 Remove the scanner rear cover. See “Scanner rear cover removal” on page 430.

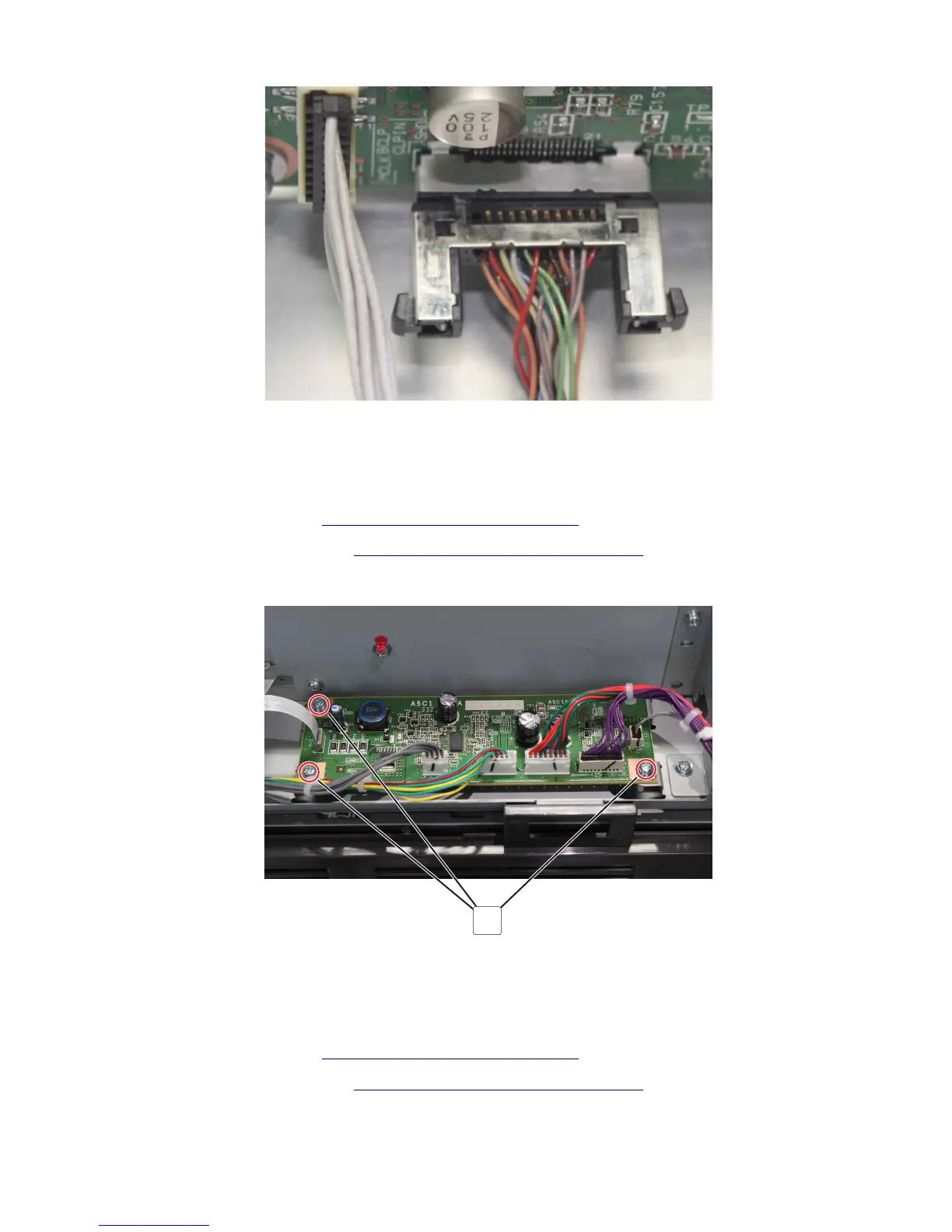

3 Disconnect the connectors, and then remove the three screws (A).
A
4 Remove the board.
Scanner glass removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 391.
2 Remove the scanner rear cover. See “Scanner rear cover removal” on page 430.
7421
