Lexmark MX911dte - Registration Transport Assembly

Registration transport assembly
1 Remove the fuser. See “Fuser removal” on page 279.

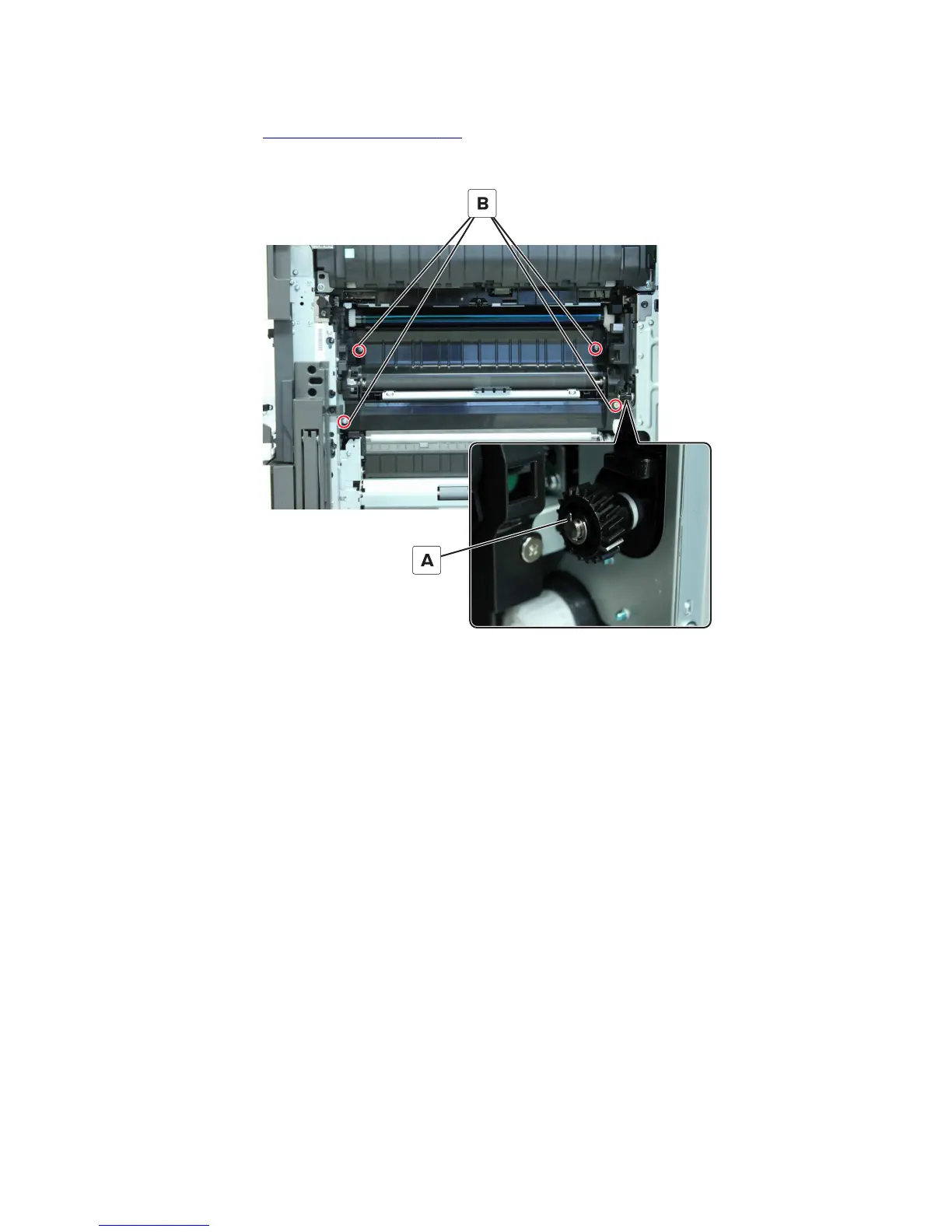

2 Remove the clip (A), and then remove the gear. Remove the four screws (B).
3 Disconnect the cables from the image controller board, and then remove the assembly.
7421
Repair information
282
