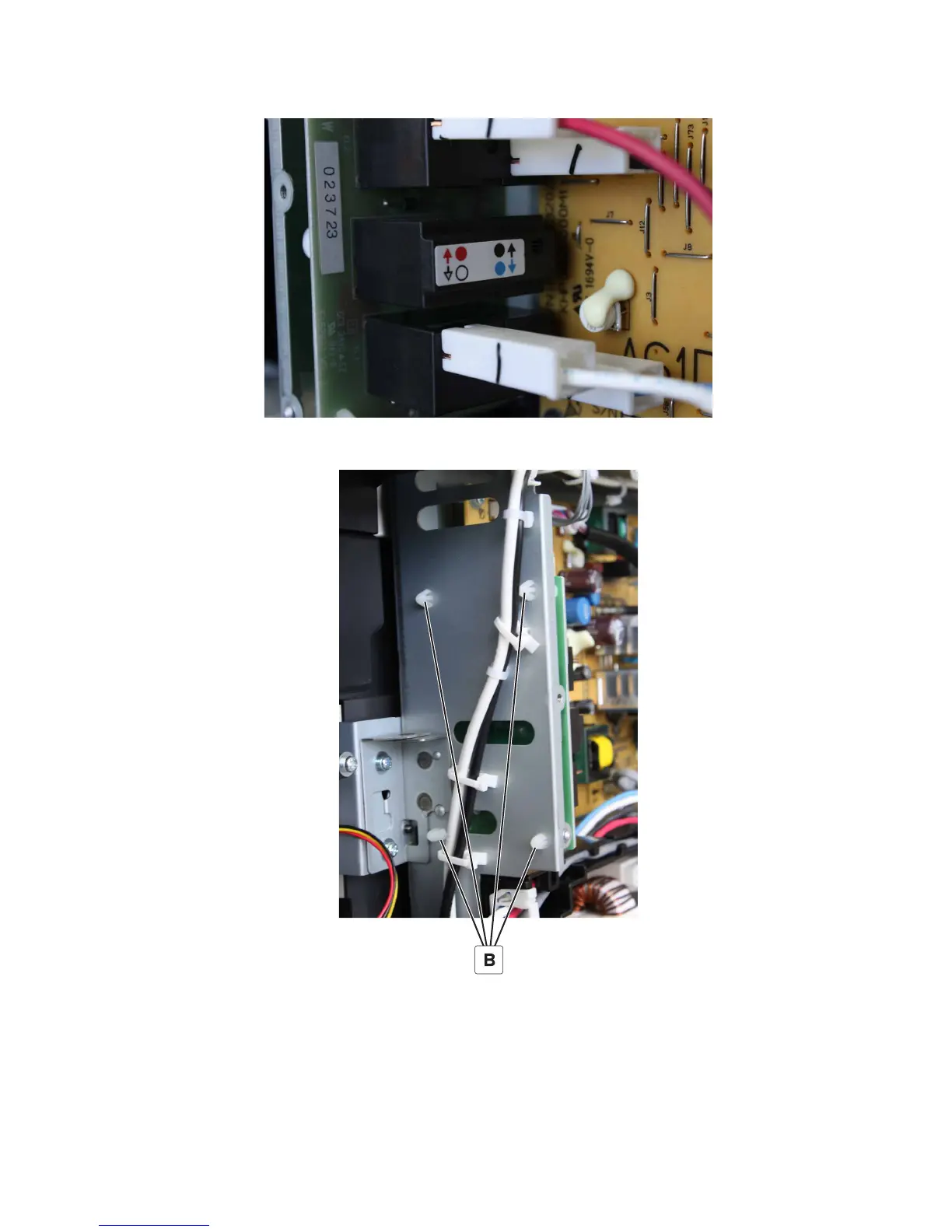

Installation note: Follow the arrangement of the colored symbols to install the cables to their correct positions.
7 Release the four latches (B), and then remove the board.
8 Release the four latches that are still attached on the board.
