Lexmark MX911dte - Page 437

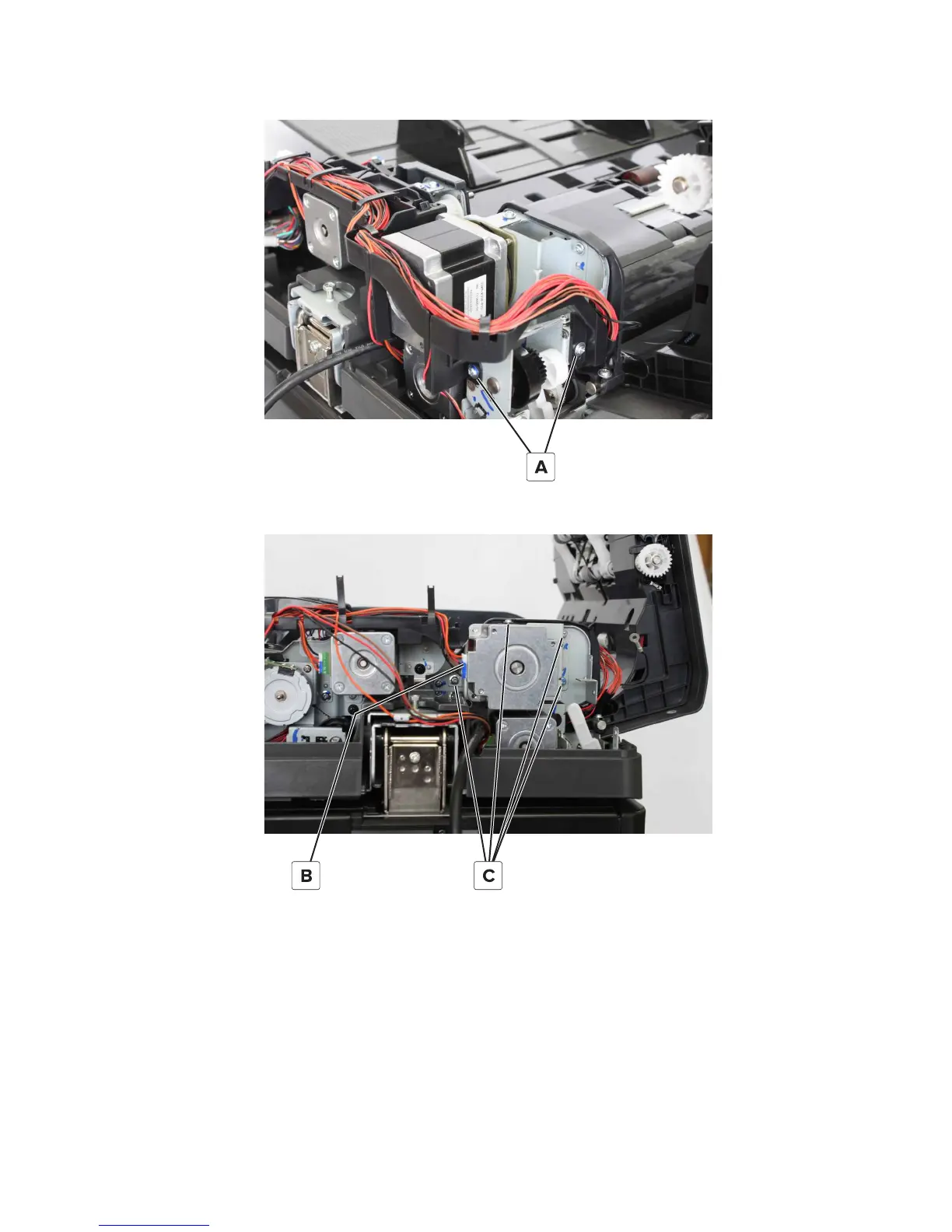

3 Remove the two screws (A), and then remove the cable harness.
4 Disconnect the cable (B), and then remove the four screws (C).
5 Remove the motor from the ADF.
6 Remove the motor from its bracket.
7421
Repair information
437
