EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP

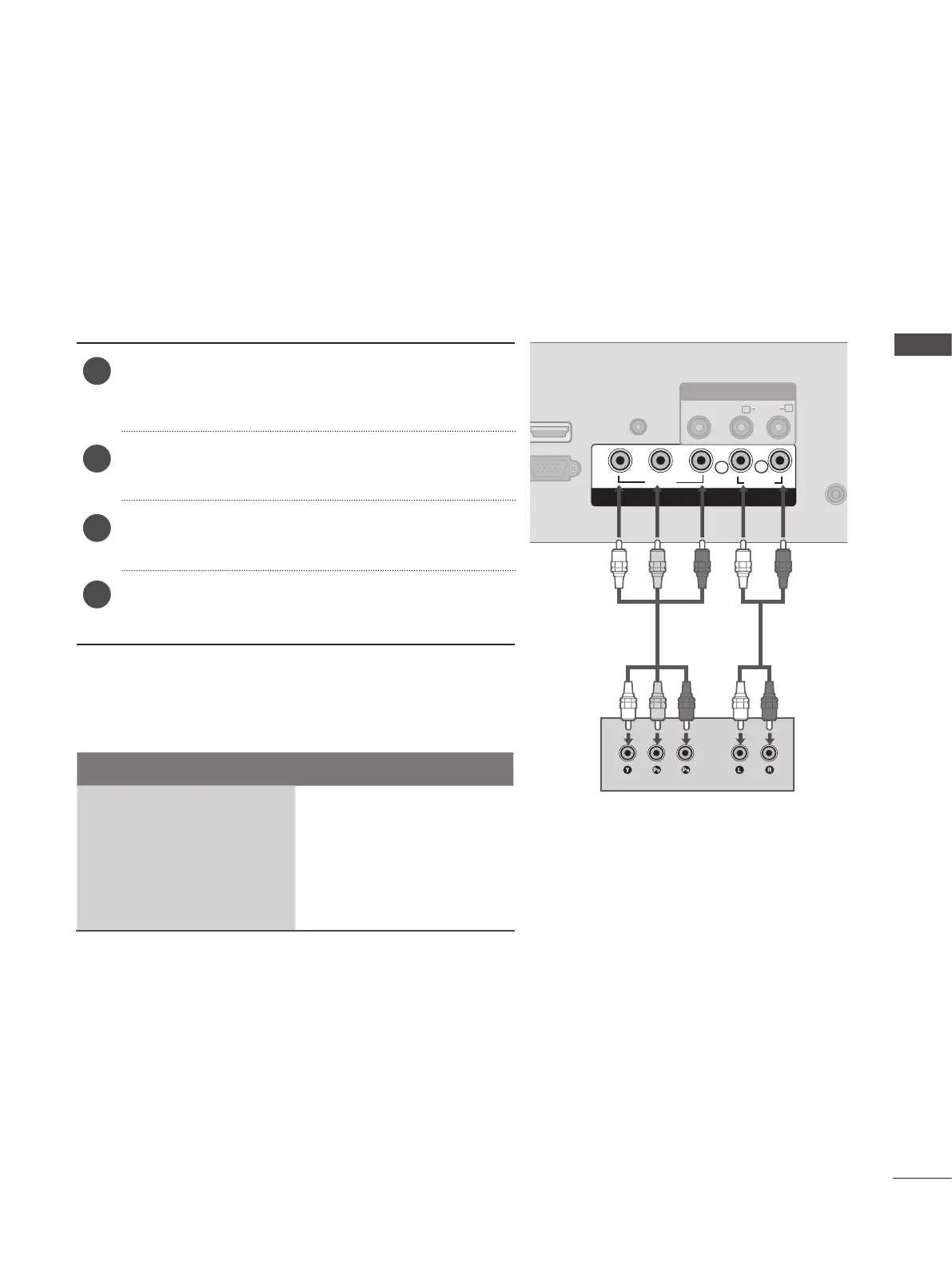

When connecting with a component cable
■ To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.
■ The image shown may be somewhat different from your set.
Connect the video outputs (Y, PB, PR) of the digital
set-top box to the COMPONENT IN VIDEO jacks on
the SET.
Connect the audio output of the digital set-top box
to the COMPONENT IN AUDIO jacks on the SET.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select COMPONENT input source using the INPUT
button on the remote control.
1
2
3
4
AUDIO IN
(RGB)
VIDEO
VIDEO AUDIO
(MONO)
AUDIO
Y
P
B
P R
L
R
HDMI IN
ANTENNA/
CABLE IN
L
R
RGB IN (PC)
COMPONENT IN
AV IN
AUDIO IN
(RGB)
VIDEO AUDIO (MONO)
L
R
AV IN
VIDEO
AUDIO
Y
PB
PR
L
R
HDMI IN
ANTENNA/
CABLE IN
COMPONENT IN
RGB IN (PC)
Signal Component
480i / 576i O
480p / 576p O
720p O
1080i / 1080p O
