EXTERNAL EQUIPMENT SETUP
HDMI IN
AUDIO IN
(RGB)
Y
PB
PR
L
R
COMPONENT IN
RGB IN (PC)
ANTENNA/
CABLE IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
L
R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
HDMI IN
AUDIO IN
(RGB)
VIDEO AUDIO
(MONO)
L
R
AV IN
VIDEO
AUDIO
Y
PB
PR
VIDEO
AUDIO
L
R
ANTENNA/
CABLE IN
COMPONENT IN
RGB IN (PC)
VIDEO AUDIO (MONO)
L
R
AV IN

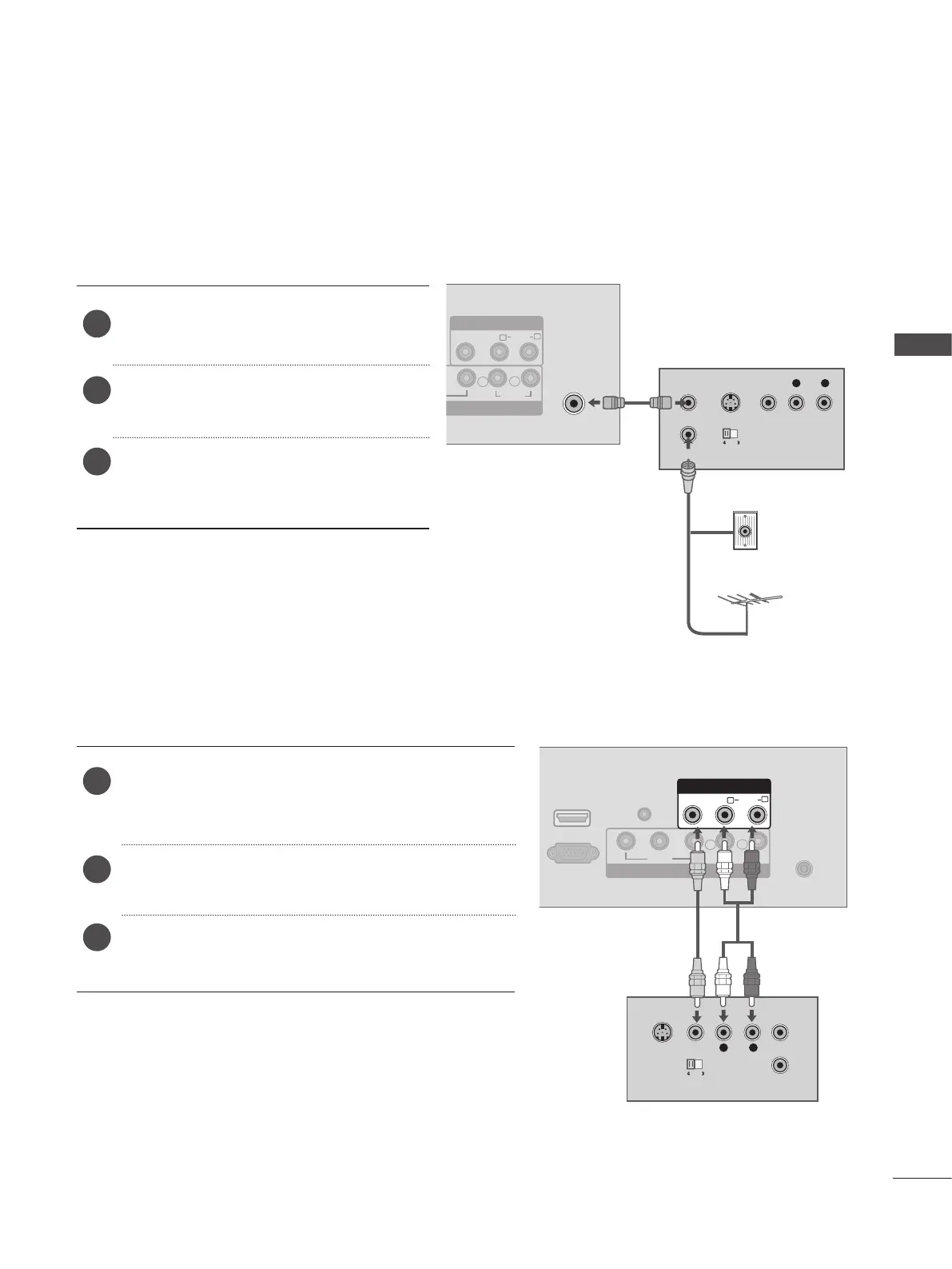

Connecting with a RCA cable
Connect the AUDIO / VIDEO jacks between SET and
VCR. Match the jack colours (Video = yellow, Audio
Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select AV input source using the INPUT button on the
remote control.
Connect the ANT OUT socket of the VCR
to the ANTENNA IN socket on the SET.
Connect the antenna cable to the ANT IN
socket of the VCR.
Press the PLAY button on the VCR and
match the appropriate programme
between the SET and VCR for viewing.
1
1
2
2
3
3
VCR SETUP
Connecting with a RF cable
■ To avoid picture noise (interference), allow adequate distance between the VCR and SET.
HDMI IN
AUDIO IN
(RGB)
Y
PB
PR
L
R
COMPONENT IN
RGB IN (PC)
ANTENNA/
CABLE IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
L
R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
HDMI IN
AUDIO IN
(RGB)
VIDEO AUDIO
(MONO)
L
R
AV IN
VIDEO
AUDIO
Y
PB
PR
VIDEO
AUDIO
L
R
ANTENNA/
CABLE IN
COMPONENT IN
RGB IN (PC)
VIDEO AUDIO (MONO)
L
R
AV IN
Wall Jack
Antenna
