EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP

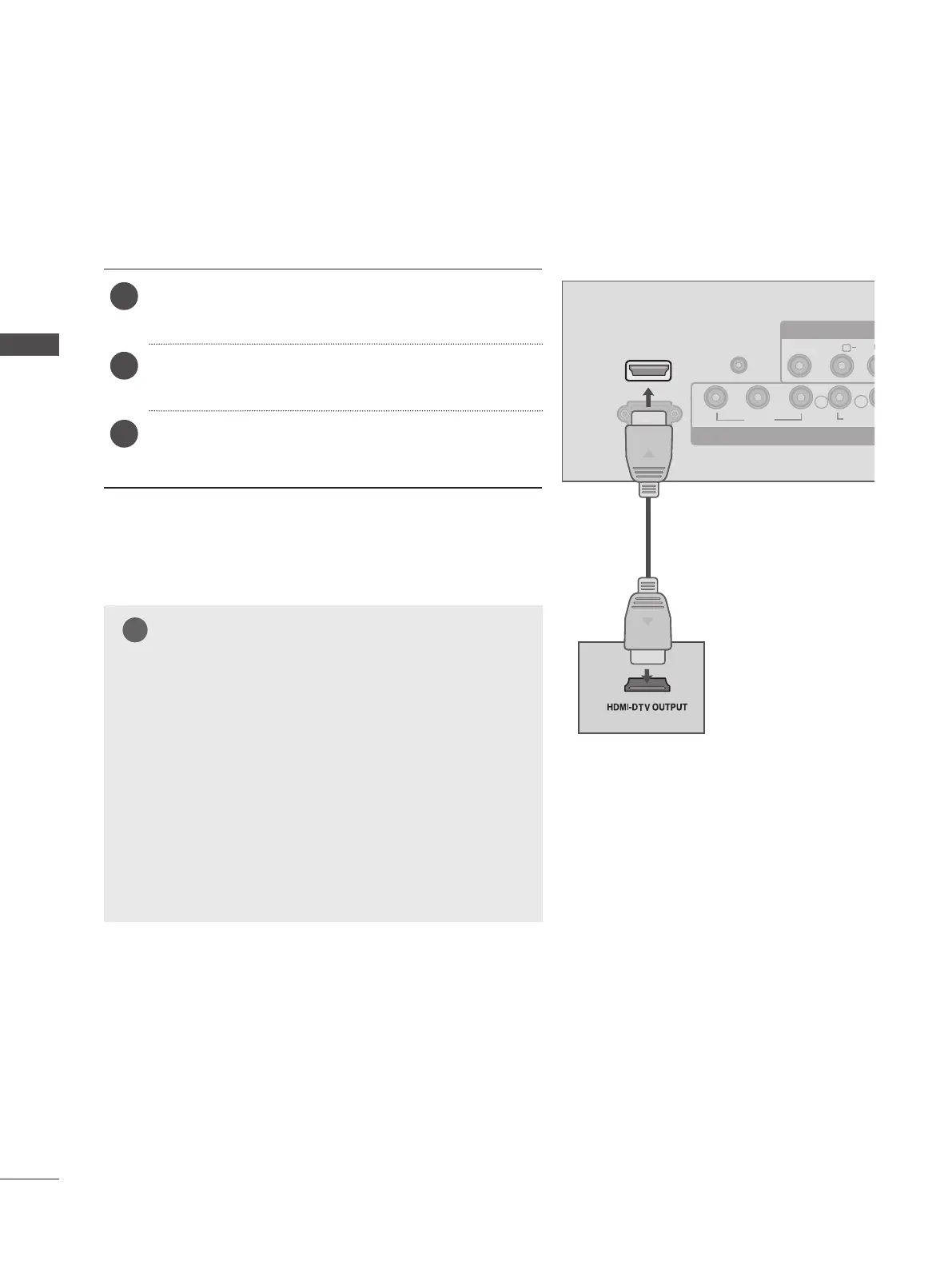

Connecting with a HDMI cable
Connect the HDMI output of the DVD to the HDMI IN
jack on the SET.
Select HDMI input source using the INPUT button on
the remote control.
Refer to the DVD player’s manual for operating
instructions.
1
2
3
AUDIO IN
(RGB)
VIDEO
VIDEO AUDIO
(MONO)
AUDIO
Y
P
B
P R
L
R
HDMI IN
ANTENNA/
CABLE IN
L
R
RGB IN (PC)
COMPONENT IN
AV IN
AUDIO IN
(RGB)
VIDEO AUDI
O
(MONO)
L
R
AV IN
VIDEO
AUDIO
Y
PB
PR
L
R
HDMI IN
ANTENNA/
CABLE IN
COMPONENT IN
RGB IN (PC)
NOTE
!
?
!
?
►SET
can receive the video and audio signal simultane-
ously with using a HDMI cable.
► If the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
SET
to 1920 x 1080p.
► If the digital set-top box player does not support Auto HDMI,
you need to
SET
the output resolution appropriately.
► To get the best picture quality, adjust the output resolu-
tion of the source device to 1920 x 1080p.
► We recommend less than 10 m for HDMI cable.
