EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP

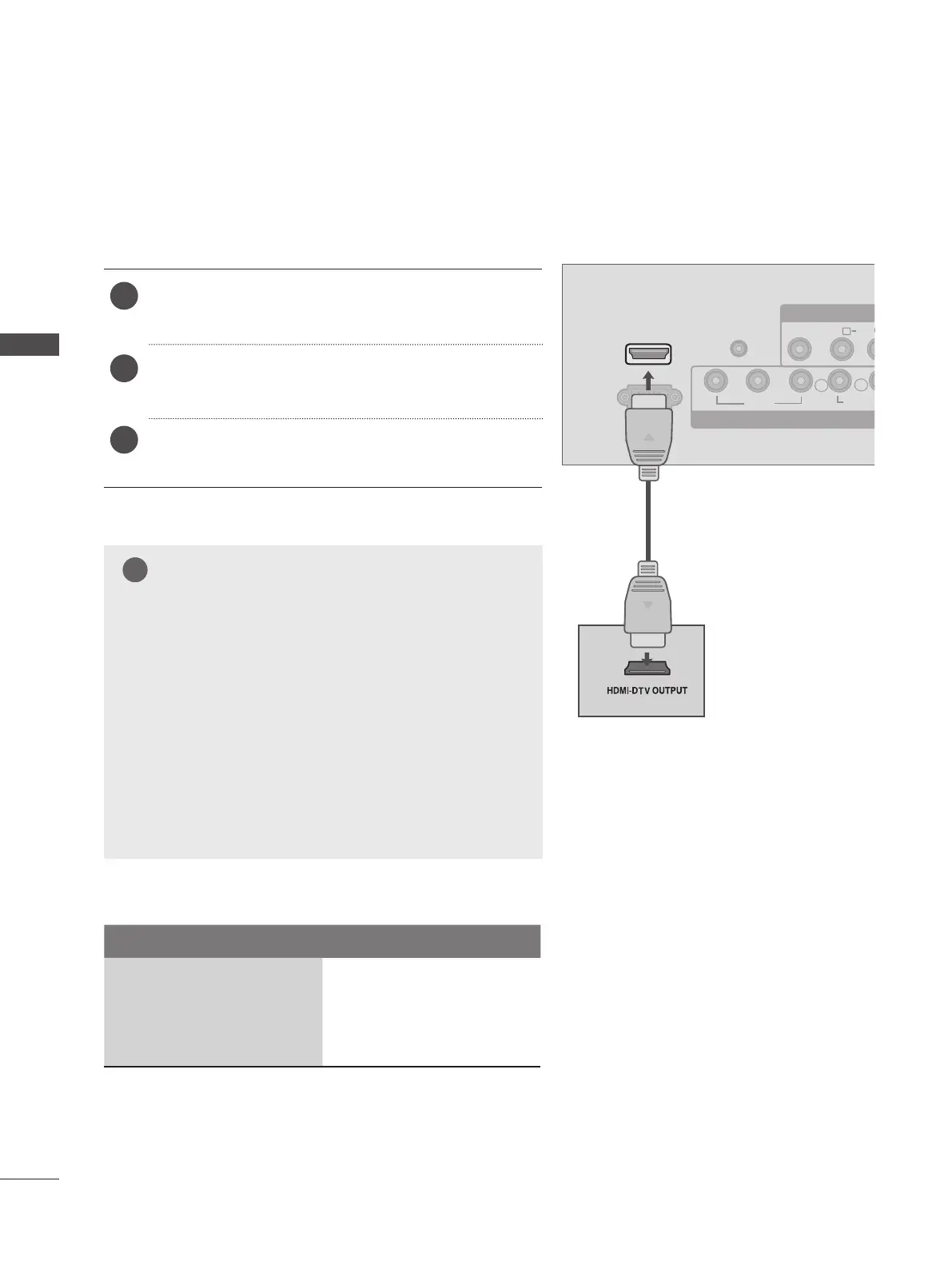

Connecting a set-top box with a HDMI cable
Connect the HDMI output of the digital set-top box to
the HDMI IN jack on the SET.
Select HDMI input source using the INPUT button on
the remote control.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
1
2
3
AUDIO IN
(RGB)
VIDEO
VIDEO AUDIO (MONO)
AUDIO
Y
P B
P R
L
R
HDMI IN
ANTENNA/
CABLE IN
L
R
RGB IN (PC)
COMPONENT IN
AV IN
AUDIO IN
(RGB)
VIDEO AUDI
O
(MONO)
L
R
AV IN
VIDEO
AUDIO
Y
PB
PR
L
R
HDMI IN
ANTENNA/
CABLE IN
COMPONENT IN
RGB IN (PC)
Signal HDMI
480p / 576p O
720p O
1080i / 1080p O
NOTE
!
?
!
?
►SET
can receive the video and audio signal simultane-
ously with using a HDMI cable.
► If the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
SET
to 1920 x 1080p.
► If the digital set-top box player does not support Auto HDMI,
you need to
SET
the output resolution appropriately.
To get the best picture quality, adjust the output reso-
lution of the source device to 1920 x 1080p .
► We recommend less than 10 m for HDMI cable.
