3. Turn the key switch to the right side to release
the brake.
After brake release operation:
1. Chock wheels to prevent machine from
rolling.
2. Turn the key switch to the off position to
engage the brake.
3. If system voltage is lower than 16.8v, operate
the drive motor according to the following
procedure.

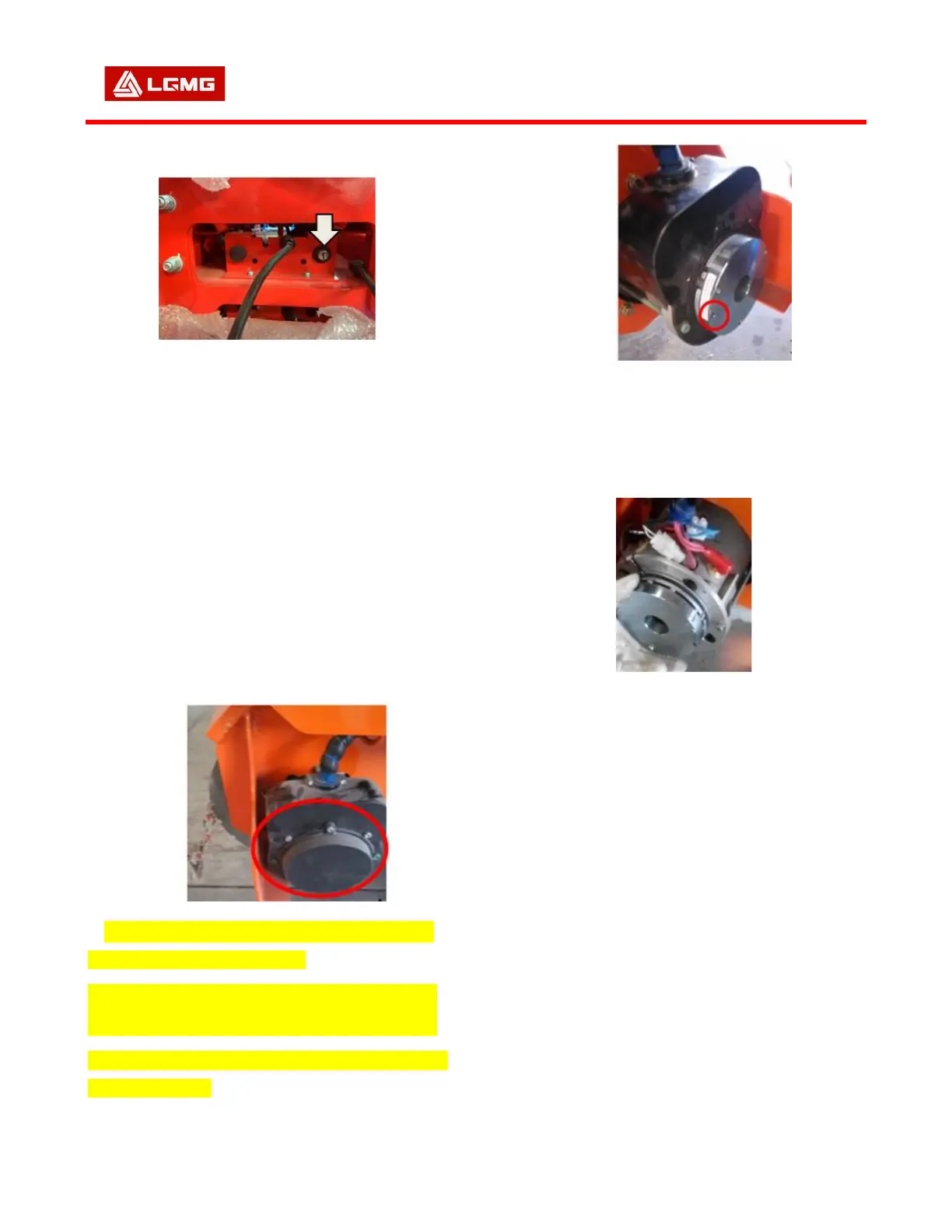

①Unscrew the drive motor end cover;
②Screw the M6*25 bolt into the screw holes in
the brake disc, see Figure2 ;
△
! Notice: For SS1230E/SS1432E/SS1932E
models, screw the M3*20bolt into the screw holes
in the brake disc.
③. Turn the bolt clockwise. When the brake
clearance is greater than 0.003in (0.08 mm),
the brake is released.
④Repeat the above procedure on opposite drive
motor. With both drive motor brake released the
machine can be moved manually.
⑤After moving the machine，reinstall both drive
motors to the original conditions.
