LGMG AS3246 User Manual

LGMG North America Inc. Operation and Safety Manual
44
strap before transport
△
! Warning
Obey the following instructions.
⚫ Only personnel qualified in loading and
transporting heavy equipment can rig lifting
equipment and lift the machine.

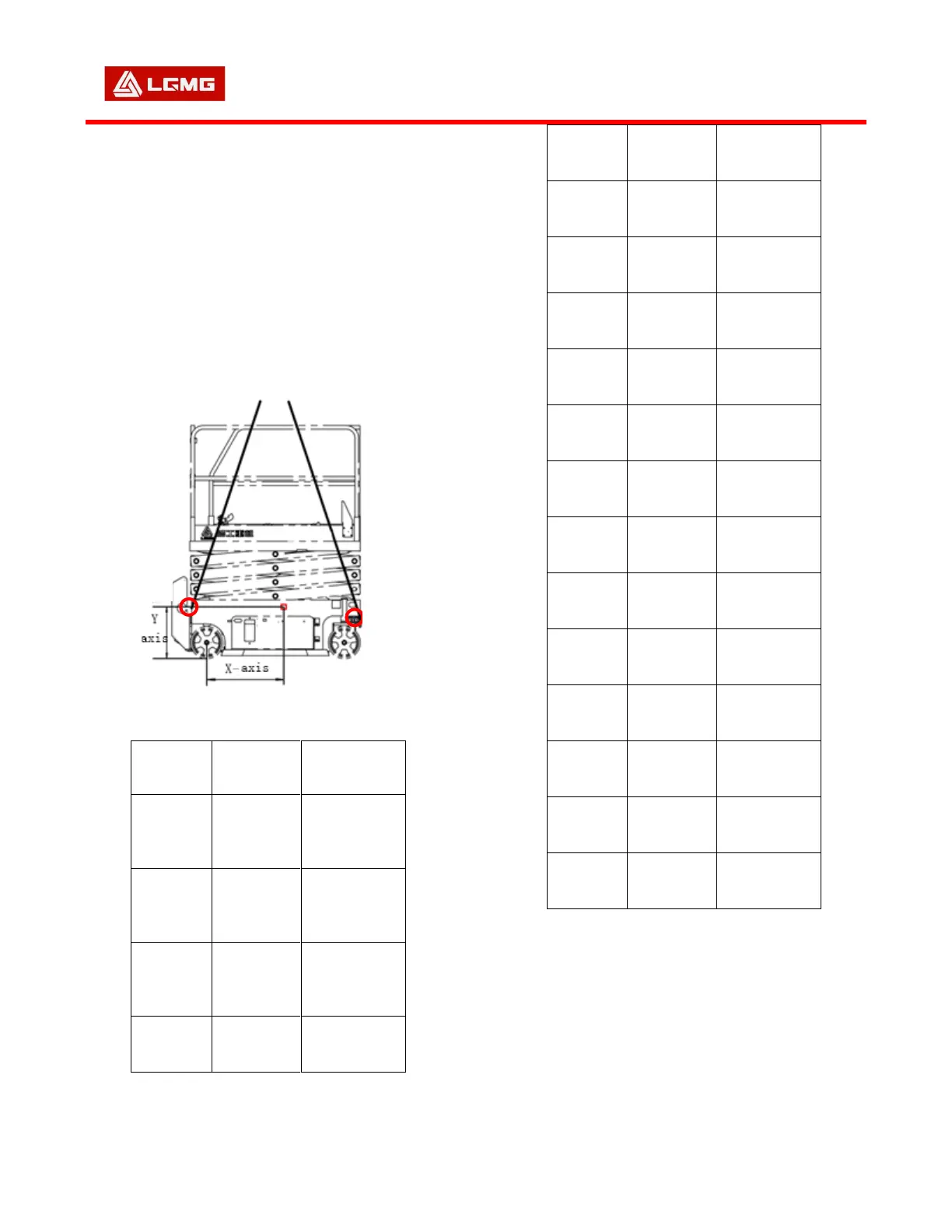

Table 12 - Center of Gravity
Model
X-axis
Y-axis
SS1230E
21.77in
(553mm)
20.51in
(521mm)
SS1432E
22.29in
(566.2mm)
19.88in
(504.95mm)
SS1932E
32.88in
(835.1mm)
22.8in
(579.4mm)
AS1930E
22.2in
(564mm)
18.85in
(478.8mm)
Model
X-axis
Y-axis
AS1932E
21.5in
(546.3mm)
19.2in
(487.5mm)
AS2632E
33.9in
(860.2mm)
25.4in
(645.6mm)
AS2646E
33.37in
(847.8mm)
23.86in
(606.13mm)
AS3246E
33.8in
(858.5mm)
25.4in
(645mm)
AS4046E
47.32in
(1202mm)
26.9in
(683.15mm)
AS4650E
42.9in
(1090mm)
33.6in
(853mm)
AS1930
22.2in
(564mm)
18.85in
(478.8mm)
AS1932
21.5in
(546.3mm)
19.2in
(487.5mm)
AS2632
33.9in
(860.2mm)
25.4in
(645.6mm)
AS2646
33.37in
(847.8mm)
23.86in
(606.13mm)
AS3246
33.8in
(858.5mm)
25.4in
(645mm)
AS4046
47.32in
(1202mm)
26.9in
(683.15mm)
AS4650
42.9in
(1090mm)
33.6in
(853mm)
⚫ Only personnel qualified in forklift operation
qualification are permitted to load and unload
the machine with a forklift.
Site
lifting
point
Site
lifting
Point
