Section 9. Maintenance
8

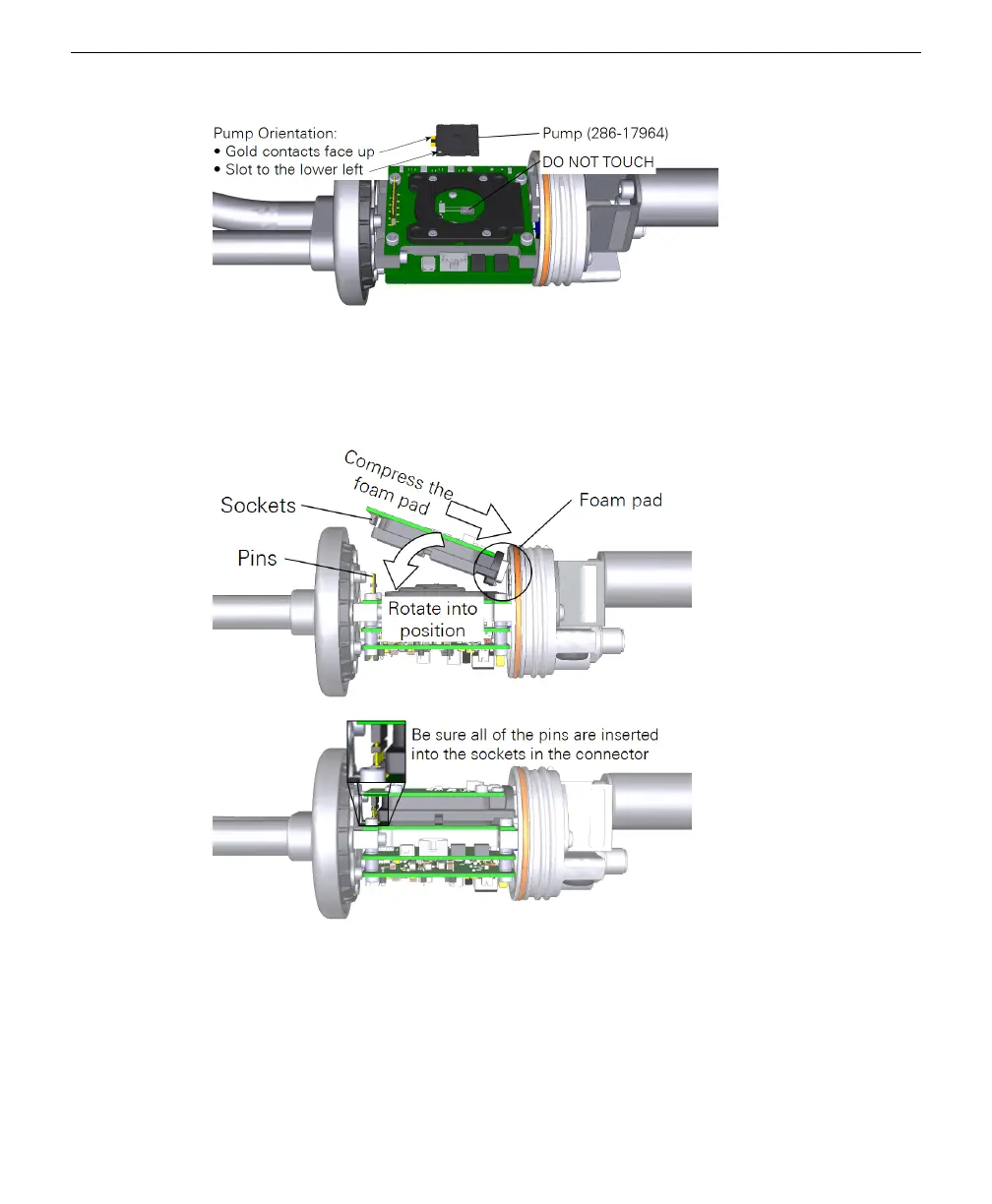

Install the flow assembly.
Compress the foam pad and then rotate the flow assembly into place. Be especially
careful with the connector - ensure that each pin meets the corresponding socket,
then press them together.
9
Install the four screws that secure the flow assembly.
Extra screws are in the spares kit (part number 151-18159).
10
Install the cover.
Tighten the cover until it hits a stop and will no longer turn - about two revolutions.
The pump replacement is complete.
9-6 LI-710 Evapotranspiration Sensor Instruction Manual
