-179- v2.9
Sensors

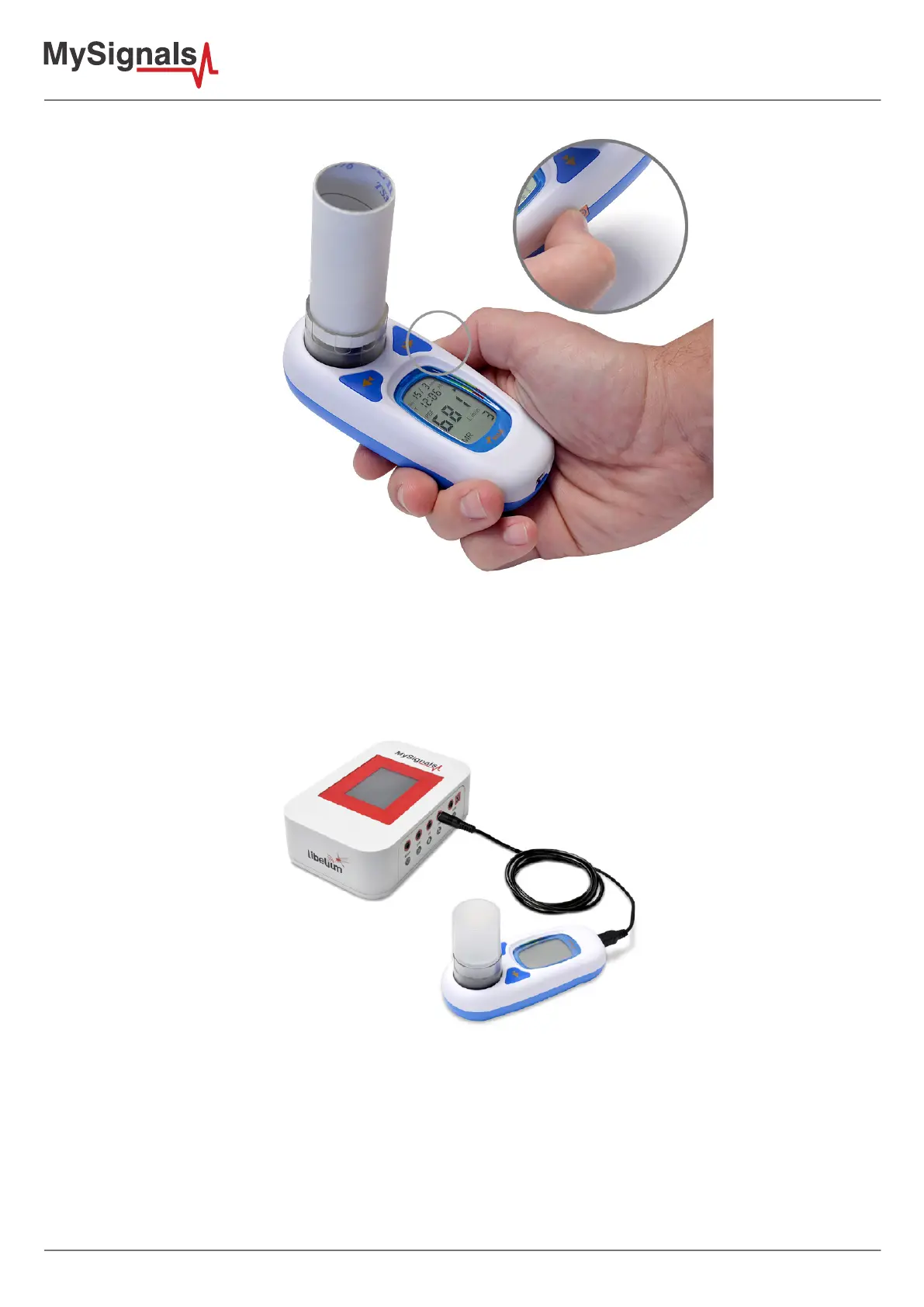

Figure: Spirometer measure
The glucometer will store the value in the memory.
3) In order to extract the data from the glucometer to the Arduino, connect the spirometer to Mysignals with the
cable as show in the picture.
Figure: Cable connection
You should view in the glucometer screen a USB logo indication, that indicates the correct connection.
