7.1.9.2. Connecting the sensor
Connect the sensor in the GSR connector indicated in the MySignals Hardware board. The sensor cable have only
one way of connection to prevent errors and make the connection easier.

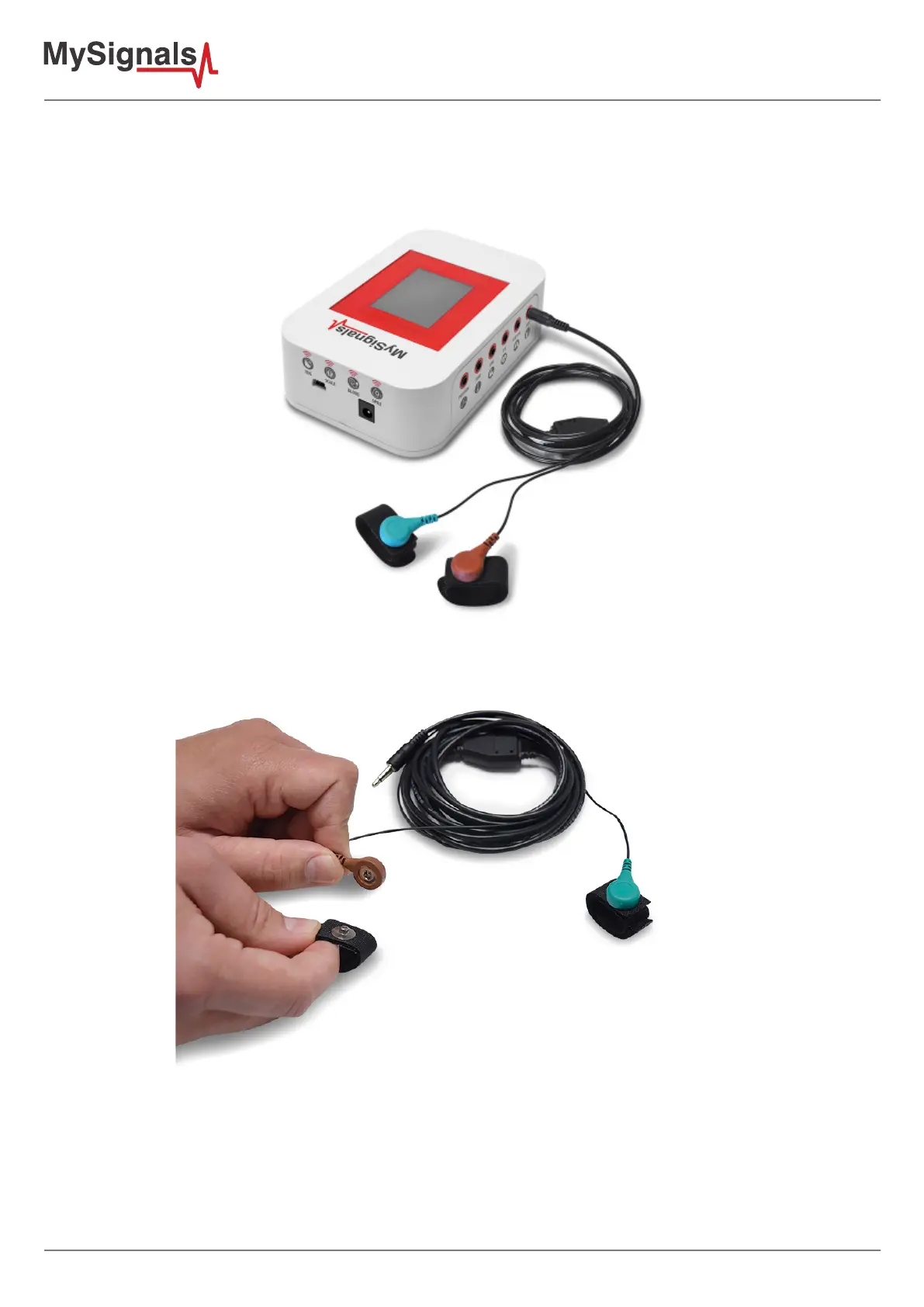

Figure: MySignals Hardware Development Platform with GSR connected
Connect the GSR lead to the electrodes.
Figure: GSR connecting GSR electrodes
