-189- v2.9
Sensors

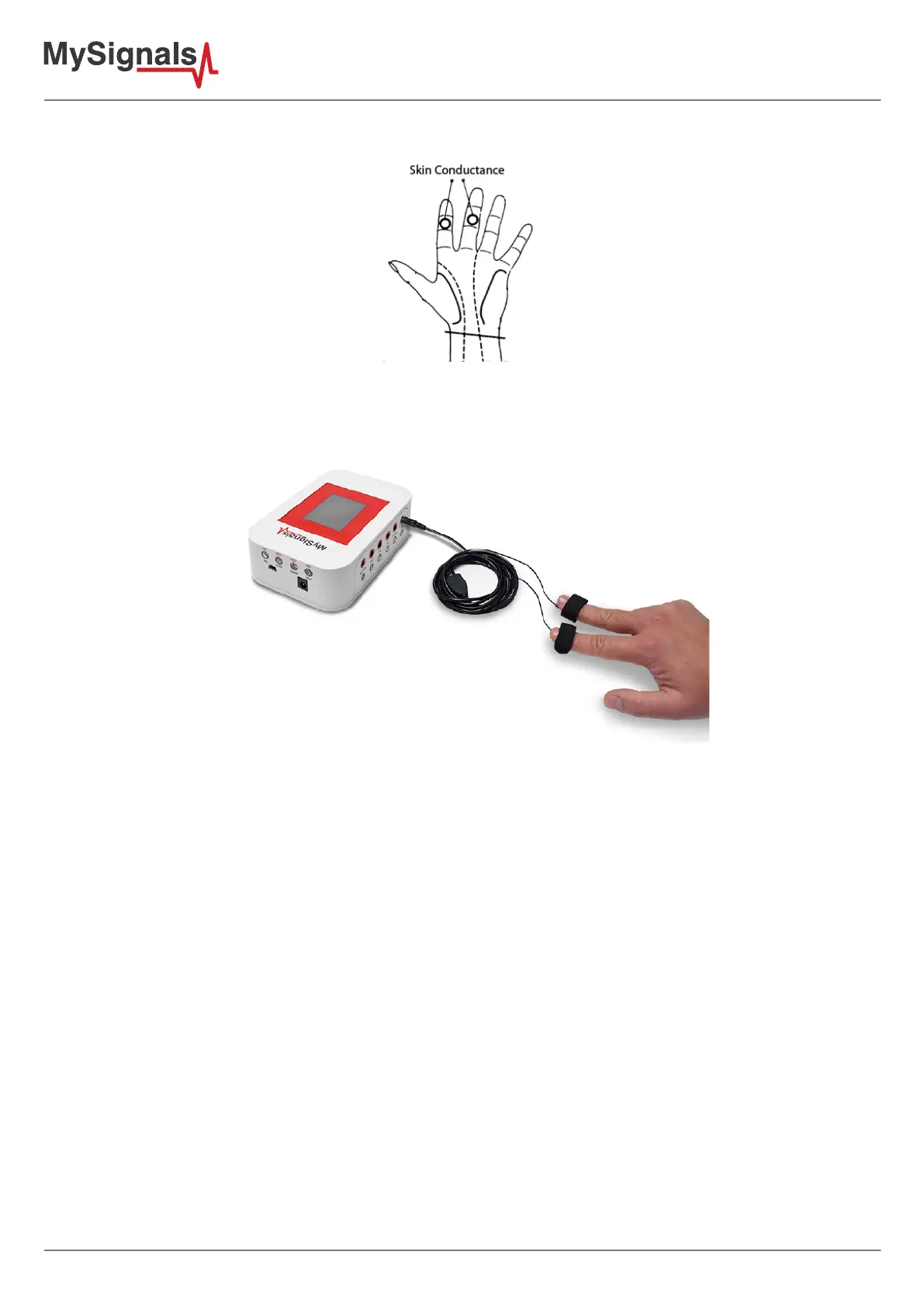

Place the electrodes as shown below.
Figure: EMG position diagram
The galvanic skin sensor has two contacts and it works like a ohmmeter measuring the resistance of the materials.
Place your ngers in the metallic contacts and tighten the velcro as shown in the image below.
Figure: MySignals Hardware Development Platform with GSR situated in the user body
After a few seconds you will get the values in the visualization method programmed.
