Sensors
Remove the protective plastic. You can use a specic conductive gel in order to improve the quality signal of the
sensor.

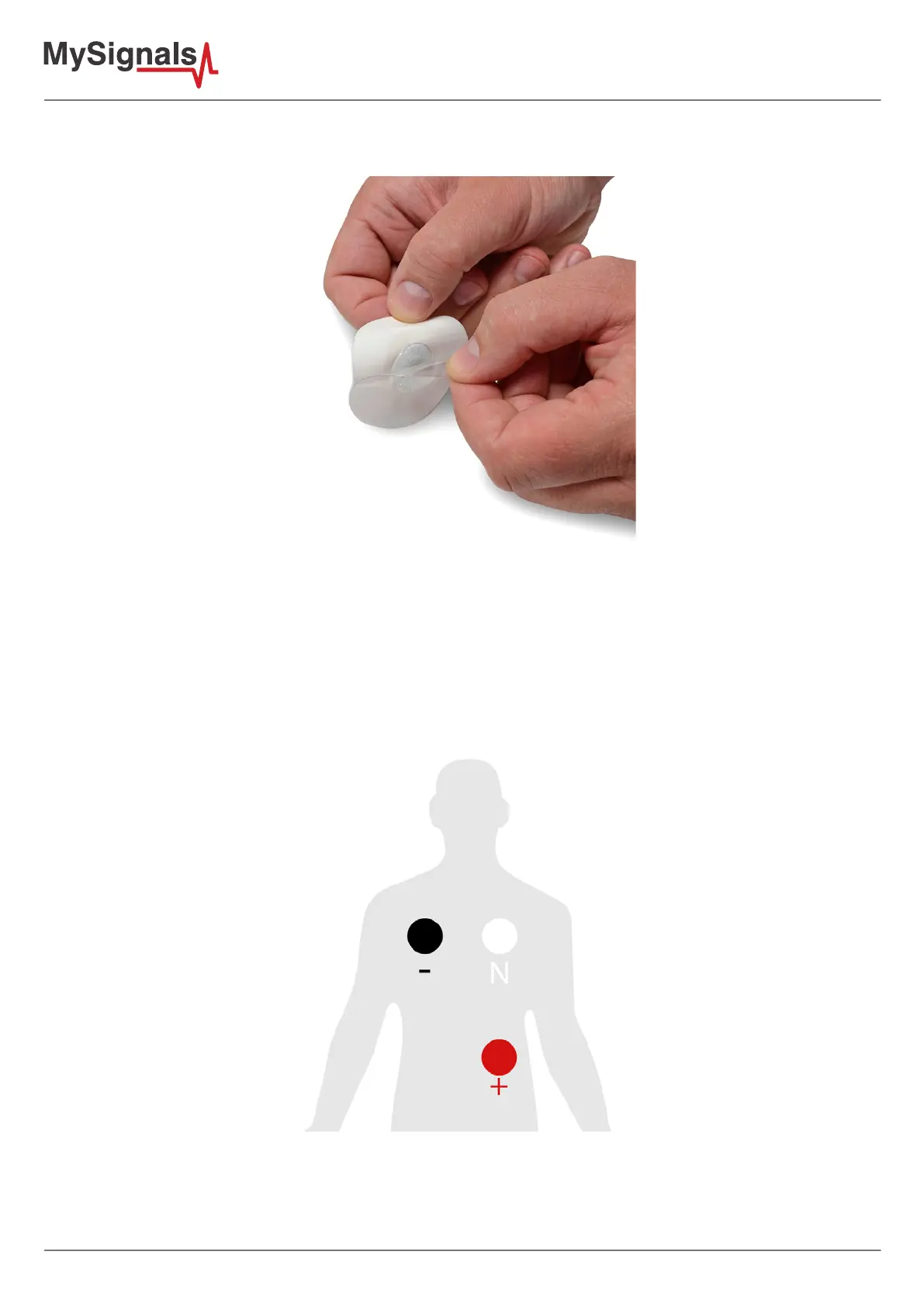

Figure: ECG electrodes removing protective plastic
This sensor use disposable pre-gelled electrodes.
These high quality disposable electrodes are to be used to measure EEG, ECG and EMG. They are to be used once
and are very handy because of integrated gel. They adhere very well to the skin and are clean to use.
The snap-on connector can easily be pushed on or removed from the electrode lead.
Place the electrodes as shown below.
Figure: ECG position diagram
After a few seconds you will get the values in the visualization method programmed.
