Liebert CRV+ Series User Manual

Chapter 2 Mechanical Installation 9
Liebert CRV+ Series Air Conditioner User Manual
H
W
D

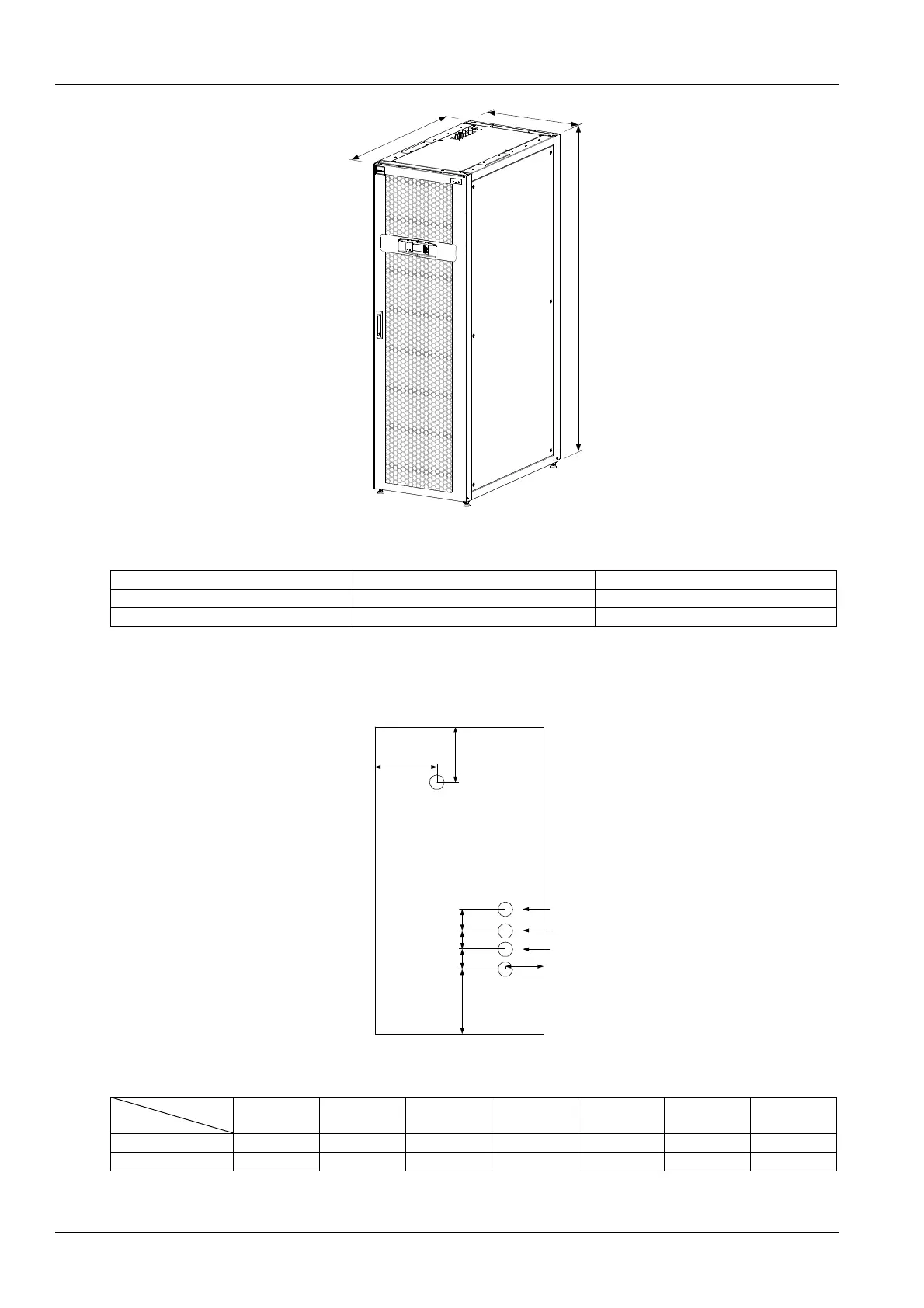

Figure 2-8 Mechanical parameters of indoor unit (unit: mm)
Table 2-1 Mechanical parameters of indoor unit
Model Dimensions (W × D × H) (mm) Net weight (kg)
CR025 300 × 1100 × 2000 270
CR035 600 × 1100 × 2000 350
Base plate pipe outlet locations & dimensions
The locations of the pipe inlets and outlets on the unit base plate are shown in Figure 2-9. See Table 2-2 for their
dimensions.
a
b
c
g
f
A
B
C
D
E
d
e
A: Drain hole
B: Liquid pipe hole
C: Discharge pipe hole
D: Cable entry hole
E: Water inlet hole
Figure 2-9 Locations of base plate pipe outlet
Table 2-2 Locations and dimensions of base plate pipe outlet (unit: mm)
Dimension
Model
a b c d e f g
CR025 80 80 50 115 45 182 99
CR035 48 62 45 127 49 277 210

Liebert CRV+ Series Specifications

General

Refrigerant	R410A
Frequency	50/60 Hz
Operating Ambient Temperature	64° to 113°F (18° to 45°C)
Sound Pressure Level	Varies by model (typically 45 dB(A) to 65 dB(A))
Dimensions	Varies by model (consult specific model documentation)
Weight	Varies by model (consult specific model documentation)
