Liebert CRV+ Series User Manual

12 Chapter 2 Mechanical Installation
Liebert CRV+ Series Air Conditioner User Manual
Table 2-4 Minimum maintenance space (unit: mm)
Location CR025 CR035
Front 600 600
Rear 600 600
Note: the space is used for regular maintenance, such as replacing filter, fan, electrode humidifier and so on
2.4.3 Installation Procedures
The Liebert CRV+ air conditioner is used between racks, and at least one side of it is adjacent to server cabinet.
Levelling the cabinet
After all components of the cabinet have been installed, you need to level the cabinet.
The procedures for levelling the cabinet are as follows:
1. Place the cabinet on an open ground.
2. Use a moveable wrench to loosen the fixing nuts on the four feet bolts (see Figure 2-13) clockwise in sequence.
3. Rotate the hexagon bolts on the bottom of the feet clockwise or counter clockwise till the feet rises or drops to an
optimal position, and use a gradienter to ensure that the cabinet is in a level state, as shown in Figure 2-13.
.
Closkwise
Hexagon bolt
Fixing nut
Counter closewise
or clockwise
The feet rise or drop

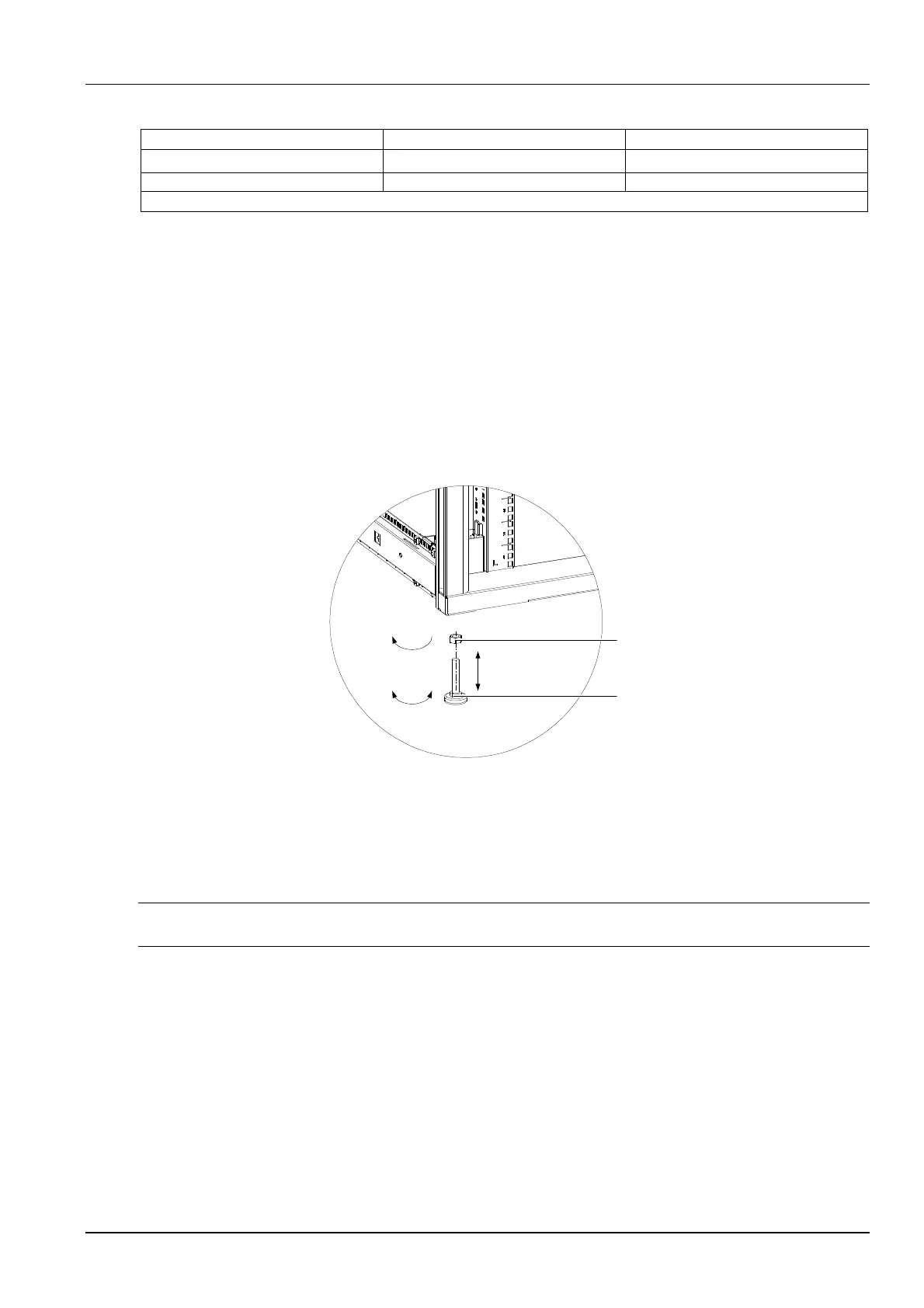

Figure 2-13 Levelling the cabinet
4. Screw down the fixing nuts on the feet bolts counter clockwise, and the levelling is finished.
If the machine room has mounting bracket, and its width does not exceed 30mm, you need to remove the feet and fix
the cabinet onto the mounting bracket.
Removing feet and fixing cabinet
 Note
To avoid personal injury and cabinet damage, two persons are required to perform the operation together.
1. Remove the feet:
1) Use a moveable wrench to loosen the fixing nuts on the four feet bolts clockwise in sequence.
2) Rotate the hexagon bolts on the bottom of the feet clockwise till the feet drops from the cabinet frames.
2. Fix the cabinet:
The cabinet provides two holes (diameter: 10mm) respectively on its top, bottom, front and rear, as shown in
Figure 2-14. Install bolts in the four bottom holes to fix the cabinet onto the floor bracket of the machine room, and
install bolts in the four top holes to connect the cabinet with the top bracket of the machine room.

Liebert CRV+ Series Specifications

General

Refrigerant	R410A
Frequency	50/60 Hz
Operating Ambient Temperature	64° to 113°F (18° to 45°C)
Sound Pressure Level	Varies by model (typically 45 dB(A) to 65 dB(A))
Dimensions	Varies by model (consult specific model documentation)
Weight	Varies by model (consult specific model documentation)
