Liebert CRV+ Series User Manual

Chapter 2 Mechanical Installation 13
Liebert CRV+ Series Air Conditioner User Manual
Top fixing hole
Top fixing hole
Bottom fixing hole
Bottom fixing hole

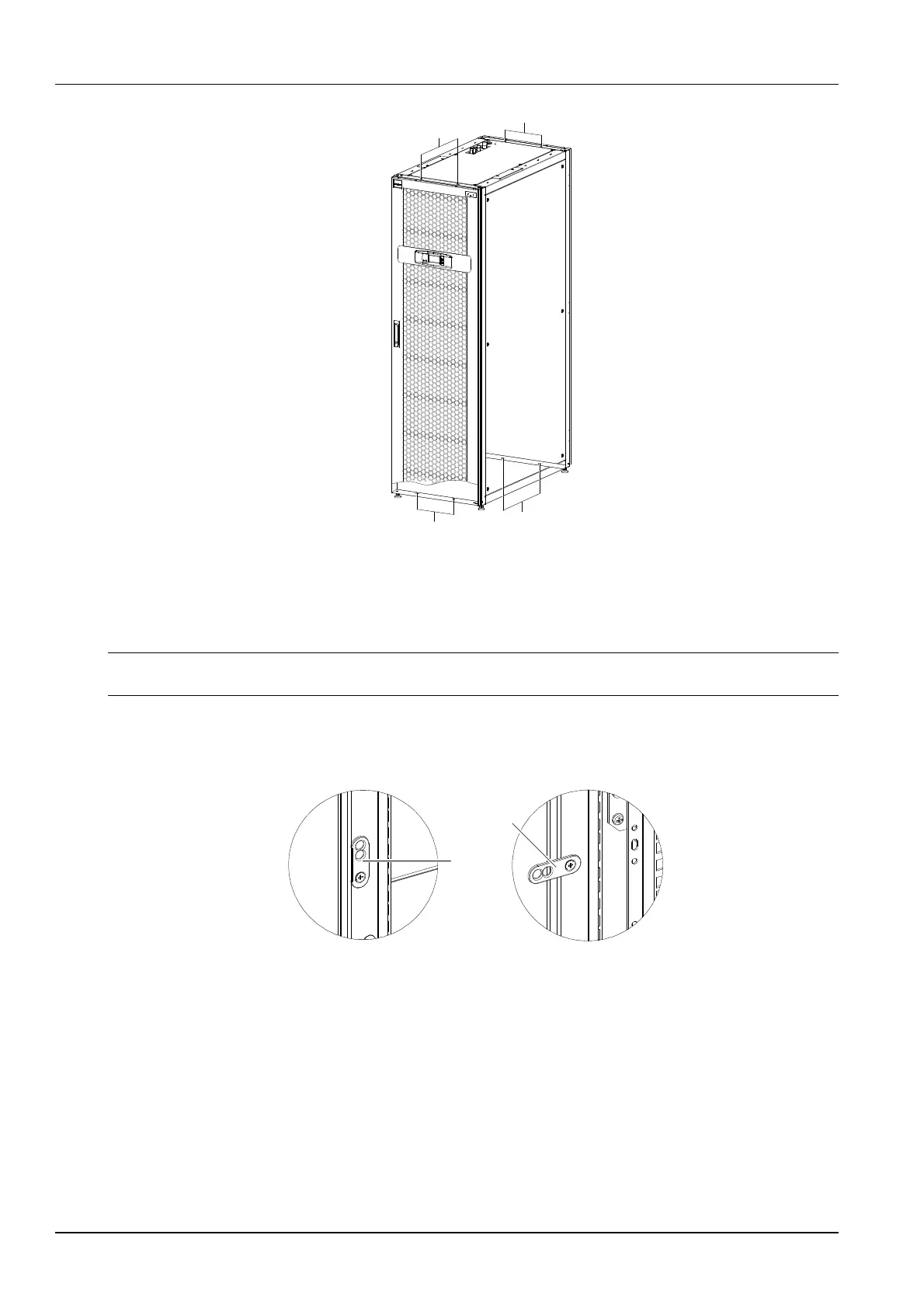

Figure 2-14 Fixing holes of cabinet
Cabinet connection
The cabinet connectors are provided in accessories. You can connect the unit with adjacent cabinets through the
cabinet connectors.
 Note
Before connecting the cabinet, please level the cabinet first. Refer to Levelling The Cabinet in this section for the method.
Procedures for connecting the cabinet:
1. Loosen the fixing screw of the cabinet connector on the cabinet frame, and rotate the cabinet connector 90° to
horizontal position, as shown in Figure 2-15.
Cabinet
connector
Cabinet
connector
Figure 2-15 Rotating the cabinet connector
2. Use the provided M5 countersunk head screws to fix the cabinet connector in the installation holes on the cabinet
frame, as shown in Figure 2-16. When connecting the racks without using the split plate, use the installation holes of
the cabinet connector to connect the racks.

Liebert CRV+ Series Specifications

General

Refrigerant	R410A
Frequency	50/60 Hz
Operating Ambient Temperature	64° to 113°F (18° to 45°C)
Sound Pressure Level	Varies by model (typically 45 dB(A) to 65 dB(A))
Dimensions	Varies by model (consult specific model documentation)
Weight	Varies by model (consult specific model documentation)
