3.4 Siderails
3.4.1 Siderail lock with the possibility of unlocking from the feet part of the bed
(S6015723)
Rod siderails are foldable down in direction to bed head end. Their locks are located on both bed sides at bed foot end. The lock
consists of simple latch bolt which is pushed by torsion spring to shackle on the last foot rod of siderail. During siderail lowering the
latch bolt is unblocked manually and siderail can be folded down. During siderail lifting a siderail latches automatically.

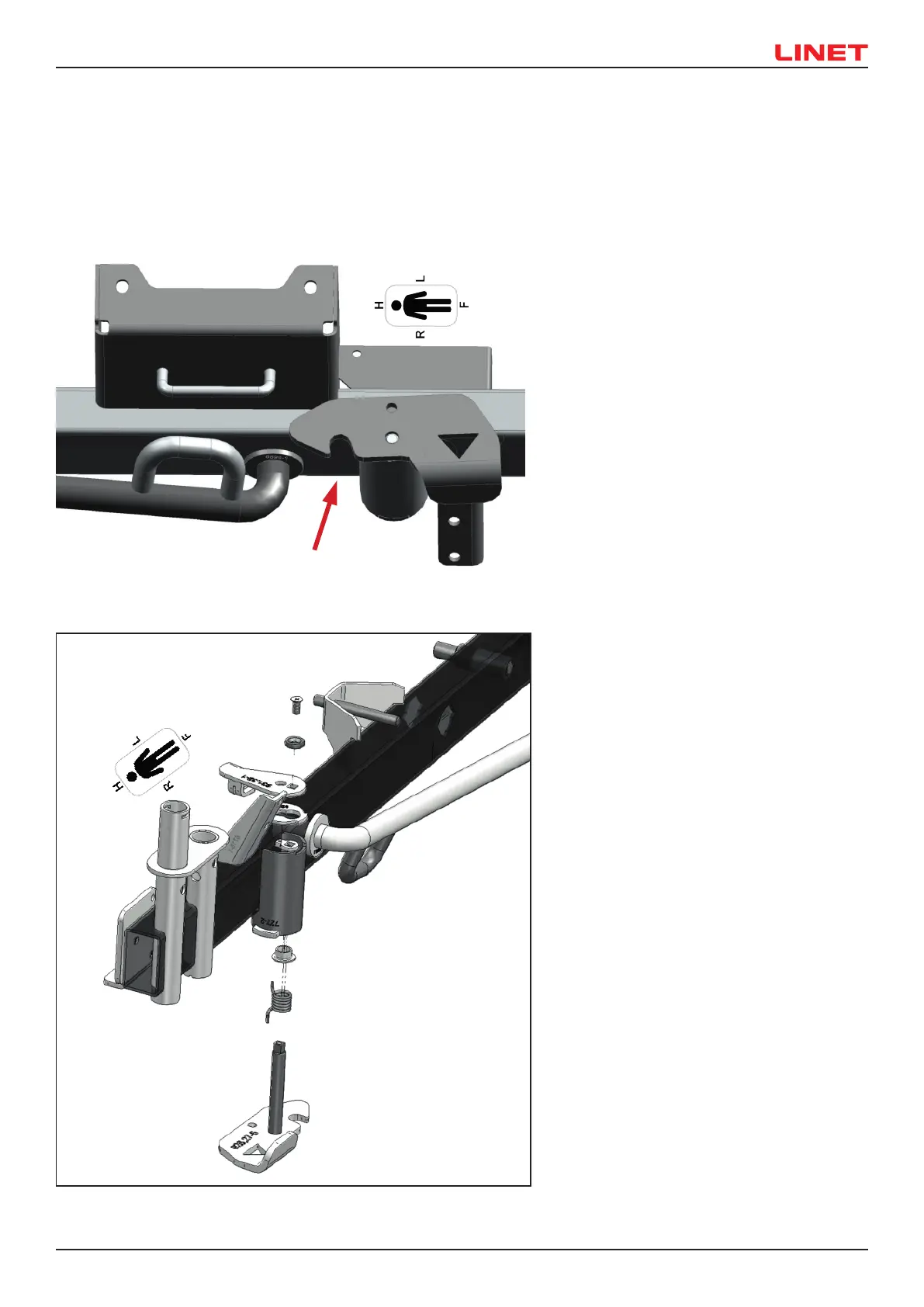

Fig.15 Composition of the Siderail lock with the possibility of unlocking from
the feet part of the bed - bottom view (S6015723)
Fig.16 Siderail lock with the possibility of unlocking from the feet part of the bed (S6015723)
