3.4.2 Siderail lock with the possibility of unlocking from the feet and the head part
of the bed (S6015731, optional)
The siderail mechanism described in chapter „3.4.1 Siderail lock with the possibility of unlocking from the feet part of the bed
(S6015723)“ can be controled also by means of 2 levers on the bed side at Backrest. Bowden cables intended for unblocking siderails
are conducted on both bed sides. Each Bowden cable has its own adjusting screw.

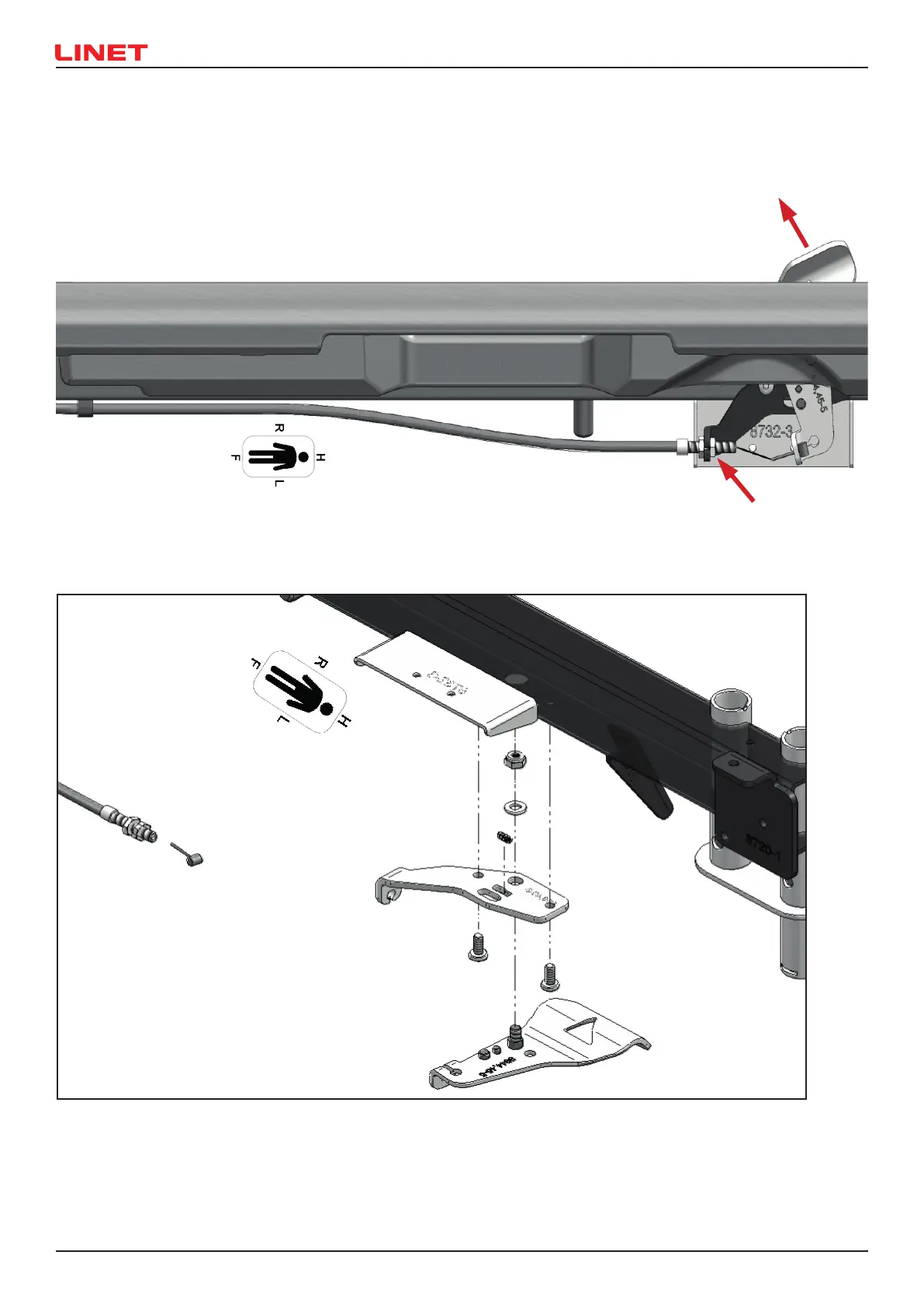

Fig.18 Composition of the siderail lock - unlocking from the feet and the head part of the bed - view from above (S6015731)
Fig.17 Siderail lock with the possibility of unlocking from the feet and the head part of the bed - bottom view (S6015731)
setting screw
