LINET Sprint 100 Service Manual

D9S001ES1-010118
The battery supply circuit is protected by a fuse tube located in the battery module. This fuse is only accessible with the tool
and may only be replaced by a trained and qualified person..

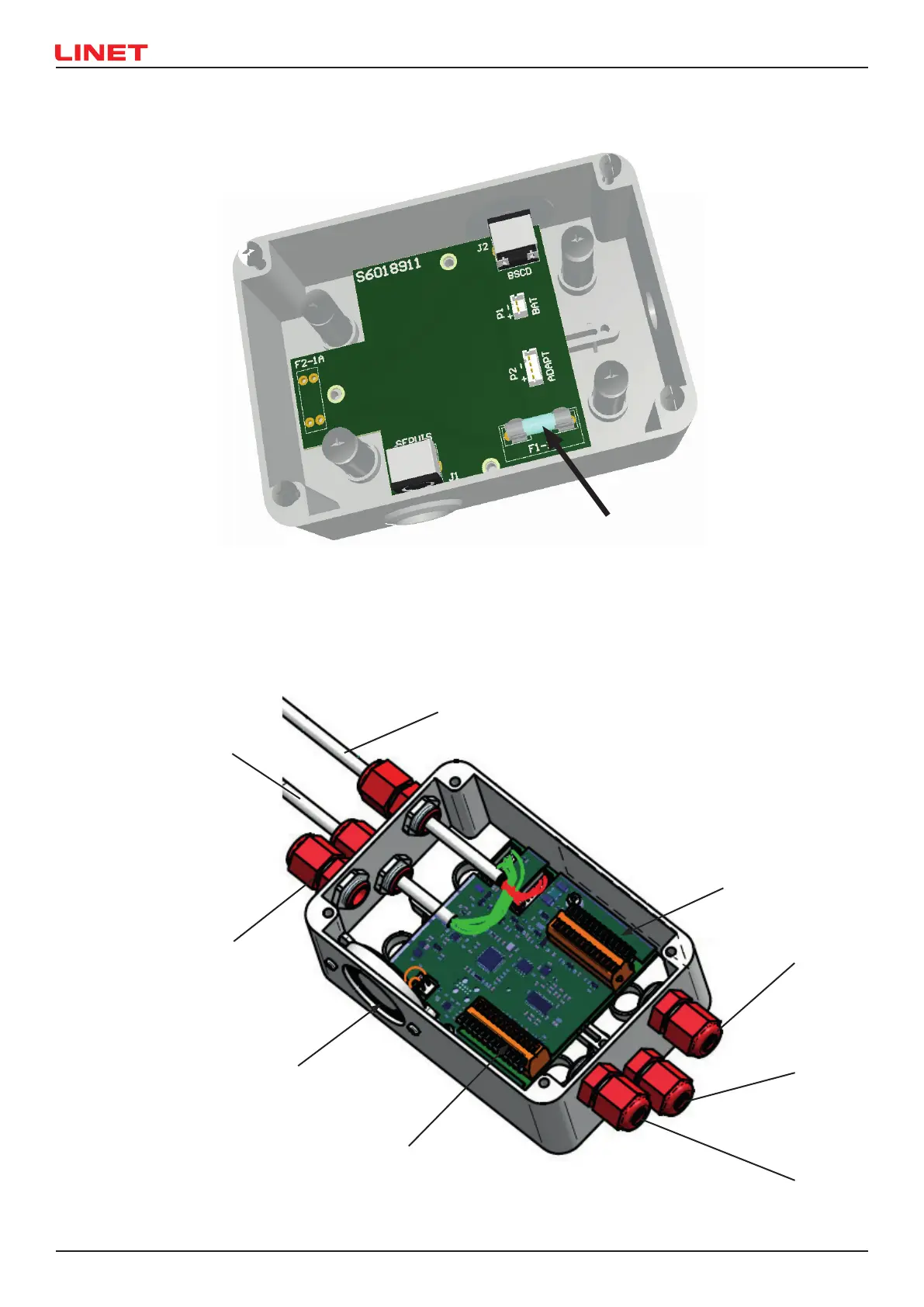

Obr. 22 Battery module fuse location
3.5.2 Scale module
This is the main part of the LW 20 scale system, which contains all the logic for evaluating the patient‘s weight based on data
from connected tensometers. This module also includes a built-in dynamic speaker for acoustic signaling of important events (BEA).
The scale module displays the processed information on the LCD display of the display module.
T3, T4
T1, T2
T1
T2
T3
T4
Display module cable
Battery module cable
BEA speaker
Obr. 23 Scale module of LW 20 system
