D9S001ES1-010116
3.5 Scale system LW20
Using the LW 20 system, in conjunction with tensometers, it is possible to measure the patient‘s weight and display it on the LCD
display. The system can be powered by replaceable batteries or by an external AC adapter.
IMPORTANT WARNING!
The scale system is always configured for a specific bed. In case of replacement of the scale module, it is therefore always
necessary to contact the manufacturer‘s service center and state the serial number of the bed and the date of production when
ordering a new spare part. This spare part can only be used for the bed with the serial number for which it was ordered.
IF THIS PROCEDURE IS NOT FOLLOWED, THE CORRECT FUNCTION OF THE WEIGHING SYSTEM IS NOT
GUARANTEED!
The basic elements of the weighing system are:
► Battery module
► Scale module
► Display module
► Power adapter
► Tensometers (T1, T2, T3, T4)
T1
T3
T4
T2
*
*
*
* (Tensometer
cable)
Adapter cable
T1 connection
T3 connection
T2 connection
T4 connection
Battery moduleScale module
Display
module

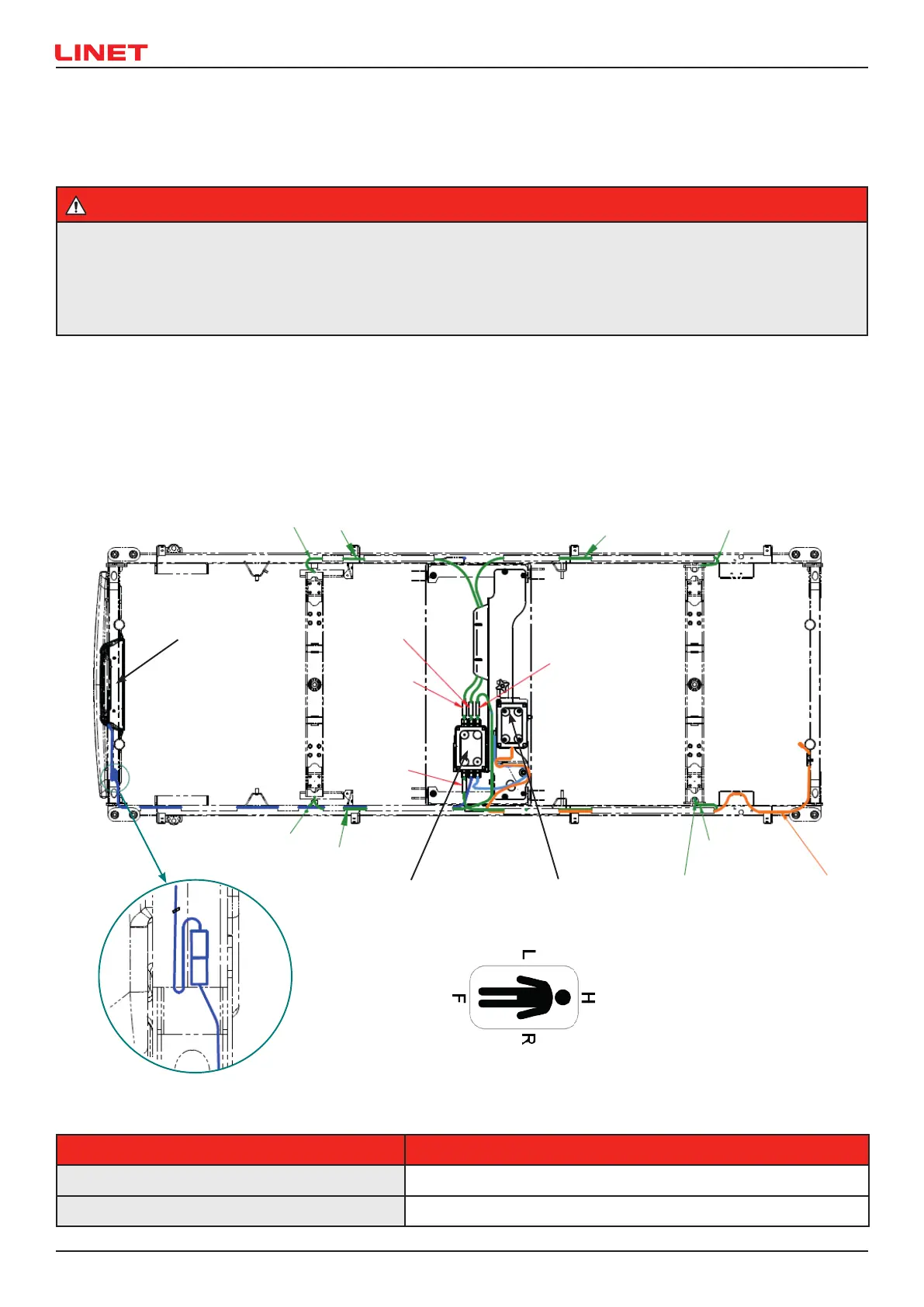

Fig. 20 Scale system - connection scheme (bottom view)
Technical parameters:
Parameter Value
Fuse protection 1x tube fuse 5x20mm T1A L 250 V for batteries
Protection degree IP54
