3.5.4 Tensometers (weight sensors)
Depending on the load, the electrical resistance in the weighing sensor changes. The change is immediately sent to the scale module,
which processes the values. There are four weight sensors (tensometers) on the bed - 2 foot, 2 head. They are always fastened
with eight screws (6 + 2 Nm) The sensors are connected to the terminal blocks in the weighing module..

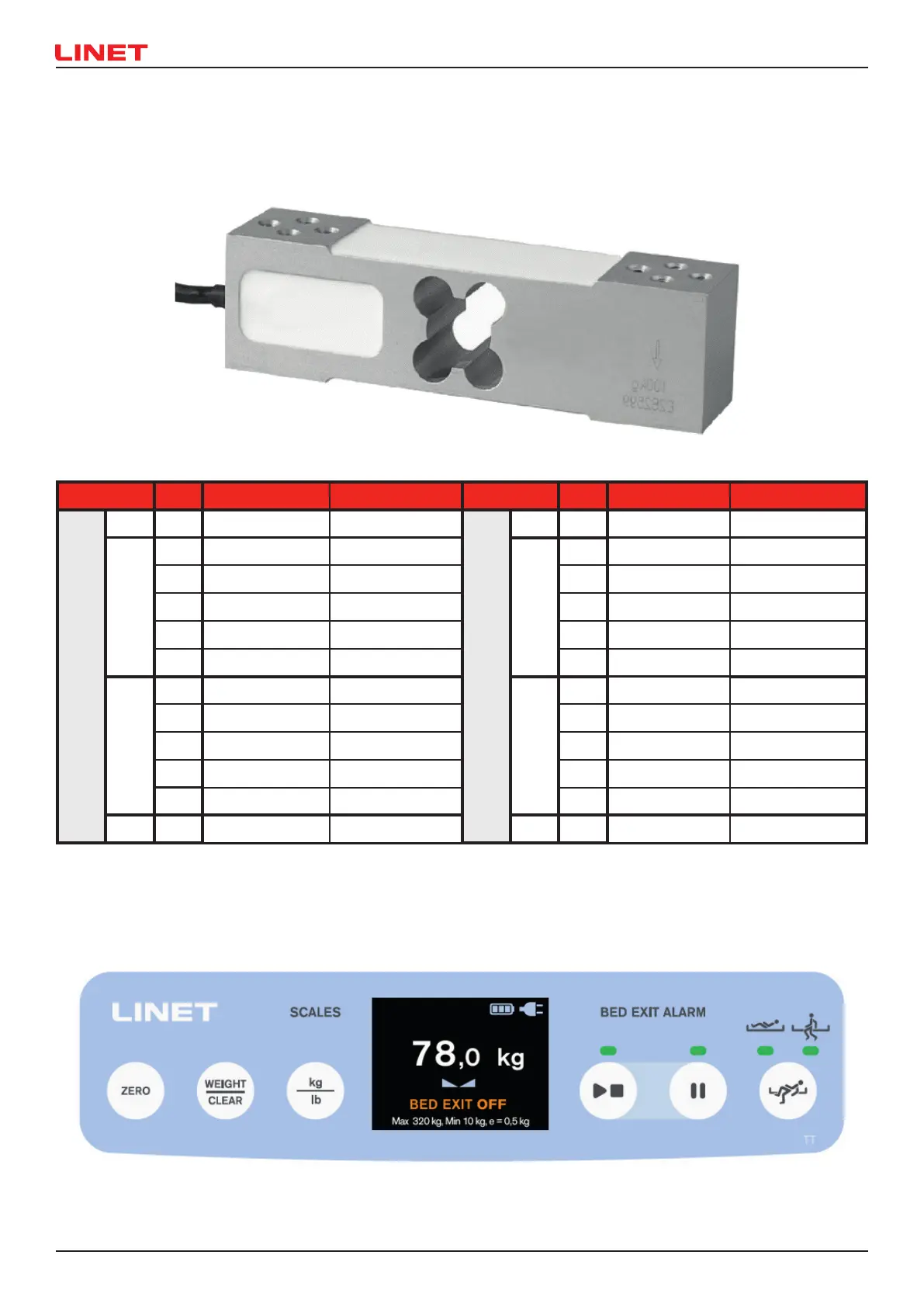

Obr. 26 Tensometer
PIN Meaning Wire color PIN Meaning Wire color
Sensometers T3, T4
1 N/A N/A
Sensometers T1, T2
1 N/A N/A
T4
2 T4 + supply yellow
T2
2 T2 - shielding transparent
3 T4 - output white 3 T2 - supply brown
4 T4 + output green 4 T2 + output green
5 T4 - supply brown 5 T2 - output white
6 T4 - shielding transparent 6 T2 + supply yellow
T3
7 T3 + supply yellow
T1
7 T1 - shielding yellow
8 T3 - output white 8 T1 - supply white
9 T3 + output green 9 T1 + output green
10 T3 - supply brown 10 T1 - output brown
11 T3 - shielding transparent 11 T1 + supply transparent
12 N/A N/A 12 N/A N/A
3.5.5 Display module
It serves as a user interface for displaying information via LCD and LED, and for user input via buttons on the membrane keyboard.
Obr. 27 Keyboard of display module
