D9S001ES1-0101
19
Scale
module
Scale
module
Battery
module
Battery
modul
Battery
module

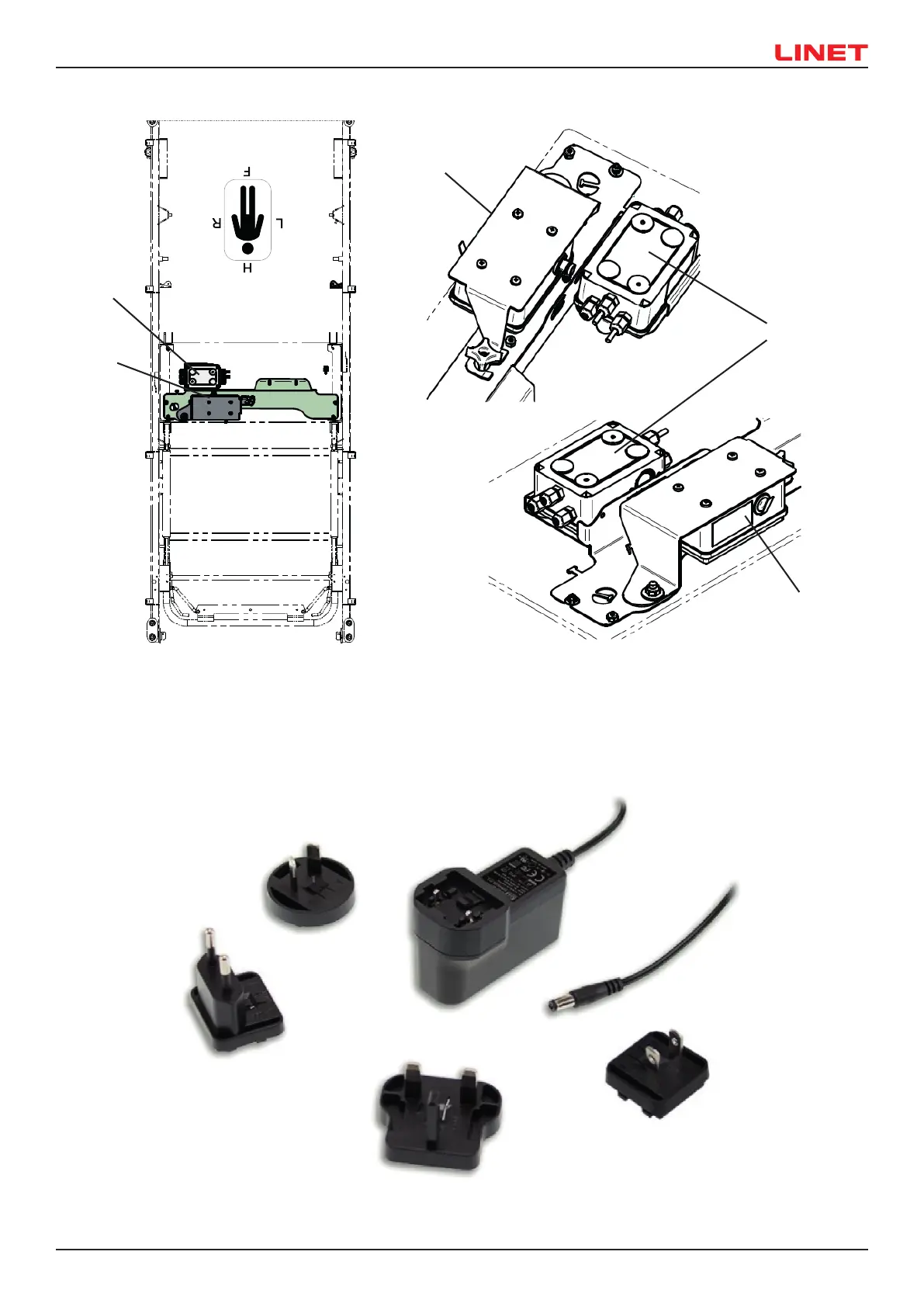

Fig. 24
Location of the scale and battery module
(bottom view)
3.5.3
Power adapter
Provides el. energy to supply the L
W 20 system from the mains. It is connected to the bed via a user-detachable connector
. The
adapter is equipped with interchangeable terminals for various types of el. plugs.
Obr
. 25
Power adapter along with optional terminals
18
20
