4. Align the three holes in the Power Tongue Jack
mounting plate (Fig.16A) with the three holes in the
coupler (Fig.16B).
5. Secure the Power Tongue Jack to the coupler plate with
the three previously used bolts (Fig.17A).
6. Connect the 2-pin Deutsch Connector to the
Power Tongue Jack wires and run the harness to the
compartment where the controller will be mounted.
See Installing the Controller section.
7. Connect the power wire from the Power Tongue Jack to
a grounded 12V power supply on the trailer.
8. The Power Tongue Jack must be wired through a 30
amp fused circuit, supplied on the jack.
9. Reattach the footpad to the jack leg by sliding the
footpad back over the bottom of the jack leg. Secure
footpad with the clevis pin (Fig.14B) and hairpin cotter pin
(Fig.14D), which were previously removed (Fig.14).

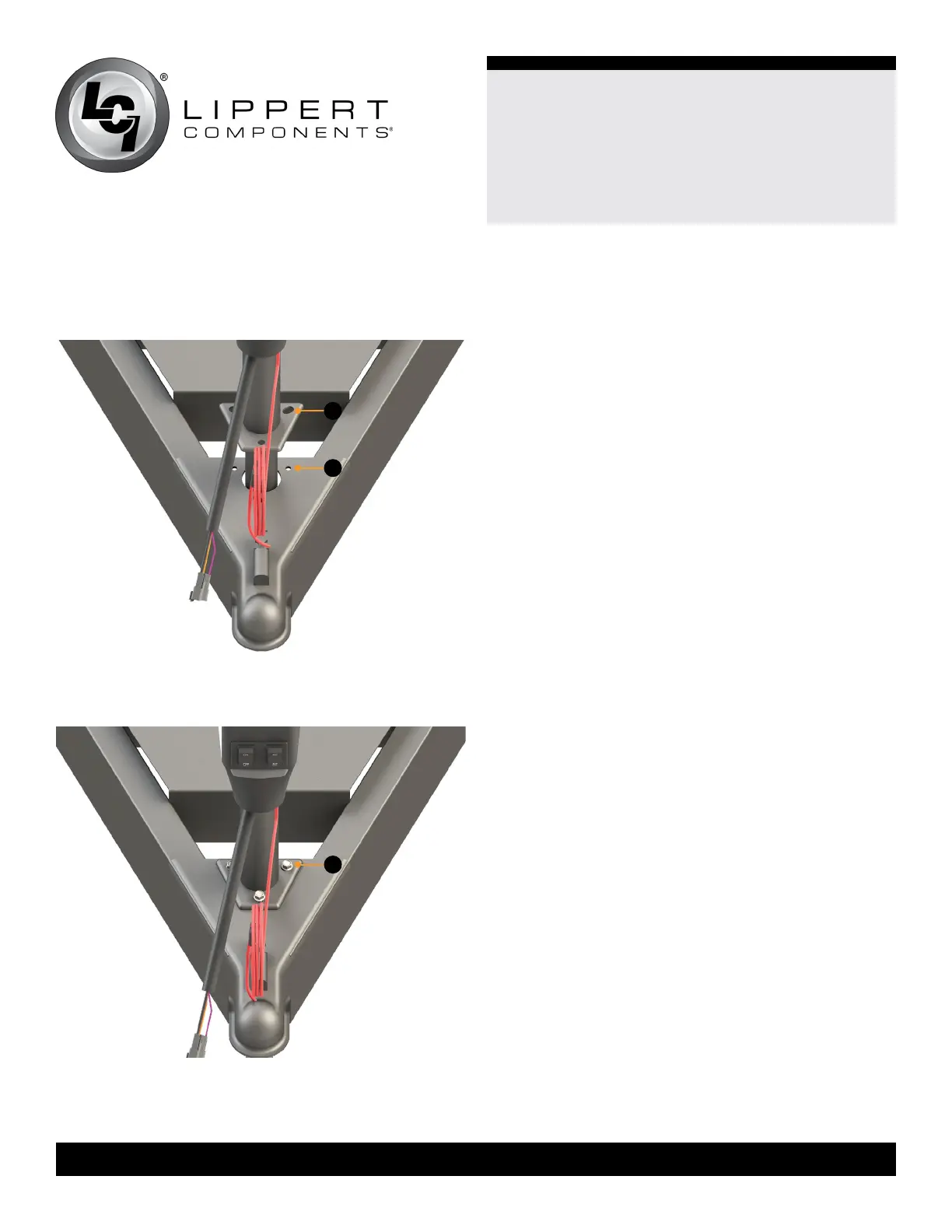

Fig.16
Fig.17
A
B
A
