lci1.com 574-537-8900 Rev: 03.02.21

Ground Control

Leveling OneControl

Touch Panel (3K-5K)

Installation and Owner’s Manual

(For Aftermarket Applications)

CCD-0002700

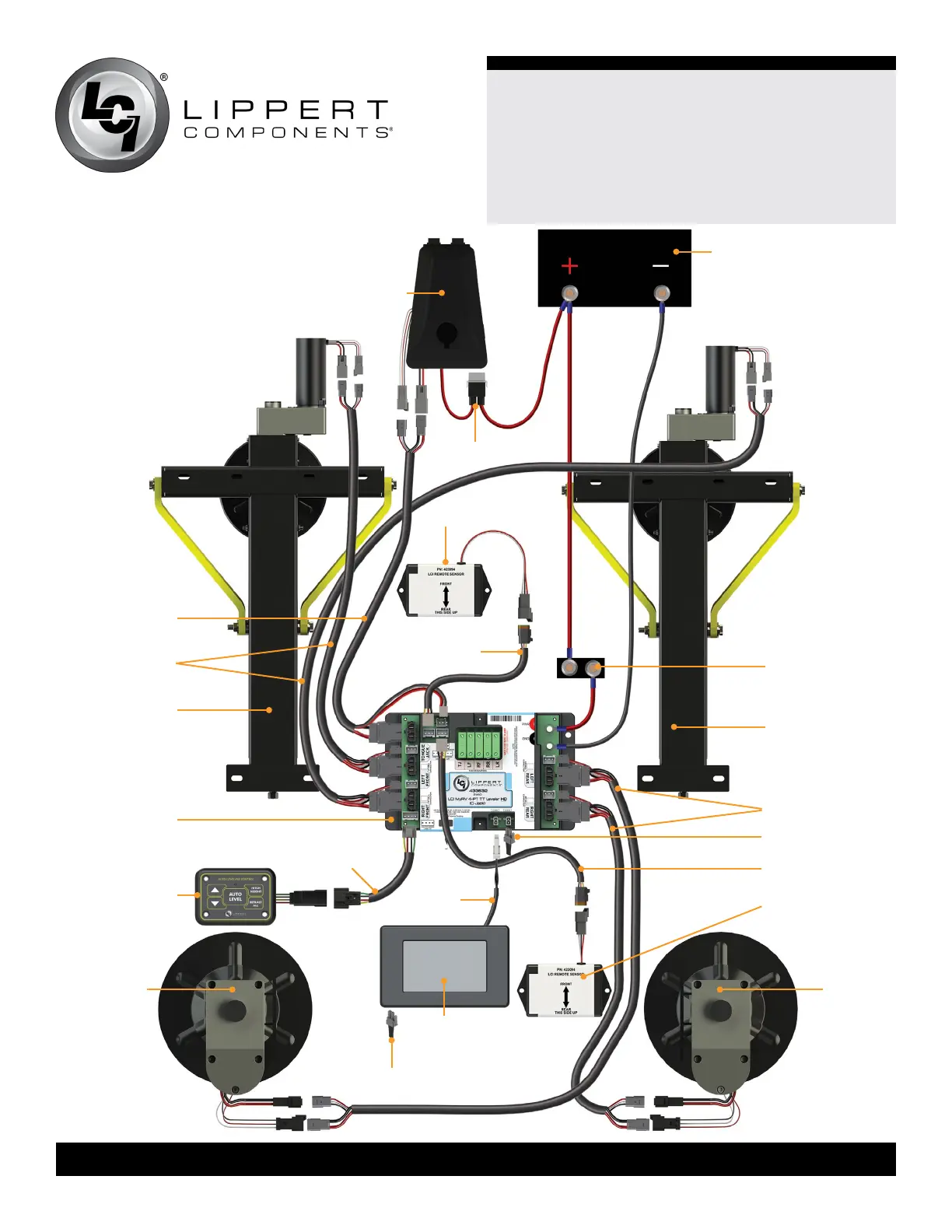

Wiring Diagram

battery

power tongue jack

30 AMP fuse

front

leveling sensor

front leveling

sensor harness

tongue jack

harness

front jack

harness

front left

jack

controller

recommended 50

to 100 amp circuit

protection per

RVIA standards

(OEM supplied)

front right

jack

rear jack harness

auto leveling

control touchpad

touchpad

harness

canbus

power

connector

rear left

jack

OneControl

touch panel

rear leveling

sensor harness

rear right

jack

rear leveling

sensor

terminating resistor

Default Chapter1
- Table of Contents1
Introduction2
Safety2
- Trailer Weight Rating2
Resources Required3
Parts List4
Measuring Departure and Approach Angle6
Mounting Brackets and Jack Installation7
- Front Bolt on Spacer Kit and C-Jack Installation7
- Rear Mounting Bracket and 5K Short Jack Installation9
Power Tongue Jack Installation10
Mounting Position and Installing Leveling Sensors12
- Installing Leveling Sensors12
Controller Installation14
Onecontrol Touch Panel/Pad Installation14
- Onecontrol Touch Panel14
- Auto Leveling Control Touch Pad15
Power Tongue Jack Operation16
- Connecting to Tow Vehicle16
- Unhitching from Tow Vehicle16
Auto Leveling Control Touch Pad Diagram17
Auto Leveling Control Touch Pad Operation17
- Basic Power Tongue Jack Operation17
- Installation and Owner's Manual17
- (For Aftermarket Applications)17
Onecontrol Touch Panel Diagram19
Onecontrol Touch Panel Operation20
- OCTP Basic Jack Operation in Standard Mode20
- OCTP Basic Jack Operation in Manual Mode20
- OCTP Standard Mode Features21
- OCTP Manual Mode Features21
- OCTP Unhitching from Tow Vehicle21
- OCTP Auto Leveling22
- OCTP Hitch Recognition22
Onecontrol App Touch Panel Diagram23
Onecontrol App Operation24
- Accessing the Onecontrol App24
- Onecontrol App Jack Operation in Standard Mode25
- Onecontrol App Jack Operation in Manual Mode25
- Onecontrol App in Standard Mode Features26
- Onecontrol App in Manual Mode Features26
- Onecontrol App Unhitching from the Tow Vehicle26
- Onecontrol App Auto Leveling27
- Onecontrol App Hitch Recognition27
Auto Leveling Control Touch Pad Troubleshooting28
- Red/Green LED Indicator28
- Error Display in Octpanel or Onecontrol App28
OCTP Error Message Troubleshooting29
- Onecontrol Touch Panel Error Messages29
- Special Jack Error Codes on Onecontrol Touch Panel or Onecontrol App30
Manual Override31
- Power Tongue Jack Manual Override31
- C-Jacks Manual Override31
- 5K-Short Jack Manual Override32
Zero Point Calibration33
Wiring Diagram34
Preventive Maintenance35
Notes36
