Lippert Components ground control TT User Manual

20
lci1.com 574-537-8900 Rev: 03.02.21
Ground Control
®
TT
Leveling OneControl
®
Touch Panel (3K-5K)
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0002700
OneControl Touch Panel
Operation
MAKE SURE TO PARK THE TRAILER ON SOLID
AND LEVEL GROUND. PRIOR TO OPERATION,
CLEAR ALL JACK LANDING LOCATIONS OF DEBRIS
AND OBSTRUCTIONS. THE LOCATIONS SHOULD
ALSO BE FREE OF SURFACE DEPRESSIONS AND
MOISTURE. WHEN PARKING THE TRAILER ON
EXTREMELY SOFT SURFACES, UTILIZE LOAD
DISTRIBUTION PADS UNDER EACH JACK.
PEOPLE AND PETS SHOULD BE CLEAR OF
THE TRAILER WHILE THE LEVELING SYSTEM
IS OPERATED. NEVER LIFT THE TRAILER
COMPLETELY OFF THE GROUND. LIFTING THE
TRAILER SO THE WHEELS ARE NOT TOUCHING
THE GROUND WILL CREATE AN UNSTABLE AND
UNSAFE CONDITION.

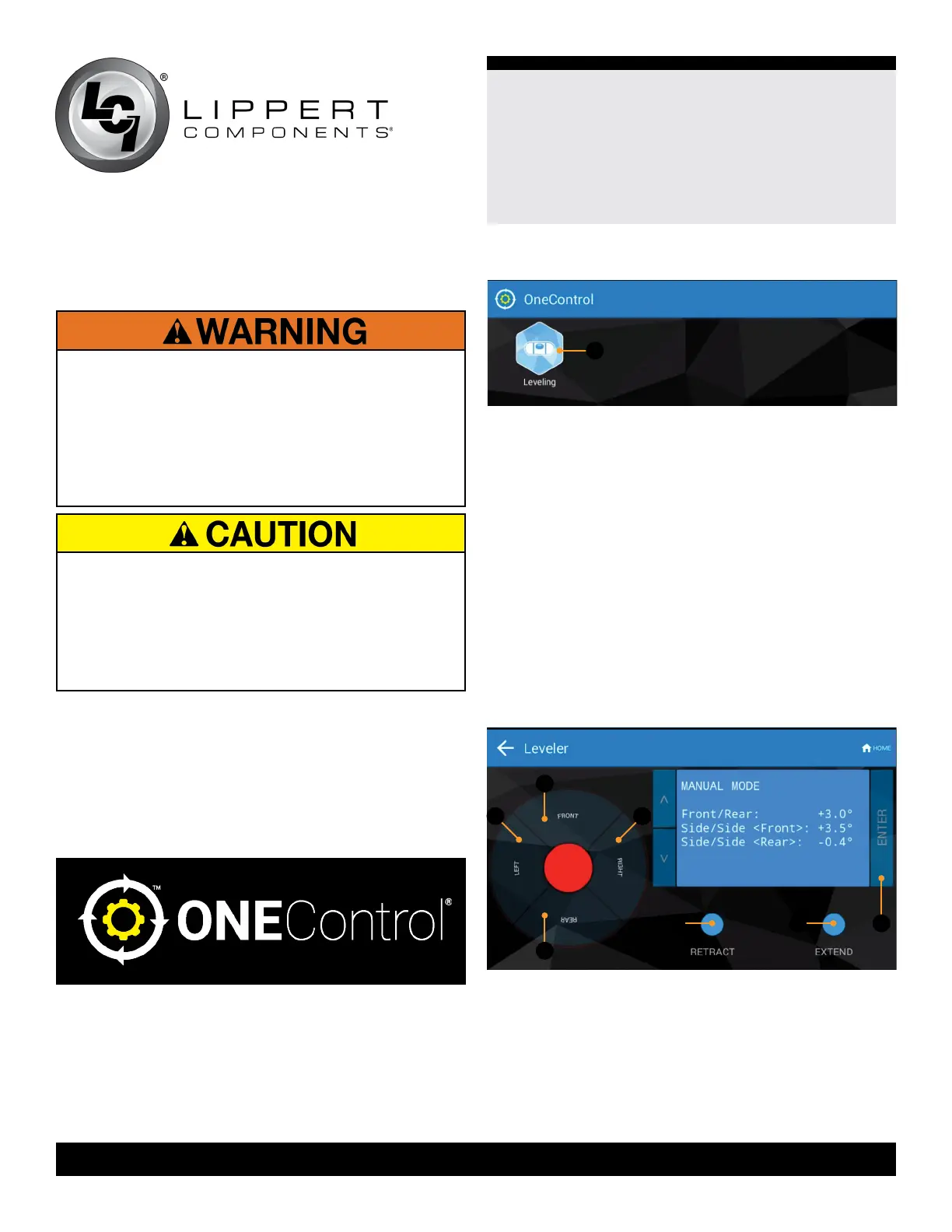

OneControl Touch Panel Basic Jack Operation
in Standard Mode
To reach Standard Mode (Fig.32) for leveling:
1. Power on the OneControl Touch Panel (Fig.32L).
The touch screen will open up to the OneControl logo
(Fig.33) and then the access screen to various functions,
including leveling, choose the Leveling icon (Fig.34A).
Fig.33
Fig.34
A
2. The screen will show the system menu (Fig.32) for
Standard Mode. The Power Tongue Jack can be
extended/retracted in Standard Mode. Front and rear
jacks cannot be operated in standard mode.
OneControl Touch Panel Basic Jack Operation
in Manual Mode
To reach Manual Mode for leveling:
1. While in Standard Mode (Fig.32), use the arrows
(Fig.32B) to scroll to Manual Mode (Fig.32G). Press ENTER
button (Fig.32H).
2. Front and rear jacks can be operated in Manual Mode.
The Power Tongue Jack cannot be operated in
Manual Mode (Fig.35).
Fig.35
D
A
B
C
E F G
