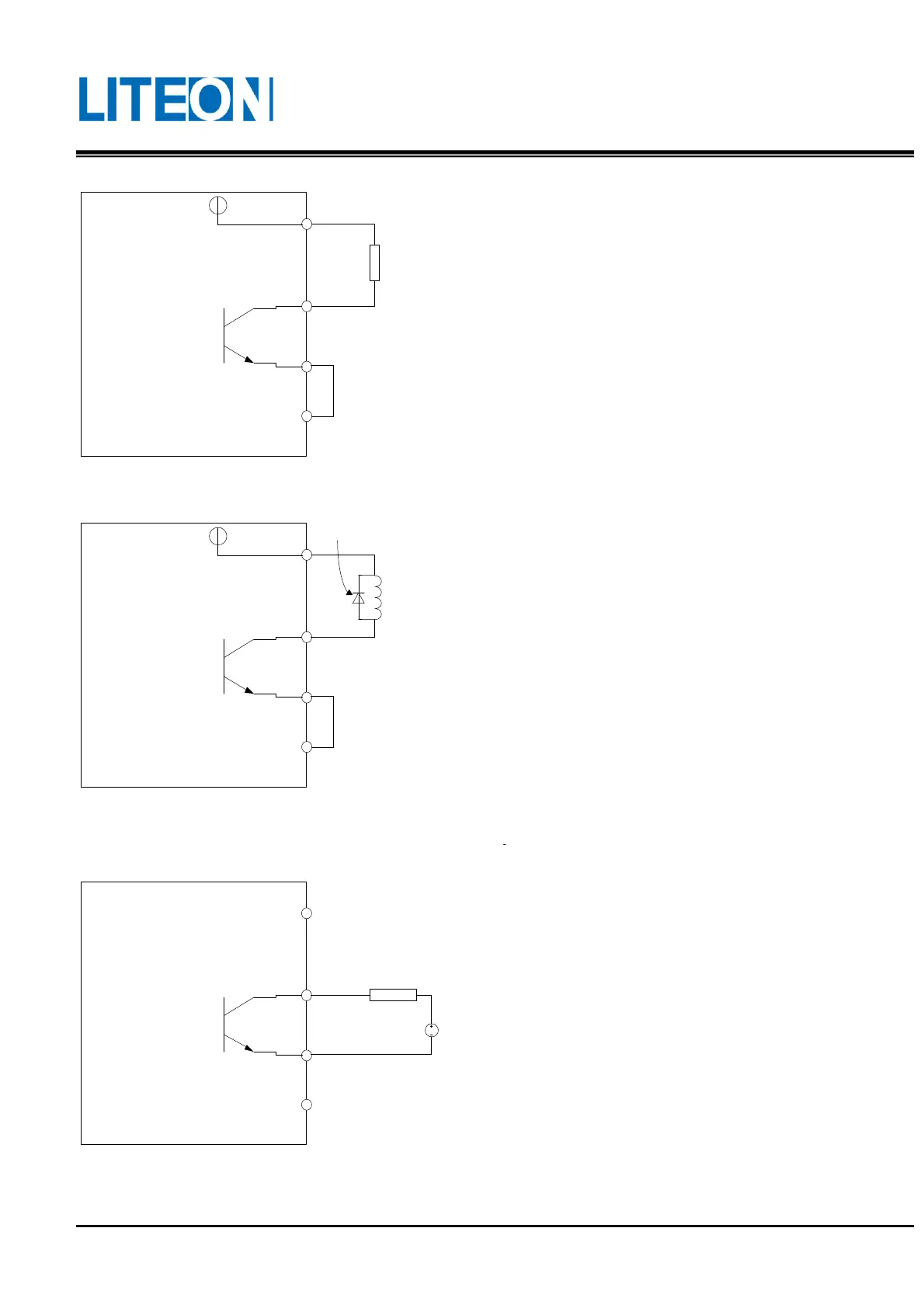

DO wiring, internal power supply, normal load
DO wiring, internal power supply, inductive load
DO wiring, external power supply, normal load
VDD 17
DOX+
DOX-
COM-
DC 24V
DOX : X=1,2,3,4,5,6
VDD 17
DOX+
DOX-
COM-
DC 24V
DOX : X=1,2,3,4,5,6
二極體極性不可放錯
DOX+
DOX-
DOX : X=1,2,3,4,5,6
24V
VDD 不可接至 DOX
The diode must be put in the
right direction.
The VDD must not be
connected to the DOX.
