Lite-On Technology Corp.

Industrial Automation

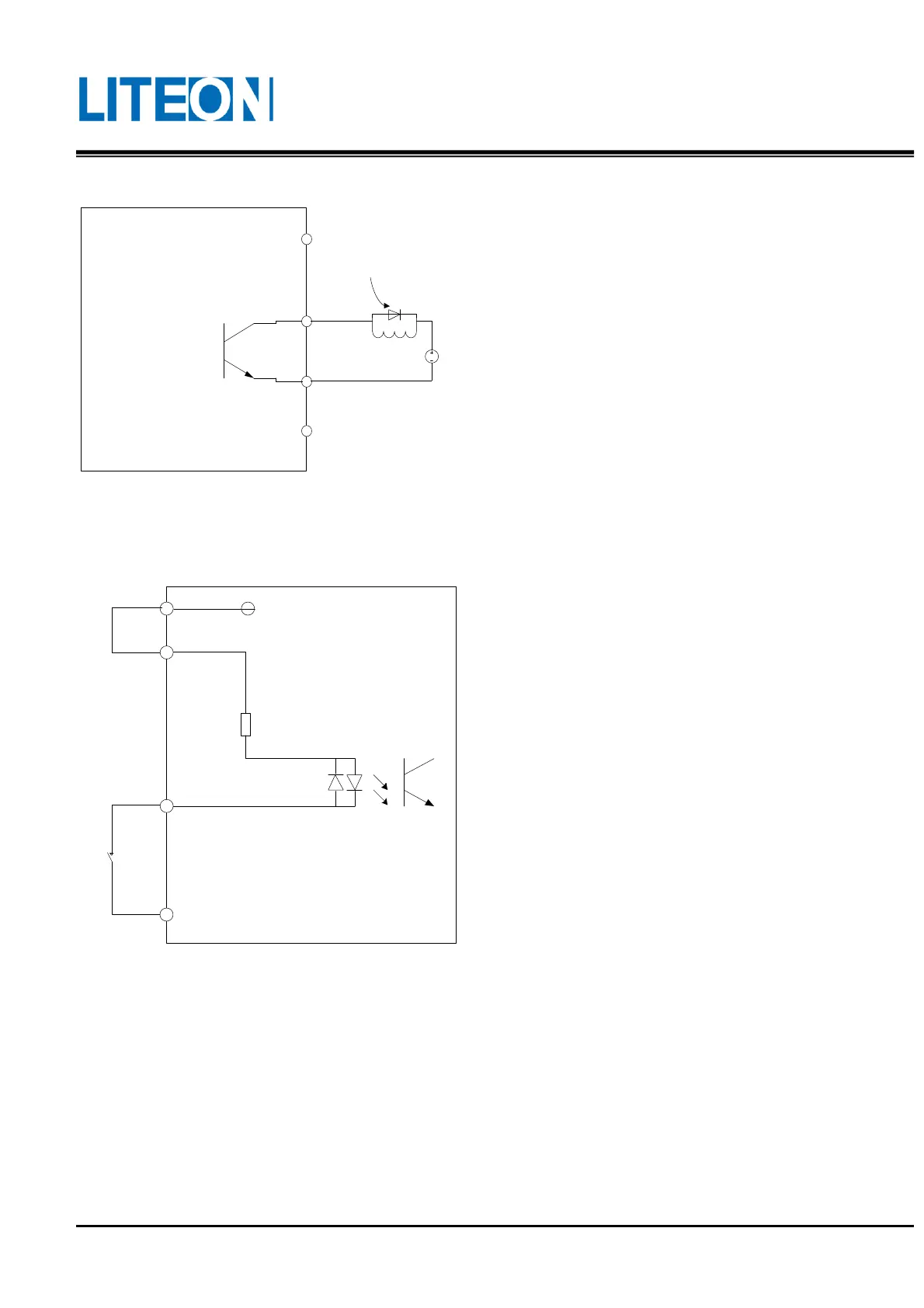

DO wiring, external power supply, inductive load

DI wiring, internal power supply, SINK mode

DOX+

DOX-

DOX : X=1,2,3,4,5,6

二極體極性不可放錯

24V

VDD 不可接至 DOX

4.7KΩ

Servo Driver

DC 24V

COM-

COM+

SON

The VDD must not be

connected to the DOX.

The diode must be put in

the right direction.
