LMI Selcom SLS 5000 - Sls2401; Sls2008; Analog Output

03-09-05 12
SLS2401
MR
(m m)
SO
(m m)
Spot size
at
SO (mm)
Beam
divergence
(rad)
Resolu tion
1 LSB= (um)
20 50 0,06 0,060 5,00
50 80 0,09 0,038 12,50
SLS2008
MR
(mm)
SO
(mm)
Spot size
at
SO (mm)
Beam
divergence
(rad)
Resolution
1 LSB=
(um)
325 1350 2,0 0,004 81,25
325 1600 2,0 0,003 81,25
325 1800 2,0 0,003 81,25
325 2010 2,0 0,002 81,25
Analog Output
Output signal interface: Analog
current source
external impedance:
max 500 Ω
max cable length: 100 m
selectable at delivery
(see manufacturers
serial number label):
0-20 mA
Far end value: 0 mA
Close end value: 20 mA
Resolution: 4.88 microA/LSB
or 4-20 mA
Far end value: 4 mA
Close end value: 20 mA
Resolution: 3.90 microA/LSB
time [ms]
Tc
Td
Step function
Analog output

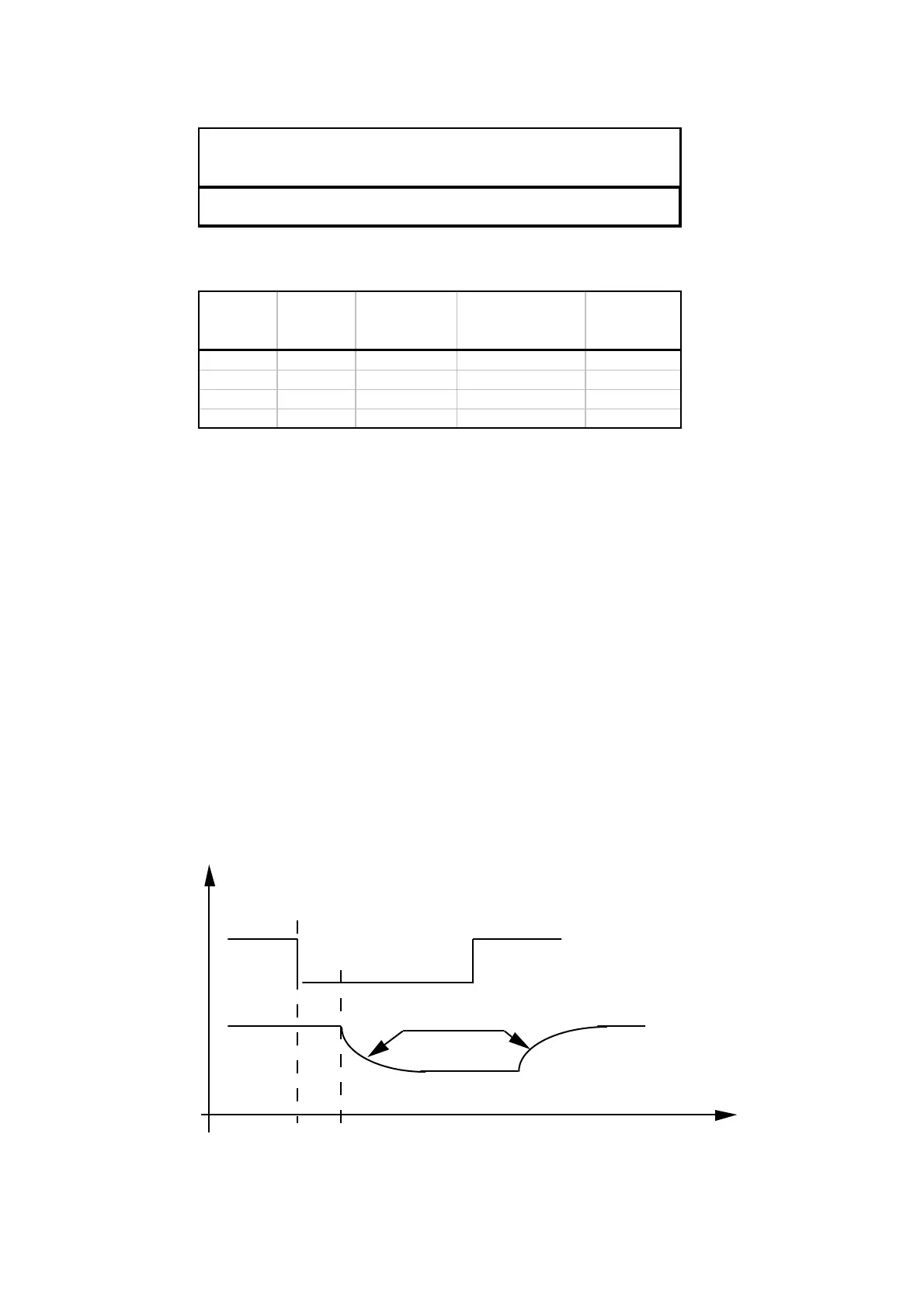

Figure 8: The step response
