03-09-05 51
Appendix D, SLS power unit 24
The SLS Power unit 24 can supply one or two SLS sensor sensors.
The customer must provide a power cable of suitable length, fitting the power
receptacle. Demands on additional cables to the sensor(s) or to registration
equipment according to chapter- Cable requirements.
Technical specification:
Dimensions:
Length: 218.6 mm (8.5 inches)
Height: 62.8 mm (2.5 inches)
Width: 143.7 mm (5.6 inches)
Weight: 1.4 kg (3.1 lbs)
Environmental conditions:
Protection class: IP50 NEMA 1
Temperature:
Operating: 0-50 °C (32-120°F)
Storage: -30-70 °C (-20-160°F)
Power requirements:
Input voltage: 110/230 VAC (± 10 %)
Line frequency: 50/60 Hz
Power consumption: 40 W (50 W peak at startup)
Front panel:
POWER ON
AB

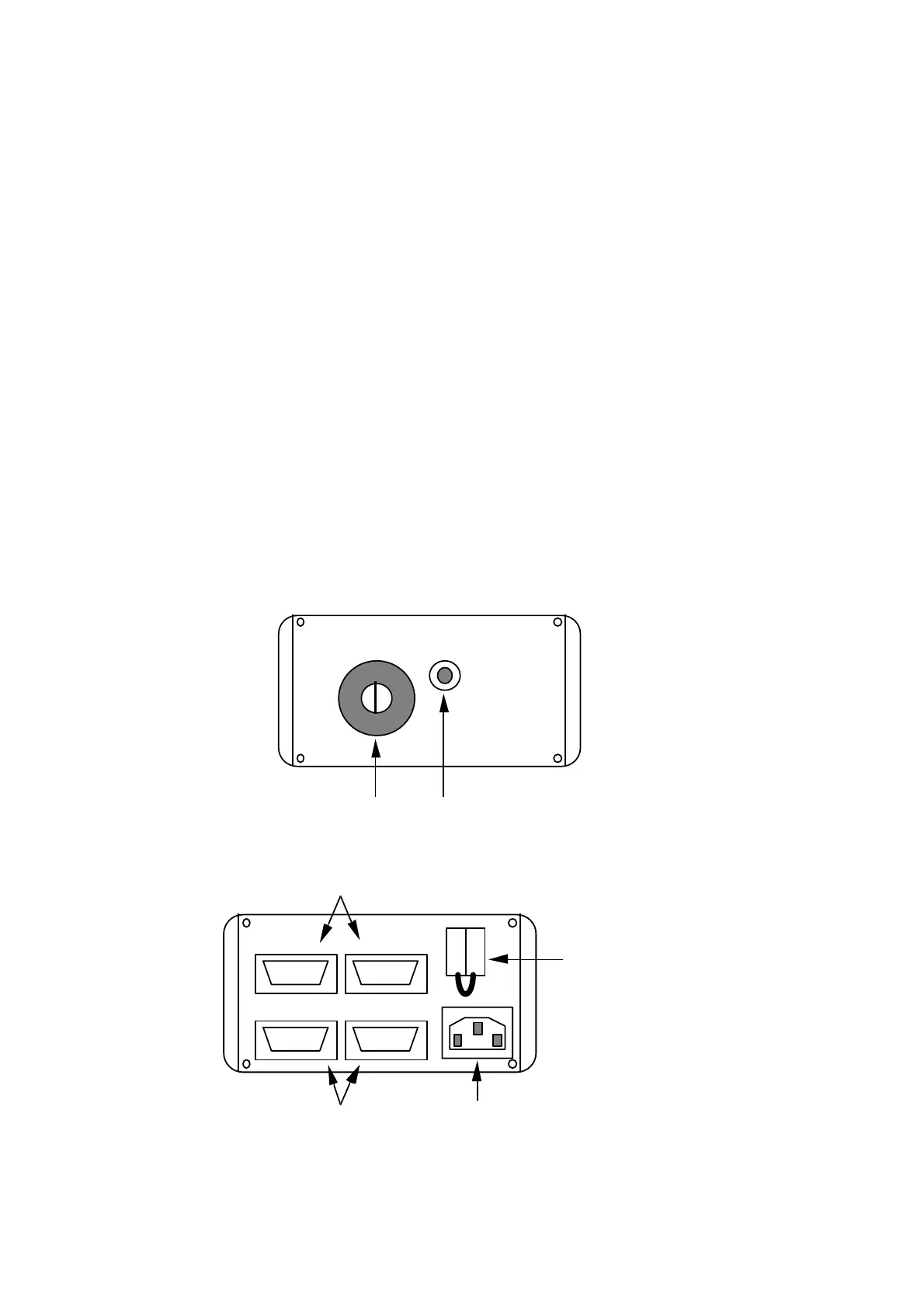

Figure 32: Front panel
A Key switch. The key is removable when power is off
B Power ON LED. Illuminated when power is turned on. Color: Green.
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
. . . . .
SLS1 SLS2
H2H1
LRC
A
B
C
D
Figure 33: Rear panel
A Power receptacle
B Laser Remote Control, LRC connector Screw terminal with a jumper
controlling the LASER ON signal to both SLS1 and SLS2.The lasers are on
