1. Vertical Saddle adjustment
2. Saddle angle adjustment
3. Horizontal saddle adjustment
4. Handle for horizontal adjustment of the handlebar
5. Handle for adjusting the height of the handlebar
6. RPM set: display for RPM and Workload standard supplied with the Lode Excalibur
Sport
7. RPM/workload connector: connector for the rpm set
8. Main unit panel: connectors and communication ports
9. Front wheels to move the ergometer when ergometer is lifted with horizontal saddle
track
2.2 Control panel Excalibur Sport
The control panel consists of the following elements:
1. LED indicator for RPM
2. Display A (2x16 characters) directed to test subject
3. down button
4. up button

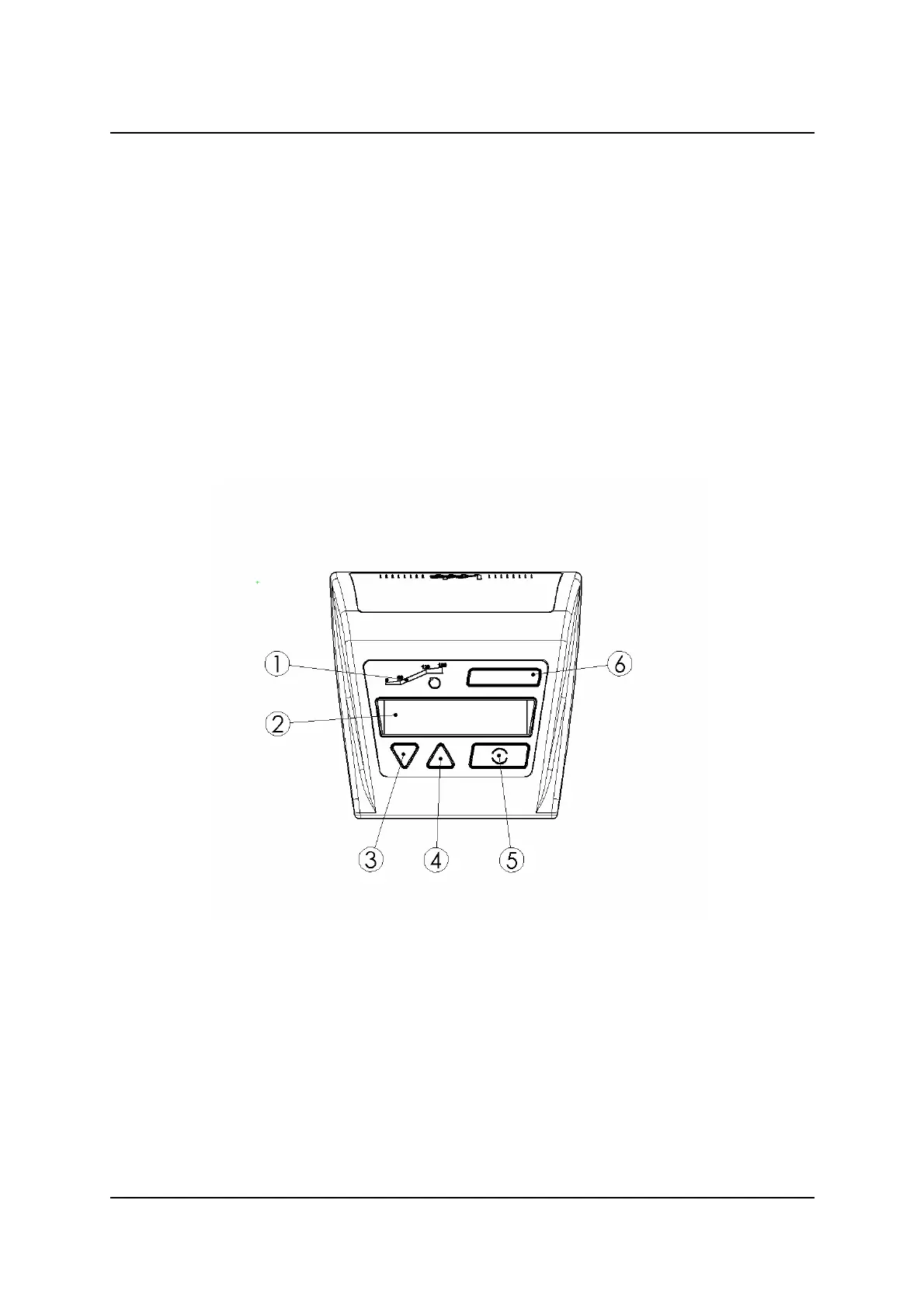

Fig 7: Control Panel basic Excalibur Sport
