Lode BV Excalibur Sport
17
2.5 BP panel
To use the Blood pressure measurement option you need option 928818 (3.2). The cuff
connections are shown in Fig. 9 Main unit panel connections.
2.6 Adjustments
The ergometer is adjustable to test subjects of all sizes and ages. See §2.1 figure 6 item 1 – 5.
For the exact dimensions of the adjustability see figure 10.
2.7 Moving the ergometer
Moving the ergometer can be done by lifting the horizontal saddle track (fig 6). The two
transport wheels on the front side of the ergometer can be used to ride the ergometer to its
location.

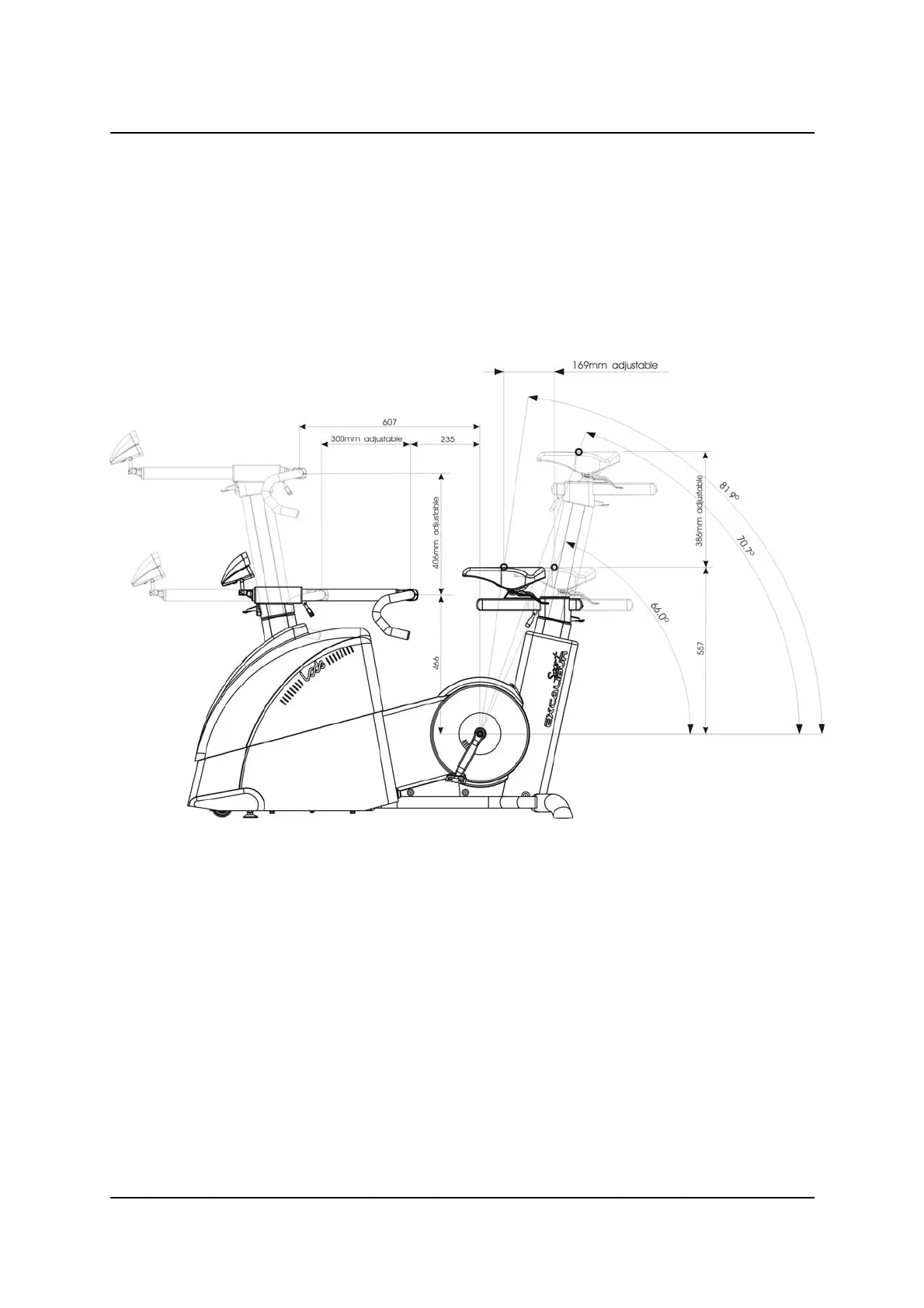

Fig. 10 Dimensions
