2.4 Main unit panel
The main unit panel of the Excalibur Sport contains the following elements:
1. Control unit connector
2. RS232 input
3. RS232 output
4. Analog i/o
5. Microphone connector BP cuff
6. Airhose connector BP cuff
7. Fuses
8. Protective Earth connector
9. Mains connector
10. Mains switch
Note: The voltage selector (115/230VAC) is inside the ergometer. The main unit panel has to
be unscrewed. Voltage selection should be done by a technician!

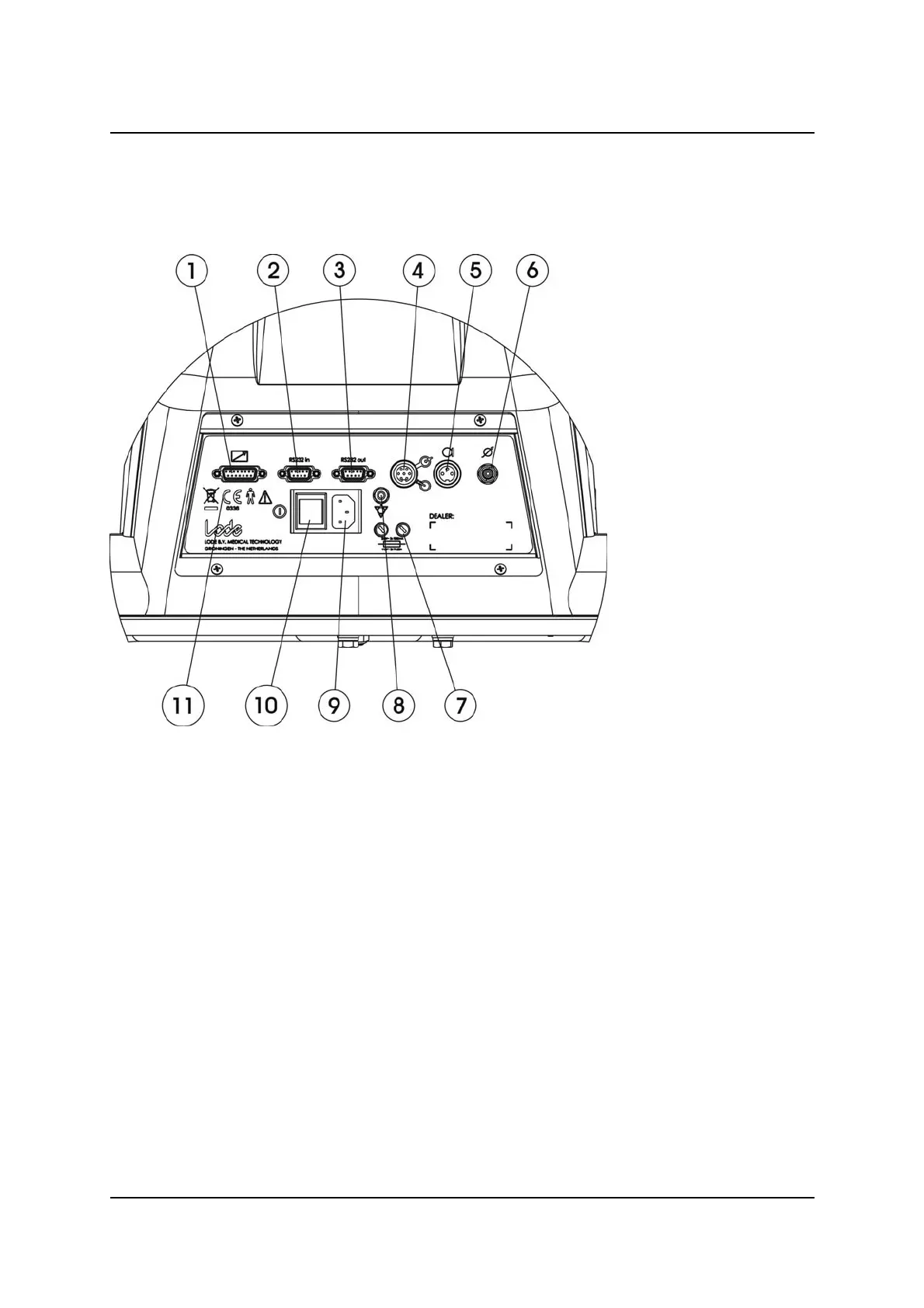

Fig. 9 Main unit panel connections
