C.3 Instructions for installation
1. Handlebar
2. Heart rate receiver box
3. RPM set: display for RPM and Workload
The following steps have to be executed to install the Excalibur Sport ergometer properly:
1. Place the ergometer in its operating location.
2. Check (with your supplier) whether the voltage set for the ergometer is set correct.
3. Place the control unit in its operating location
4. Insert the connector of the ergometer cable into the control unit connector of the
ergometer (item 2 Fig. 9 Main unit panel connections).

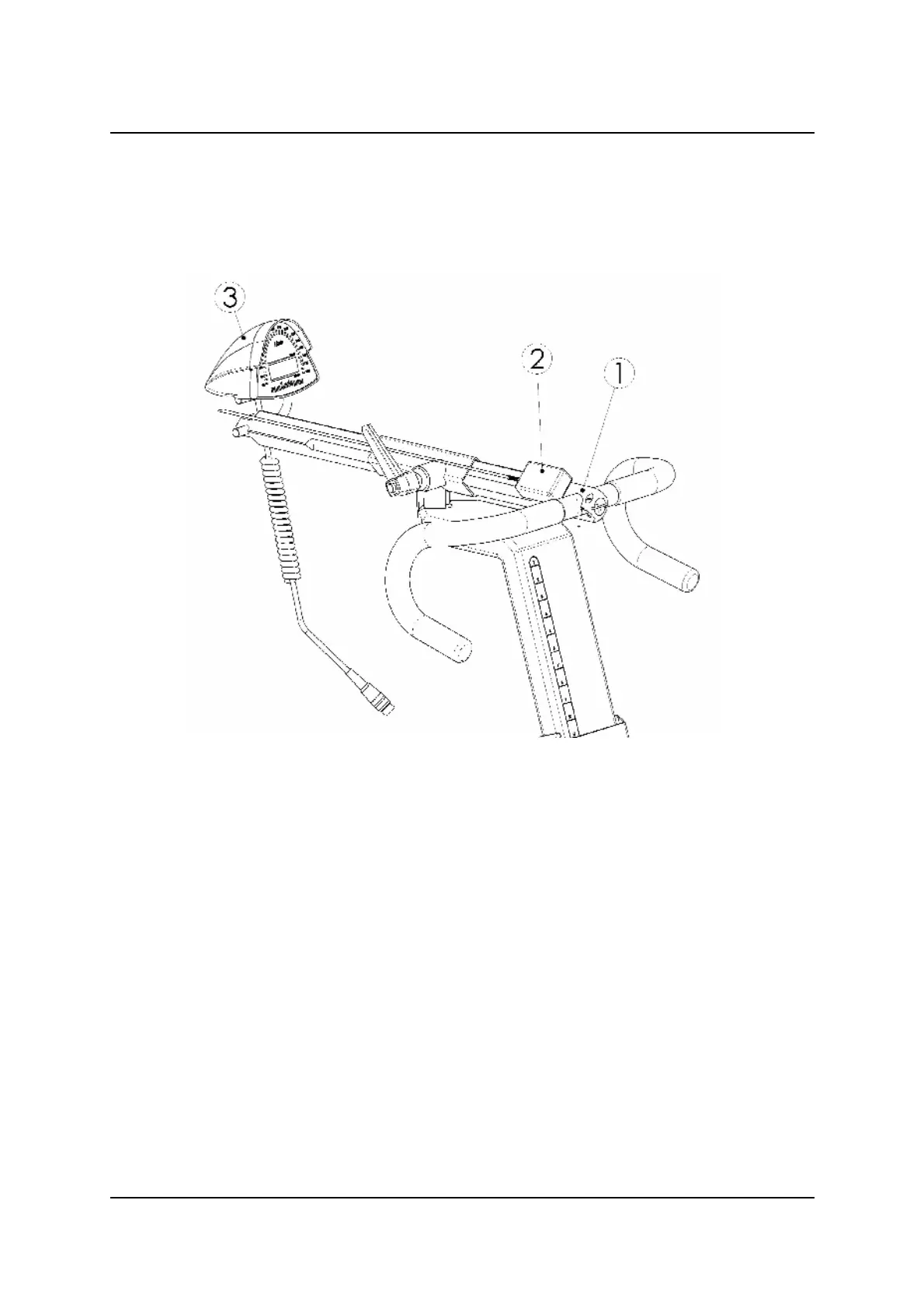

Fig 12: Heart rate receiver placement
