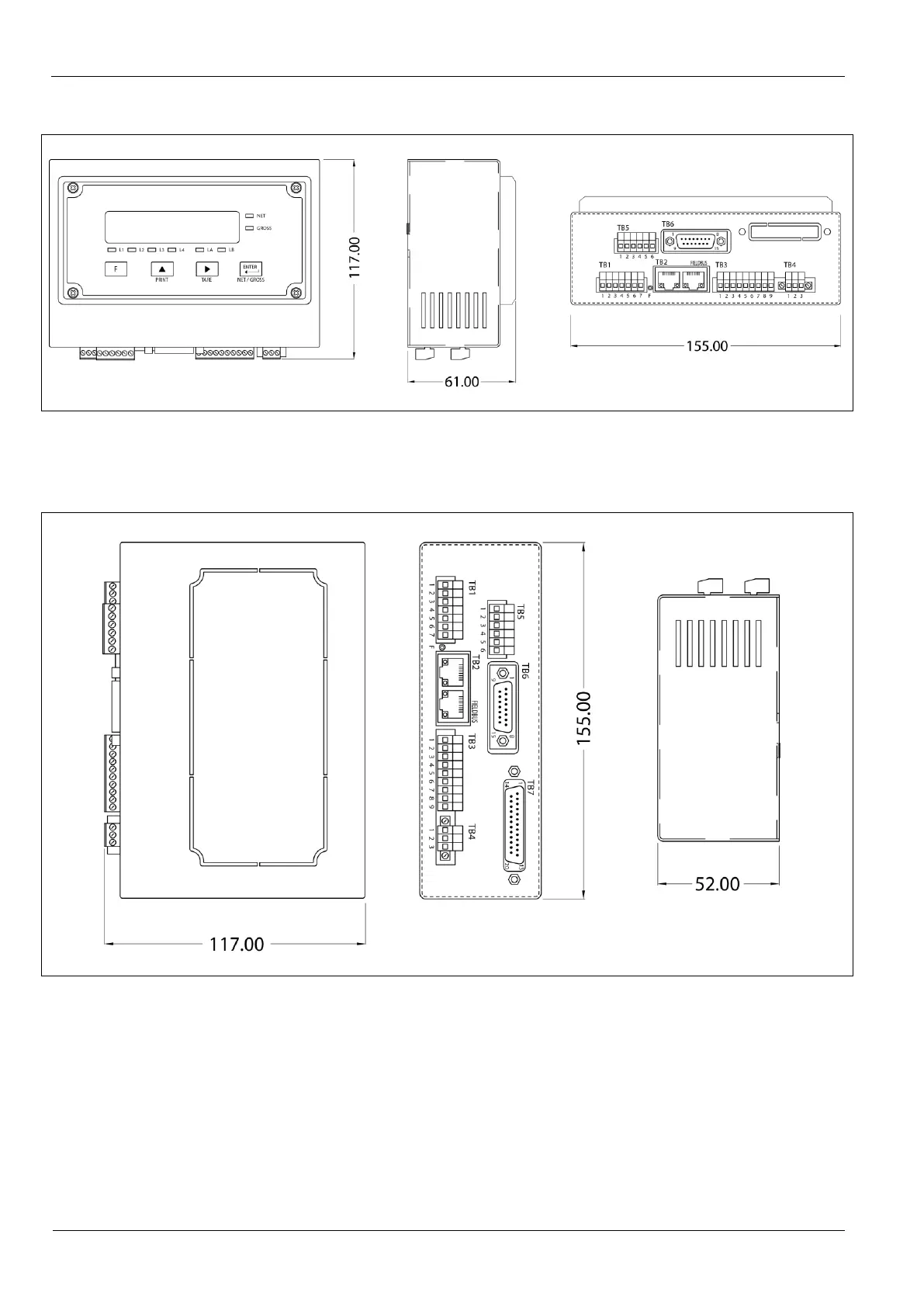

Figure 4. DLC
NET
-WM mechanical drawing
DLC
NET
-DIN has a 20 poles connector for an external keyboard (DLC-NET-KB)
and can be installed vertically on a DIN rail as well (Figure 5).
Figure 5. DLC
NET
-DIN mechanical drawing
