3.9 RS-232 connection for printer

It is possible connect the DLC

NET

to a thermal printer with RS-232 connection.

Connections are described in Figure 25 and Table 17. The configuration of the

serial port to be set on the printer must be that of Table 18.

It is necessary the expansion board -EB.

Table 17. RS-232 connection to the printer

Pin on DLC

NET

Pin on printer

TB5-1

GND

TB5-2 (RX instrument)

TXD printer

TB3-3 (TX instrument)

RXD printer

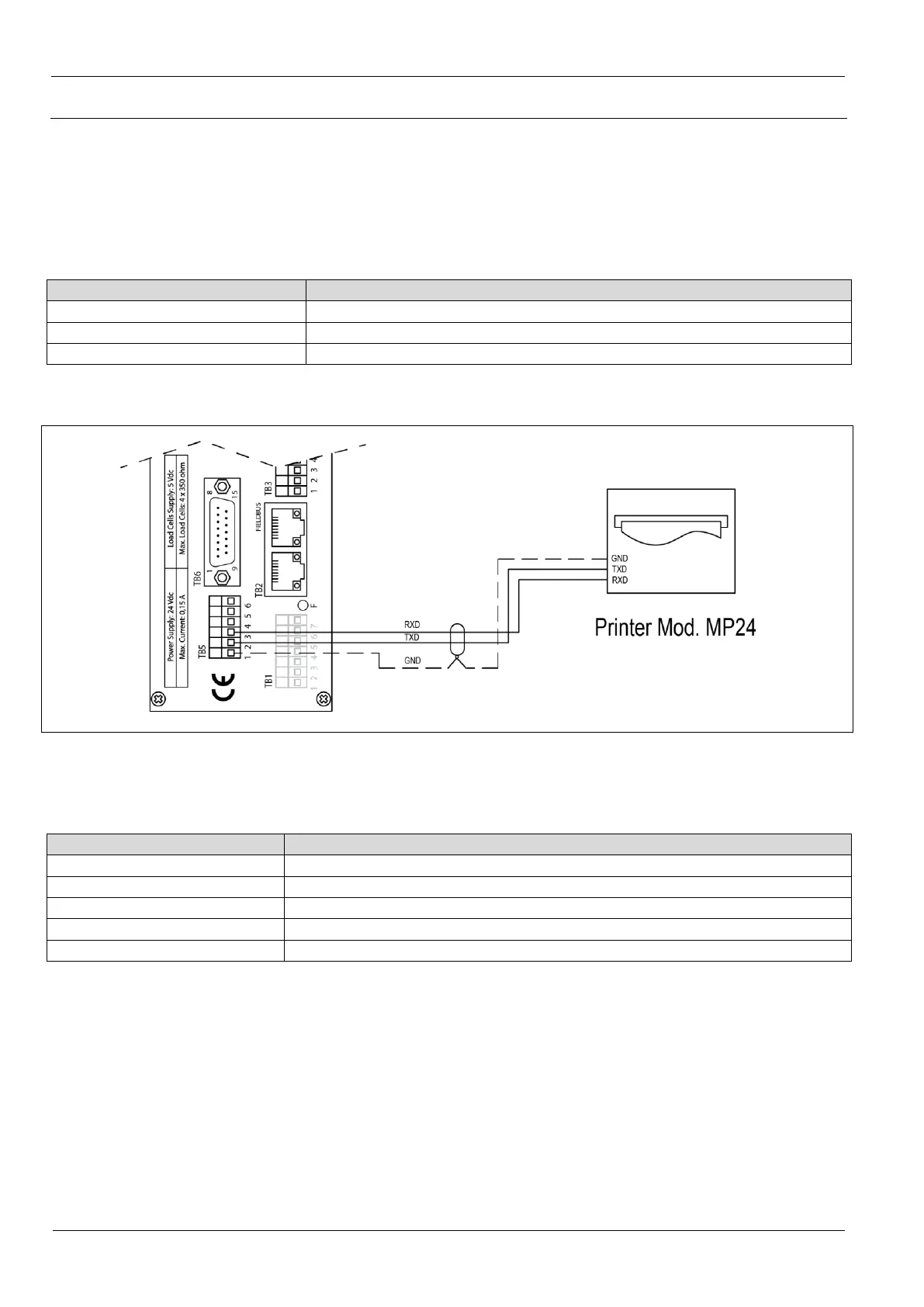

Figure 25. Printer connection through RS232

The RS232 serial port of the printer must be configured as follows in order to be

compatible with the DLC

NET

Table 18. Serial port parameters to be set on the printer

Parameter

Value

Transmission

Asynchronous

Baud rate

9600

Word

7 bits

Stop bit

Parity

Even
