USE AND MAINTENANCE MANUAL – DLC

NET

Series

Installation

LOGIC S.r.l. - M0145Db.docx

Mod. L0006A01 of 30/05/2016

Page 21 of 78

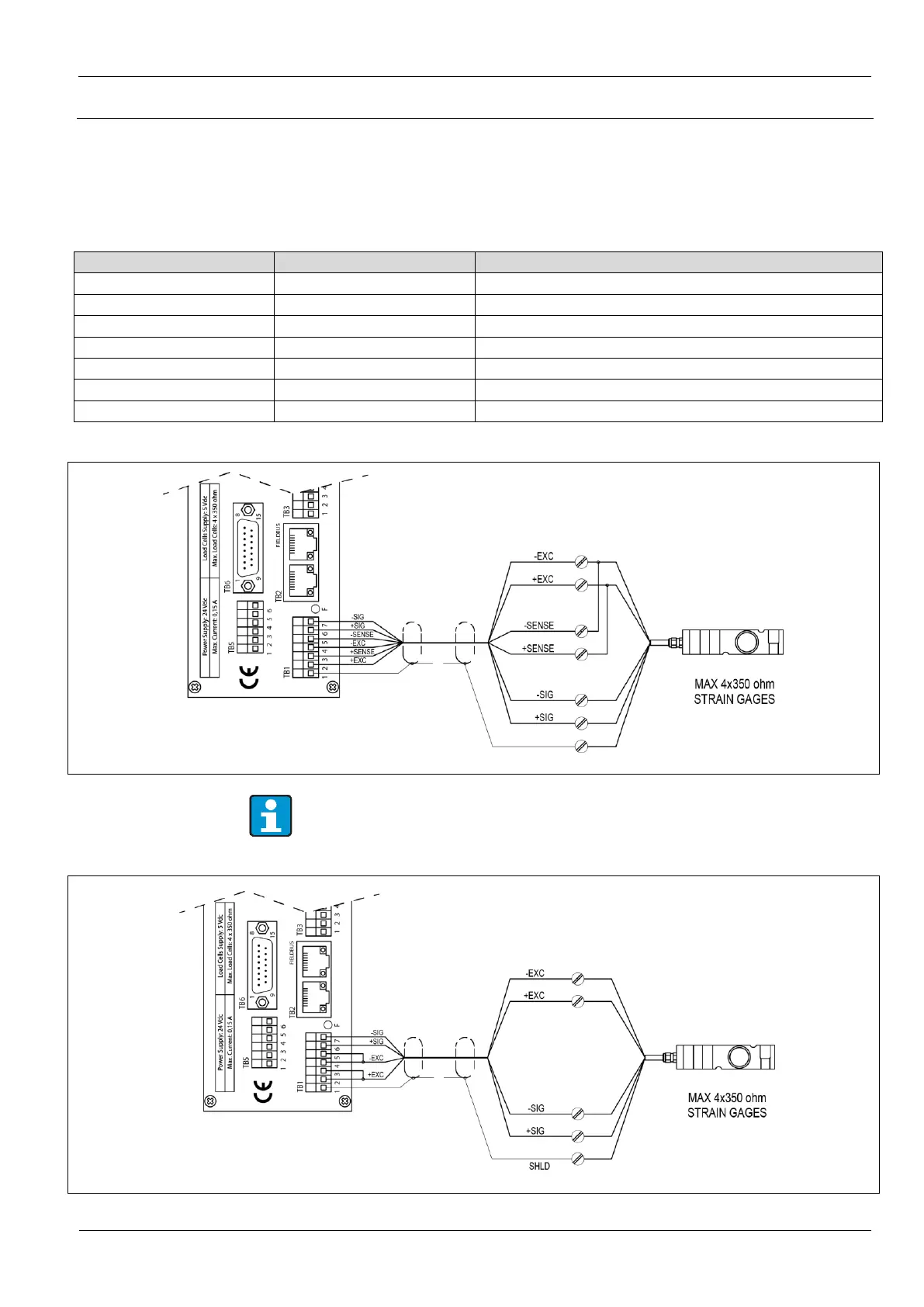

3.5 Load cells connection

3.5.1 Load cells connection

in safe area

Make connections to TB1 connector according to the following table:

Table 4. Load cells connection

Terminal

Color code CAB-TS6

Connection

TB1-1

GND / Shld

cable shield

TB1-2

Red

+ excitation

TB1-3

Green

+ sense

TB1-4

Blue

- excitation

TB1-5

Grey

- sense

TB1-6

White

+ signal

TB1-7

Yellow

- signal

Figure 11. Load cells connection 6 wires

For connections with length less than 8 meters it is possible use the

four-wire connection shown below.

Figure 12. Load cells connection 4 wires
