3.7.2 Profinet

The instruments of DLC

NET

series can also be ordered with Profinet-DP

interface

and integrated switch. In this case, the TB2 connector integrated into the

instrument will present two RJ45 Ethernet ports, allowing cascade connection of

devices.

The connection should be carried out on the TB2 connector as shown in the

following table:

Table 11. Table connections to Profinet

Fieldbus

Pin connector RJ45 on DLC

NET

Pin connector RJ45 bus

Description

Wire

TB2-1

Tx+

White-Orange

TB2-2

Tx -

Orange

TB2-3

Rx +

White-Green

TB2-6

Rx -

Green

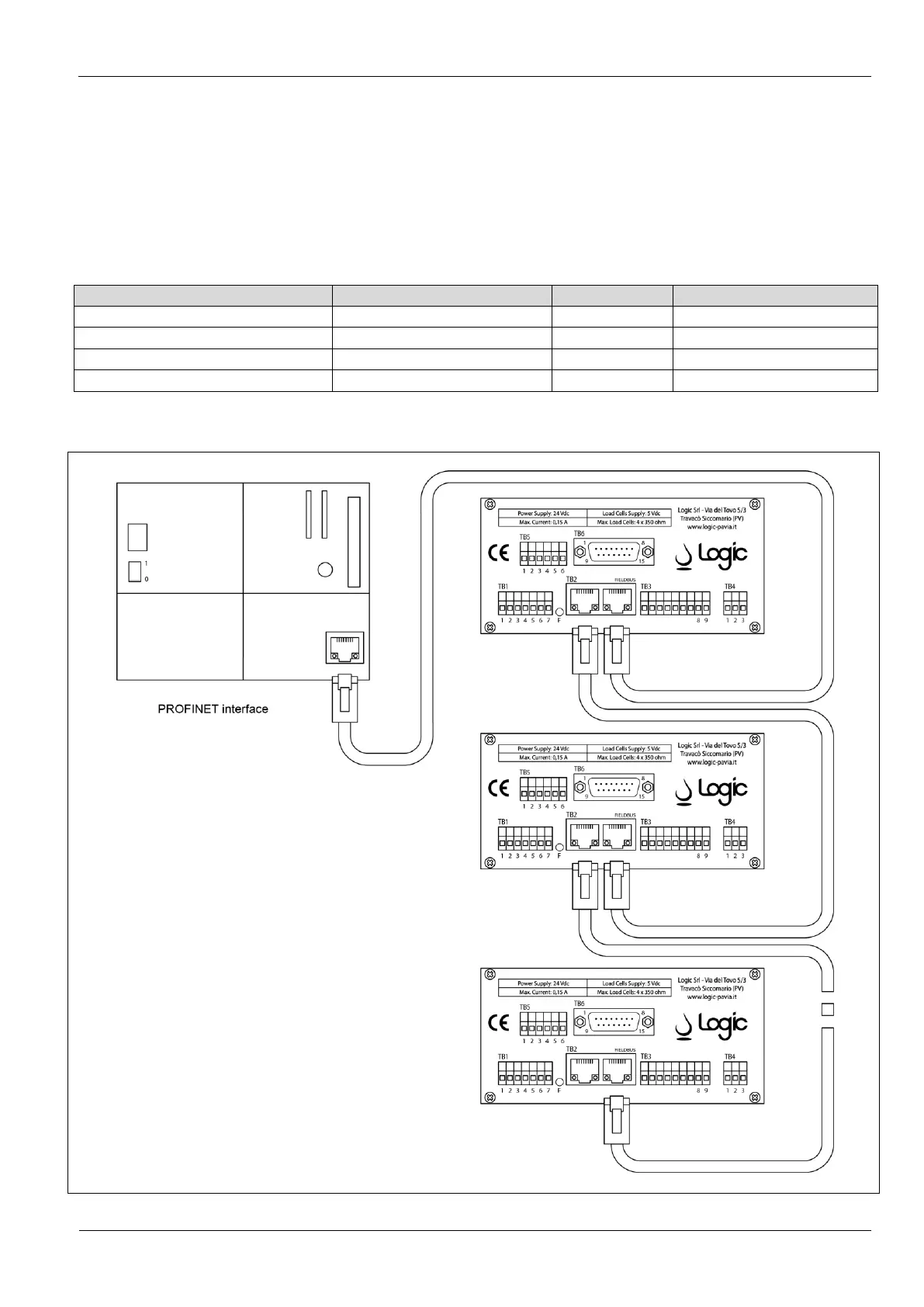

Figure 19. Instrument connection to Profinet

Fieldbus
