USE AND MAINTENANCE MANUAL – DLC
NET
Series
LOGIC S.r.l. - M0145Db.docx
Mod. L0006A01 of 30/05/2016
3.4.2 Power supply
connection
Make connections to TB4 terminal to supply power to the instrument according to
the following table:
Table 3. Power supply connection
Use cables with maximum cross-section 1,5mm
2
.
It recommends the use of power supplies with standard current limitation
(eg.: 24V / 1A with Icc 1,2 A). With power supplies provided with intervention
at short circuit type “Fold Back" or similar are possible problems. The
instrument in question, in fact, absorb a strong current at power for a limited
time (about 4 A for 10 ms).

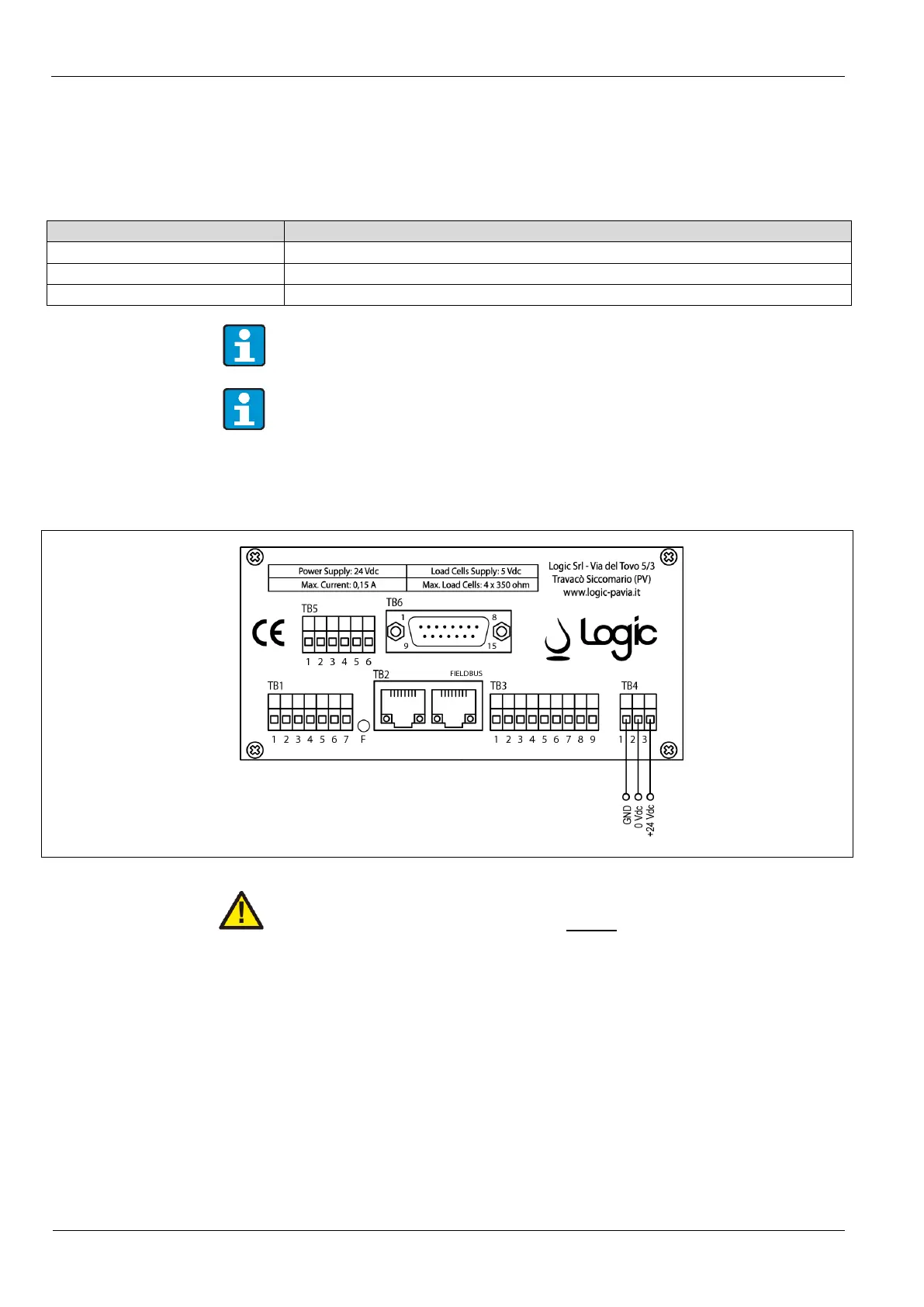

Figure 10. Power supply connection
If the instrument outputs are connected to the dosage of components by
solenoid valves and pumps, it is always necessary to unpower the
instrument in case long times without supervision from operators, in order
to prevent possible uncontrolled spills.
