3.7 Fieldbus connection

3.7.1 Profibus-DP

The standard version of the DLC

NET

series instruments are equipped with

communication port Fieldbus Profibus-DP

. The connection should be carried out

on the TB2 connector as shown in the following table:

Table 10. Table connections to Profibus-DP

Fieldbus

Pin connector Profibus-DP on DLC

NET

Terminal connector Profibus-DP

Description

Wire

TB2-3

Tx/Rx +

Green

TB2-8

Tx/Rx -

Red

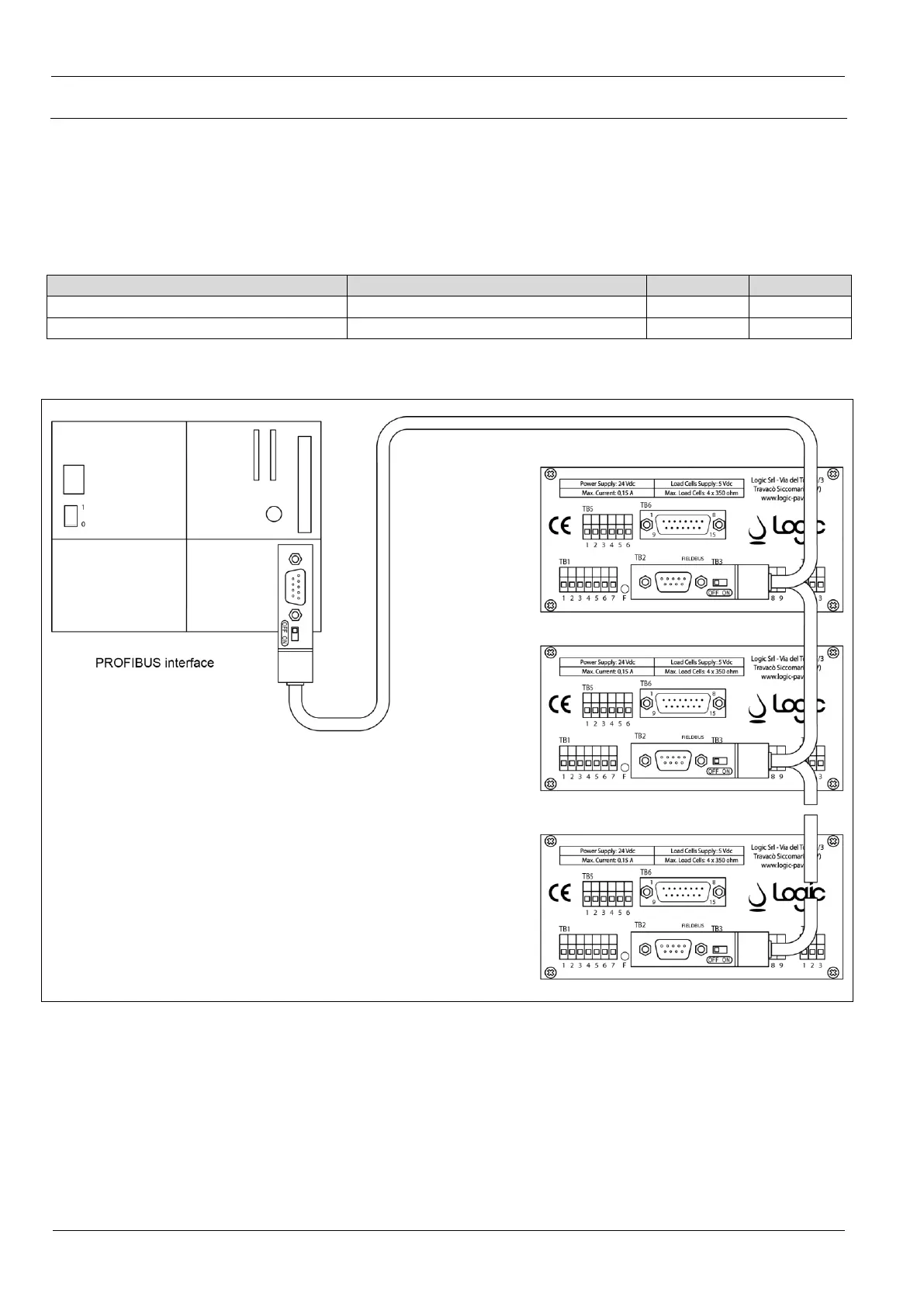

Figure 18. Instrument connection to Profibus-DP

Fieldbus

Note how the termination on the connector is active on the last Profibus-DP

node.
