USE AND MAINTENANCE MANUAL – DLC

NET

Series

Installation

LOGIC S.r.l. - M0145Db.docx

Mod. L0006A01 of 30/05/2016

Page 37 of 78

Table 20. Connection for parallel interface type NPN

Pin on DLC

NET

Description

TB6-1

0 Vdc

TB6-2

Out 1 (+24 Vdc)

TB6-10

Out 2 (+24 Vdc)

TB6-3

Out 3 (+24 Vdc)

TB6-11

Out 4 (+24 Vdc)

TB6-4

Out 5 (+24 Vdc)

TB6-12

Out 6 (+24 Vdc)

TB6-5

Out 7 (+24 Vdc)

TB6-13

Out 8 (+24 Vdc)

TB6-8

0 Vdc

TB6-15

Byte Select input (+24Vdc)

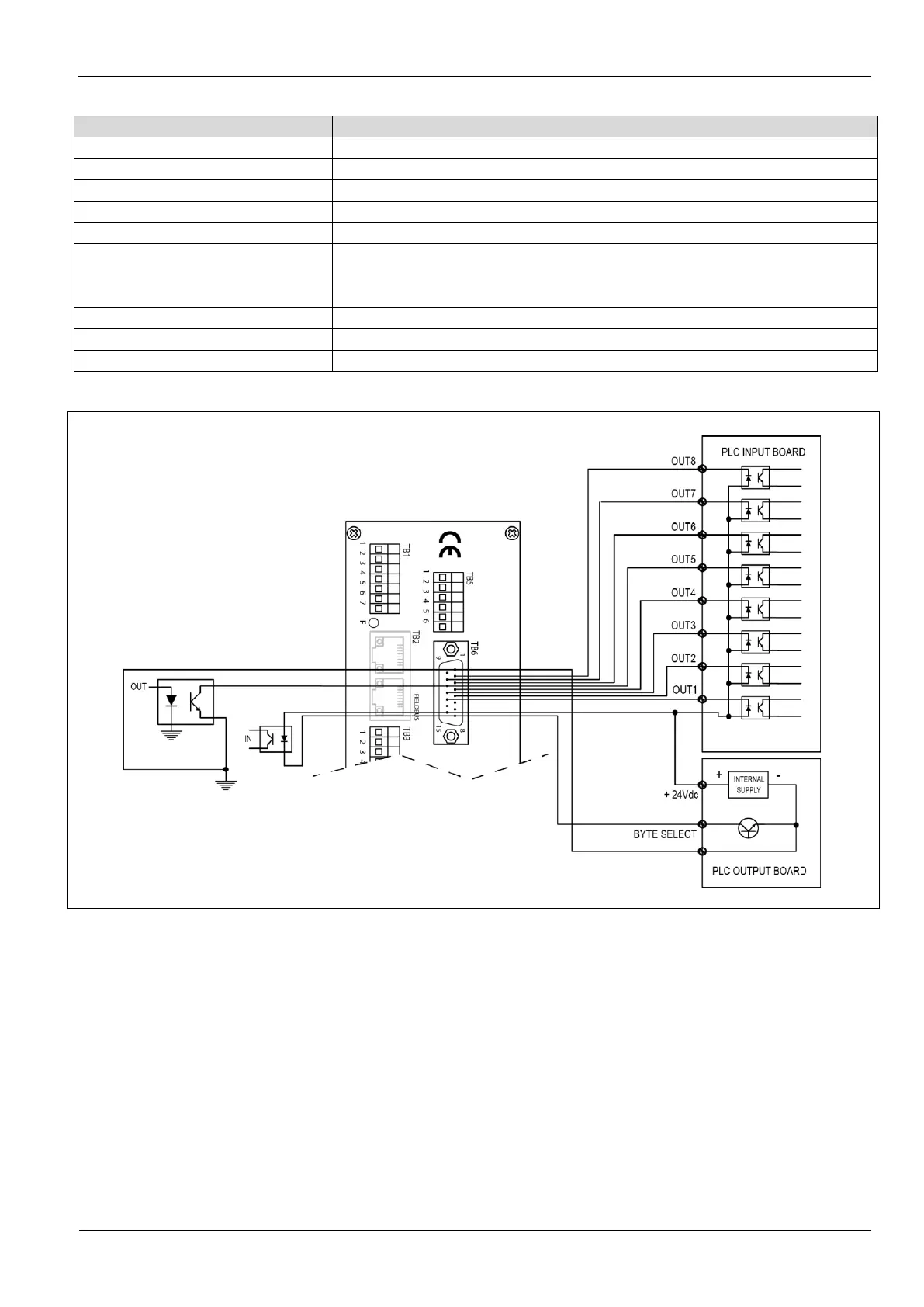

Figure 28. Connection for parallel interface type NPN
