USE AND MAINTENANCE MANUAL – DLC

NET

Series

Installation

LOGIC S.r.l. - M0145Db.docx

Mod. L0006A01 of 30/05/2016

Page 36 of 78

3.10.2 Connection for

parallel interface type

PNP

The connection of the outputs in PNP mode is described in the following table and

figure. Expansion board –EB is needed for this purpose.

Table 19. Connection for parallel interface type PNP

Pin on DLC

NET

Description

TB6-1

0 Vdc

TB6-2

Out 1 (+24 Vdc)

TB6-10

Out 2 (+24 Vdc)

TB6-3

Out 3 (+24 Vdc)

TB6-11

Out 4 (+24 Vdc)

TB6-4

Out 5 (+24 Vdc)

TB6-12

Out 6 (+24 Vdc)

TB6-5

Out 7 (+24 Vdc)

TB6-13

Out 8 (+24 Vdc)

TB6-15

Byte Select input (+24Vdc)

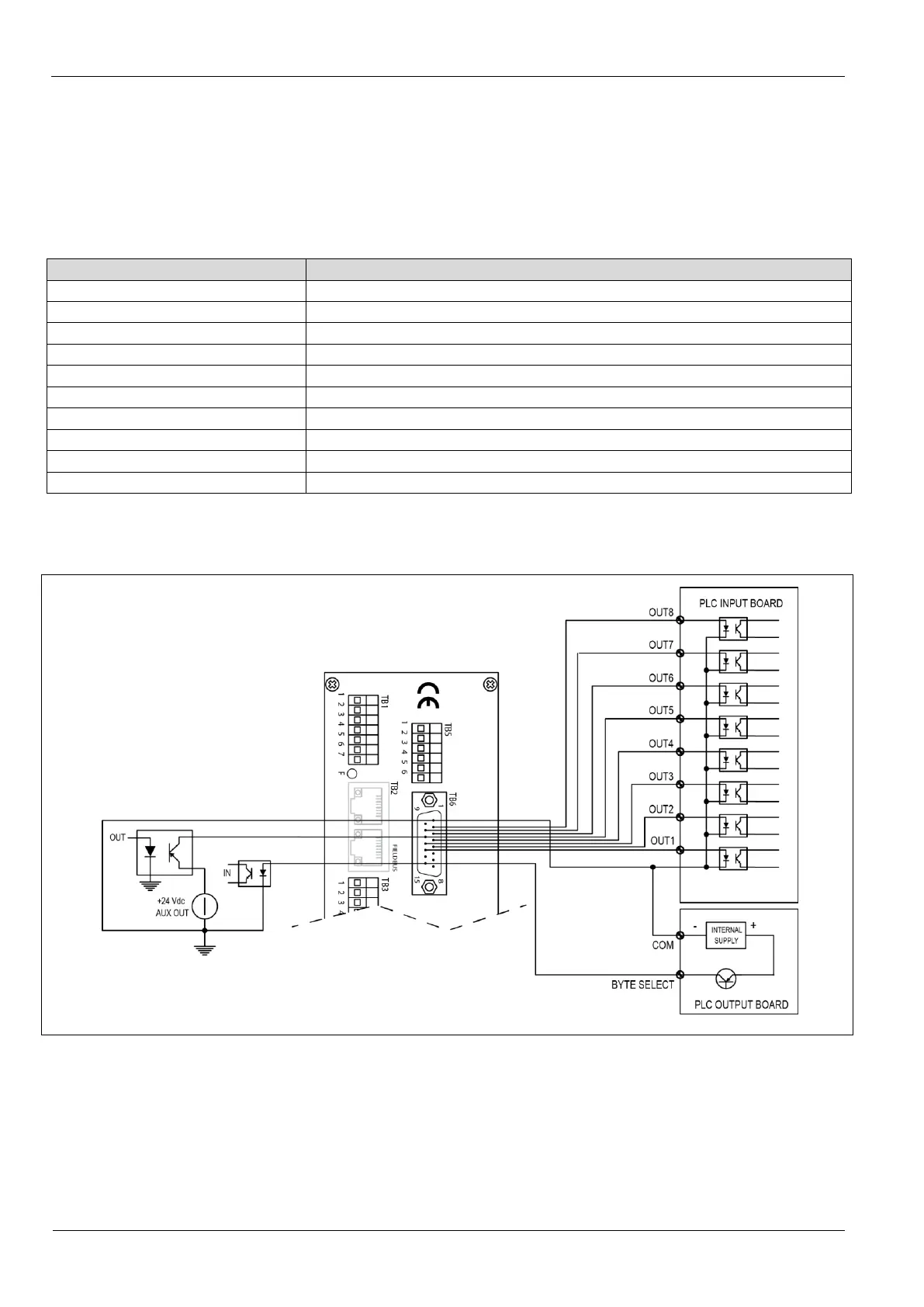

Figure 27. Connection for parallel interface type PNP

3.10.3 Connection for

parallel interface type

NPN

The connection of the outputs in NPN mode is described in the following table and

figure. Expansion board –EB is needed for this purpose.
